CP60 and CP60 Plus Service Manual 6-43
Replacement Notes

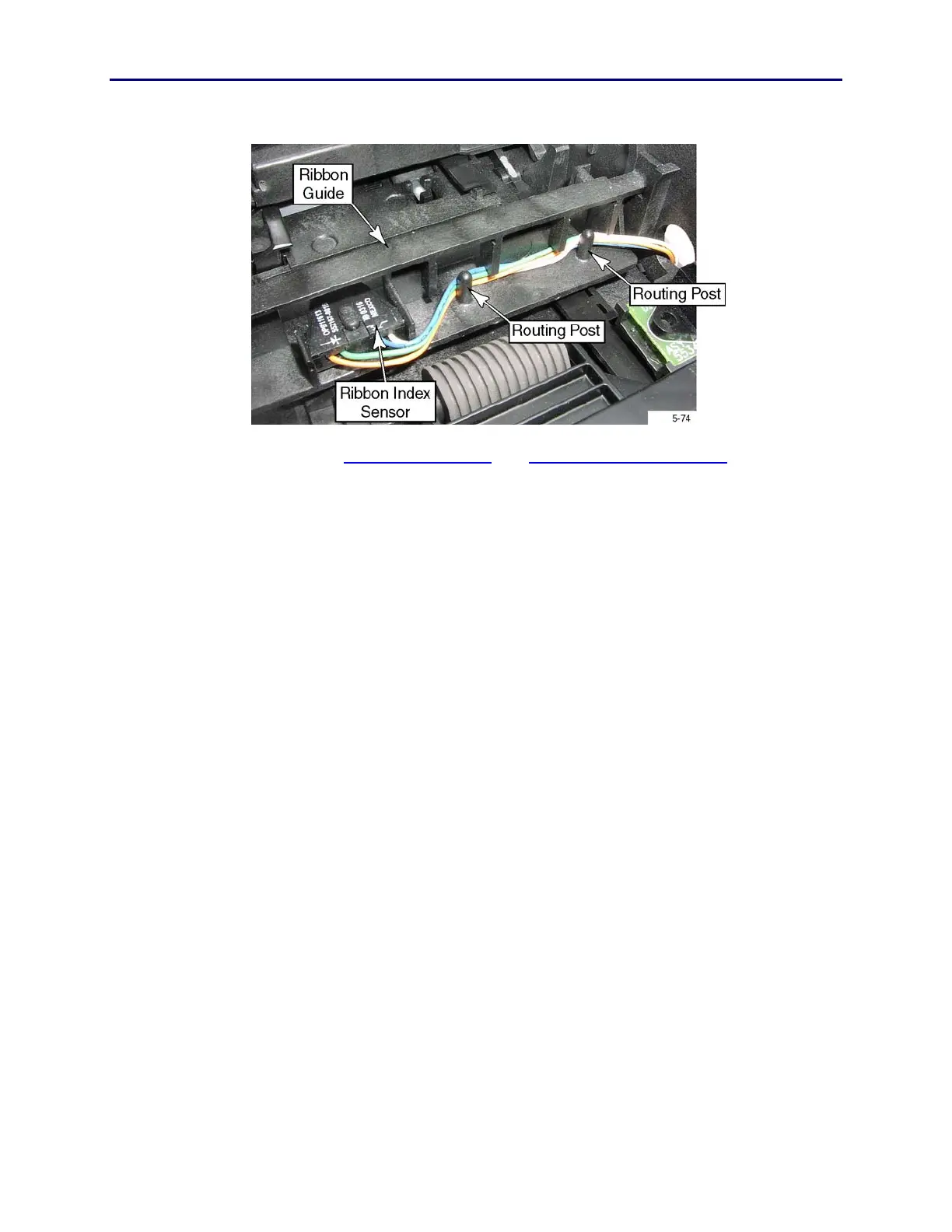

• Route the cable through the ribbon guide as shown below.
• Refer to the Front Wire Routing and Functional Block Diagram for
replacement details.
• Use the sensor display in Diagnostics to verify the sensor changes state as the
ribbon is advanced.
