6-74 Removal and Replacement

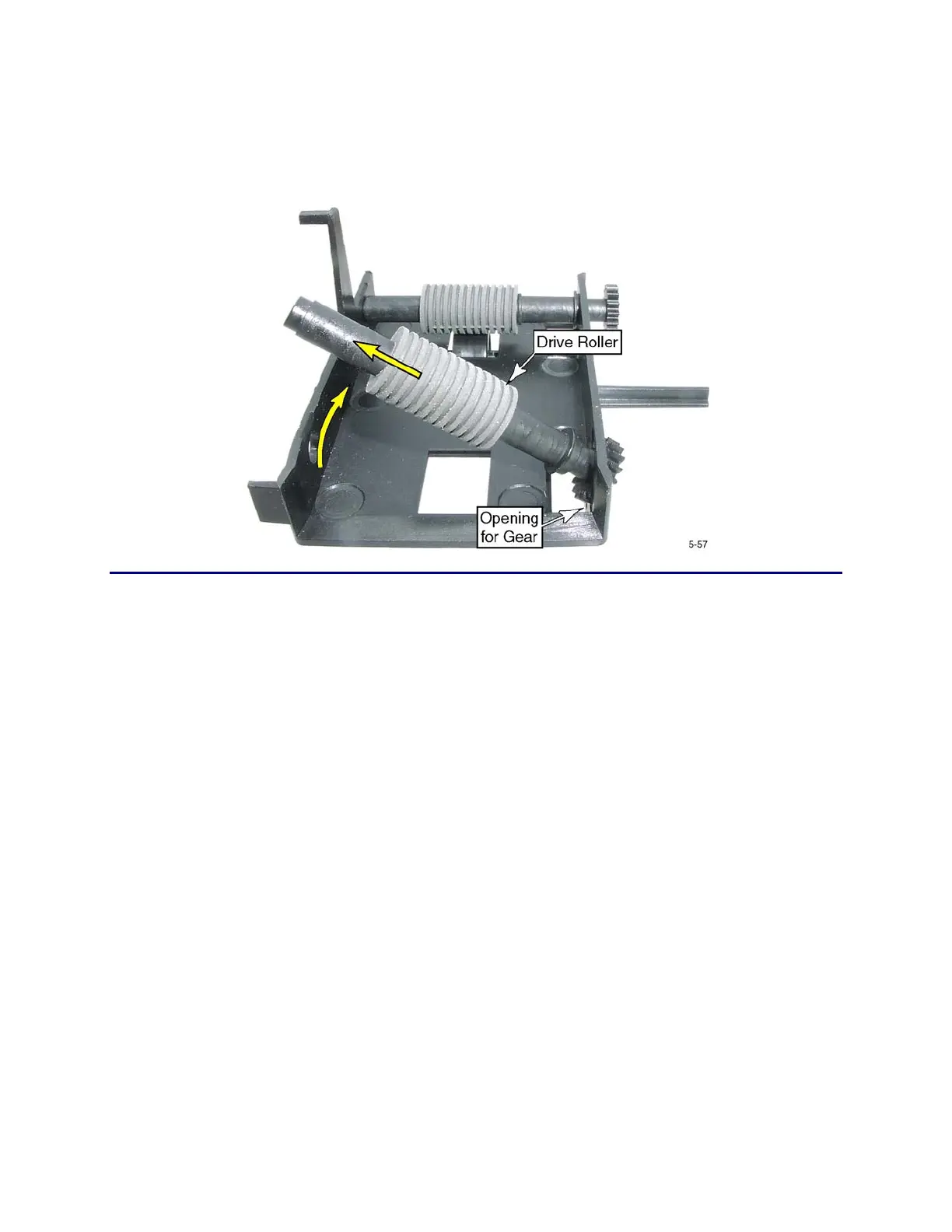

14. To remove the drive rollers:
A. Spread the non-gear sidewall of the flipper and pull back on the roller.
B. Tilt the roller shaft up and withdraw the gear through the opening in the
sidewall.
Replacement Notes
The magnetic clutch will not fit into the opening if it is rotated incorrectly.
After replacing the flipper assembly in the duplex module, rotate the flipper
until the spring clutch engages the stop tabs (clockwise as viewed from the
motor).
If you rotate the flipper counterclockwise you can feel the drag of the
spring clutch, but it will not engage the stop tabs.
When the flipper is rotated clockwise, the spring clutch will snap over the
stop tabs and will no longer turn in that direction.
Verify that the clutch is properly engaged. When properly engaged, the
flipper will rotate in only one direction.
If necessary, adjust the duplex home offset.
Print several test cards to verify that the duplex assembly is functioning
properly.
