Chapter 4 -Operational Procedures-
130
AS-410M Auto Slide Preparation System
4-10-2 Switching the Modes between the Normal Operating and the Overnight Operating
Once the section operation is completed, the system automatically changes the mode to
OVERNIGHT mode after a set time. If the OFF TIME is enabled, the system shuts the power down.
The switching timing is preset for 120 min by the manufacturer. (Settable time range: １～600 min)
＜NORMAL Operating Mode＞
Power is supplied to each part of the device and it is possible to
create sections. If Section Operation is started from the
OVERNIGHT Operation Mode, the
system automatically switches the mode.
＜OVERNIGHT Operating Mode＞
Once the sectioning operation is completed, this mode turns
off the power for the stretching stage, cooling unit, and
winding motor after a set amount of time.
When SLIDE PREPARATION is selected from the MAIN screen, the System will default to the Normal
Operating Mode. On other screens, select NORMAL to switch over to the Normal Operating Mode.
＜OFF TIMER for the MAIN POWER＞
Once the sectioning operation is completed, this function shuts
down the main power automatically after a set amount of time,
which is the same timing as the OVERNIGHT operation.
If there were errors such as slide shortage, blockage by slide glasses, or shortage of humidifying
water during operation, error window appears on the MAIN screen when the main power is turned on
at the next operation. Since the OFF TIMER is turned off once it is executed, when operating with
the OFF TIMER, enable the function each time.

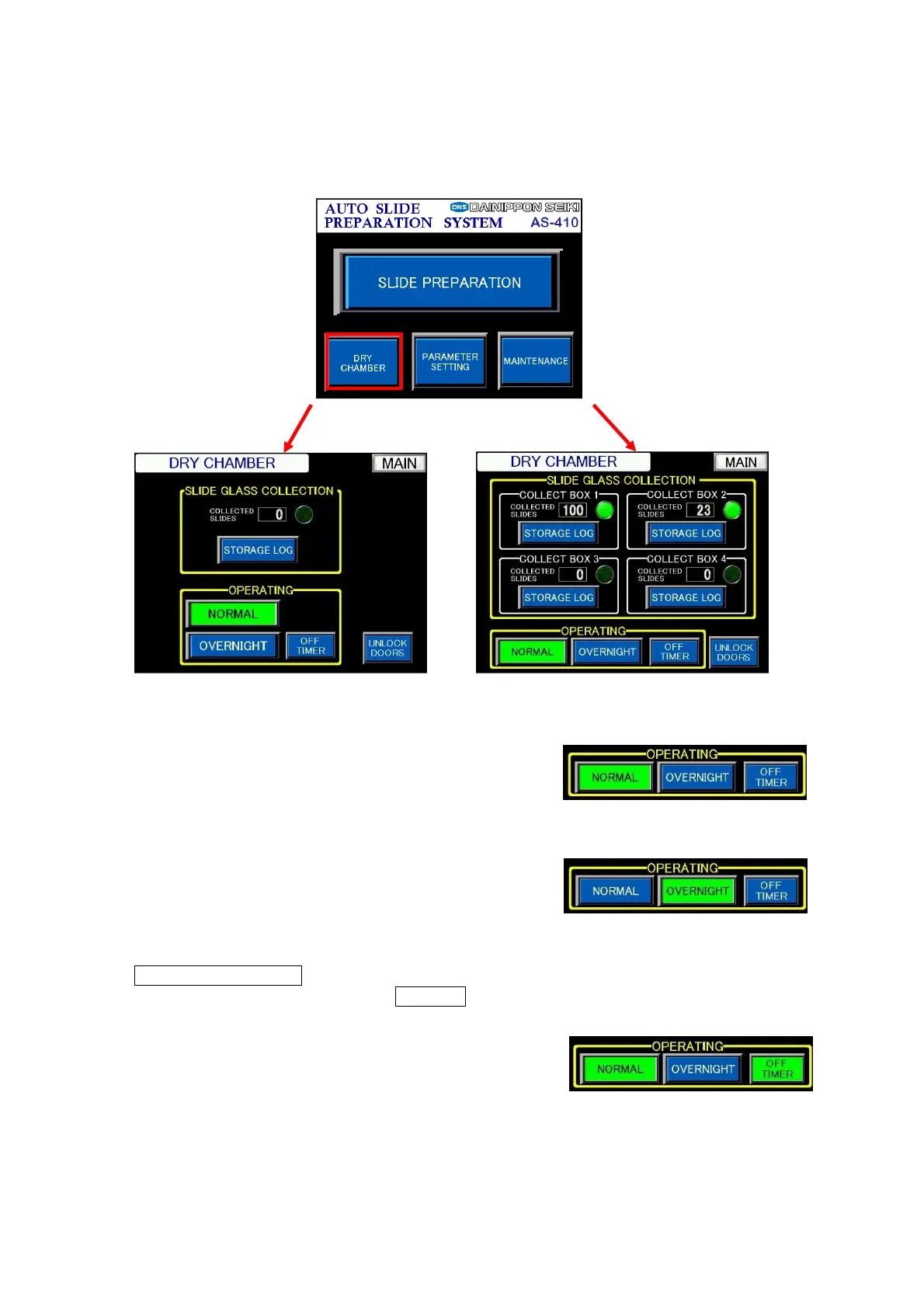

OVERNIGHT Operating Mode enabled
NORMAL Operating Mode enabled
Dry Chamber screen
(System with DU-400)
Dry Chamber screen
(System with DU-100)
MAIN screen
OFF TIMER enabled
To Next Page
