AS-410M Auto Slide Preparation System
4-18-3 Sample feeding

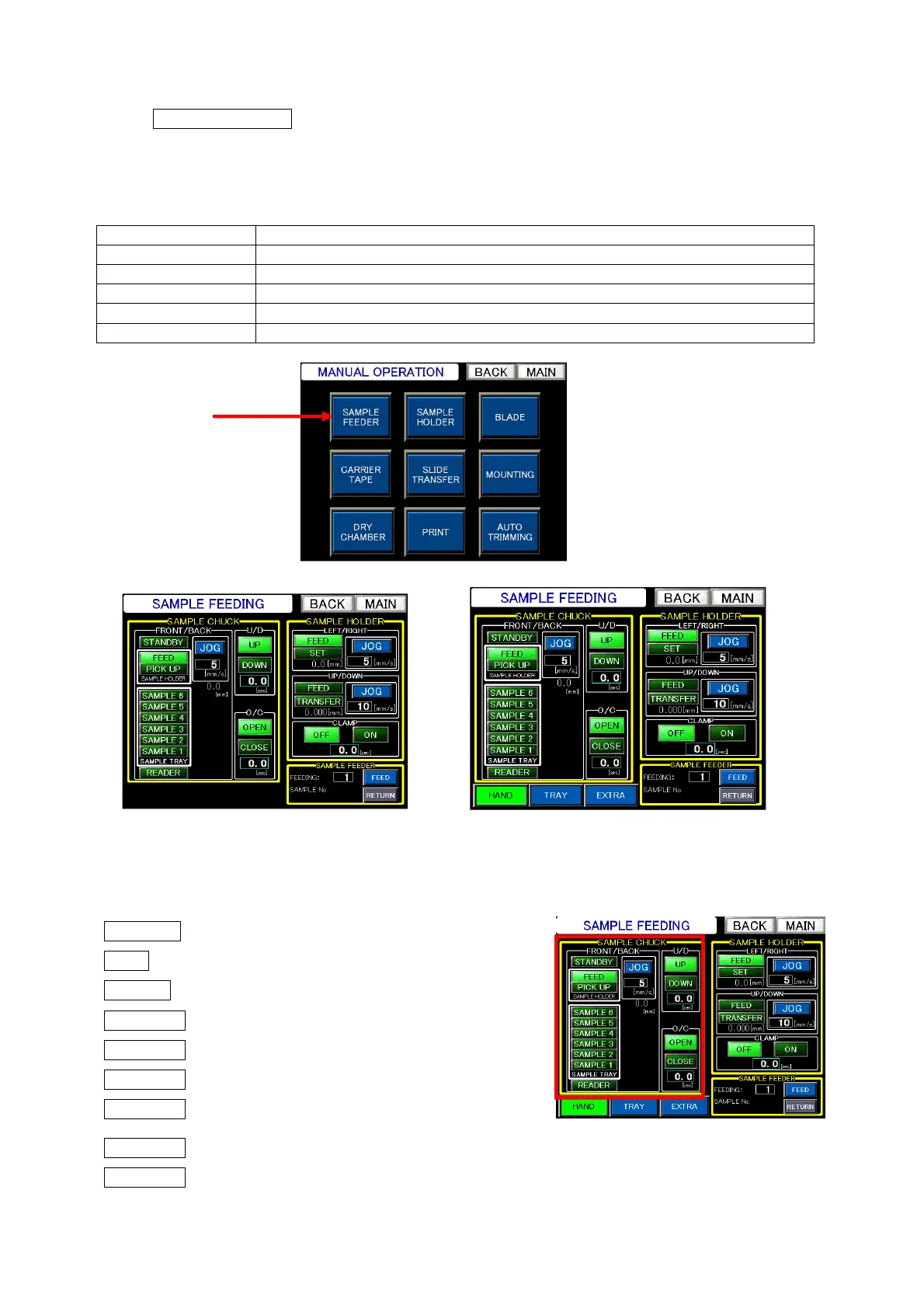

Touch SAMPLE FEEDER on the “Manual operation” screen to open the “Sample feeding” screen.
In this mode, the following operations are available: Sample Hand FWD/BWD (Y-axial) and UP/DOWN
(Z-axial); Sample Hand OPEN/CLOSE; Sample Holder UP/DOWN (Z-axial) and LEFT/RIGHT (X-
axial); CLAMP/UNCLAMP; and sample supply.
Operations available in this mode
Item Descriptions of operation
Sample Hand FWD/BWD (Y-axial), UP/DOWN (Z-axial), and OPEN/CLOSE
Sample Holder UP/DOWN (Z-axial) and LEFT/RIGHT (X-axial)
Sample Trays LEFT/RIGHT (Y-axial)
Clamp CLAMP/UNCLAMP
Sample Feeding Attach/detach a user-picked sample to/from Sample Holder.
< Chuck operations >
①
FRONT/BACK
STANDBY: Moves the Sample Hand to the standby position.
FEED: Moves the Sample Hand to the feed position.
PICK UP: Moves the Sample Hand to the pick-up position.
SAMPLE 1: Moves the Sample Hand to sample-tray Line 1.
SAMPLE 2: Moves the Sample Hand to sample-tray Line 2.
SAMPLE 3: Moves the Sample Hand to sample-tray Line 3.
SAMPLE 4: Moves the Sample Hand to sample-tray Line 4
SAMPLE 5: Moves the Sample Hand to sample-tray Line 5.
SAMPLE 6: Moves the Sample Hand to sample-tray Line 6.
Sample Feeding operation screen
Sample feeding operation screen
(System with BS-24/BS-96)
Manual operation screen
Sample feeding operation screen
(Chuck operations)
