Chapter 2 -Installation
44
AS-410M Auto Slide Preparation System
2-4 Grounding
Always connect each power plug to a grounded three-prong outlet.
2-5 Air tube connection
This System has an air tube connector on the back. Always supply the System with compressed air
at the specified pressure of 0.7 MPa (100psi) during start and operation. Connect the compressor tube
securely to the air tube connector (AIR IN).
Always connect each power plug to a grounded three-prong outlet to prevent the risk of
electric shock from the leak.

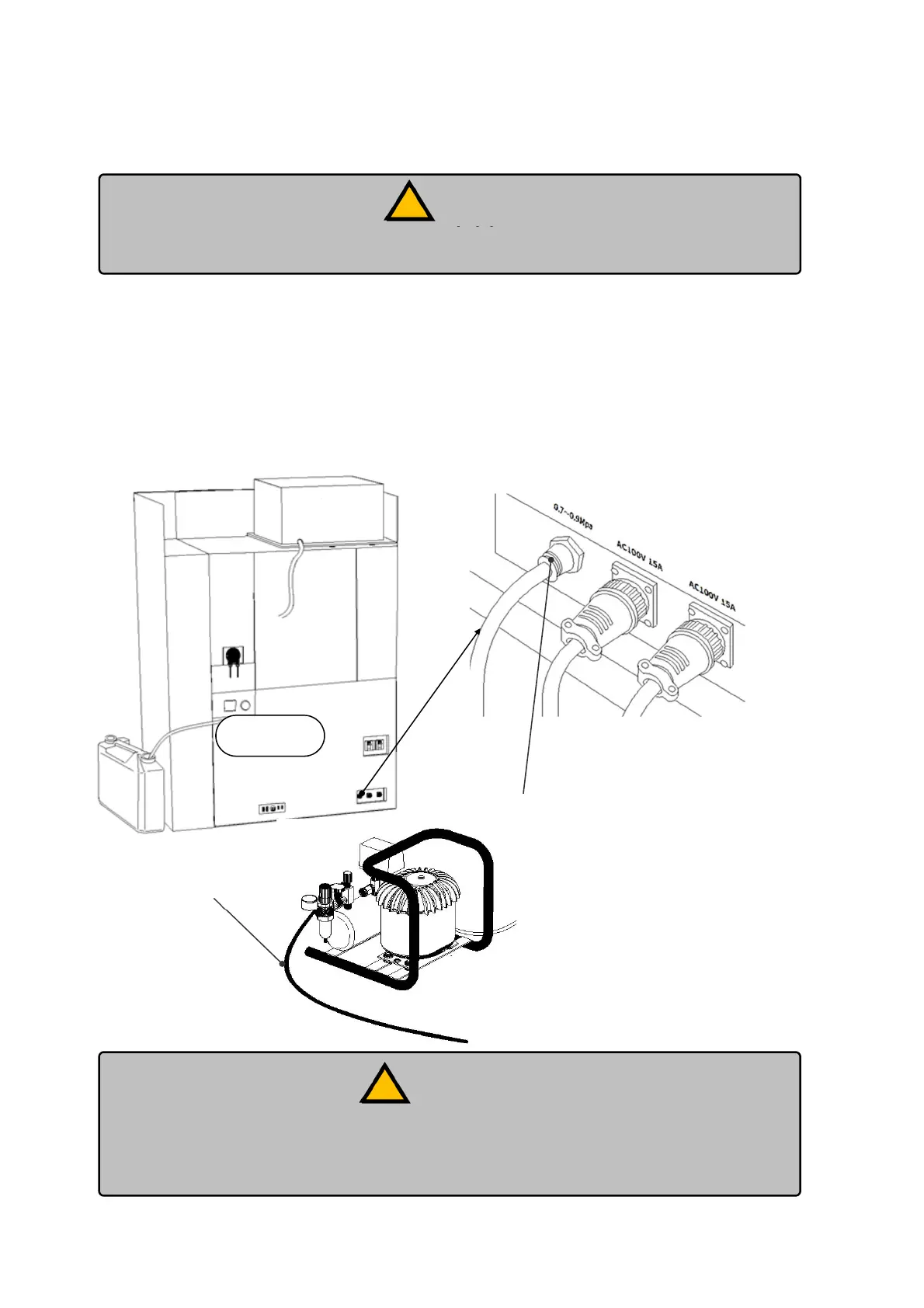

Air tube
Standalone compressor
(Example)
Rear side
Air tube connector
(AIR IN)
●
Supply this System with compressed air with a pressure of 0.7 MPa.
Never supply compressed air outside the specified pressure.
●
Do not supply any gas other than compressed air.
！ Warning
！ Warning
