Chapter 2 -Installation
42
AS-410M Auto Slide Preparation System
2-3 Power requirements and power cable connection
This System requires two power sources, one for the Main Unit (including optional components) and
the other for the Cooling unit. Ensure that, with single-phase 100 VAC (50/60 Hz, voltage fluctuation range
between 90 to 110V), the power supply for each of the Main Unit (CNAC1) and the Cooling unit (CNAC2)
has a current capacity of 15A or more and that total amperage shall be30A or more.
This System has two power cord connectors on the rear side, one (CNAC1) for the Main Unit and the
other (CNAC2) for the Cooling unit. Follow the steps below to connect the supplied power cords to the
corresponding connectors:
① Check the power cord plugs for correct orientation and connect them to the corresponding
connectors on the back of the Main Unit.

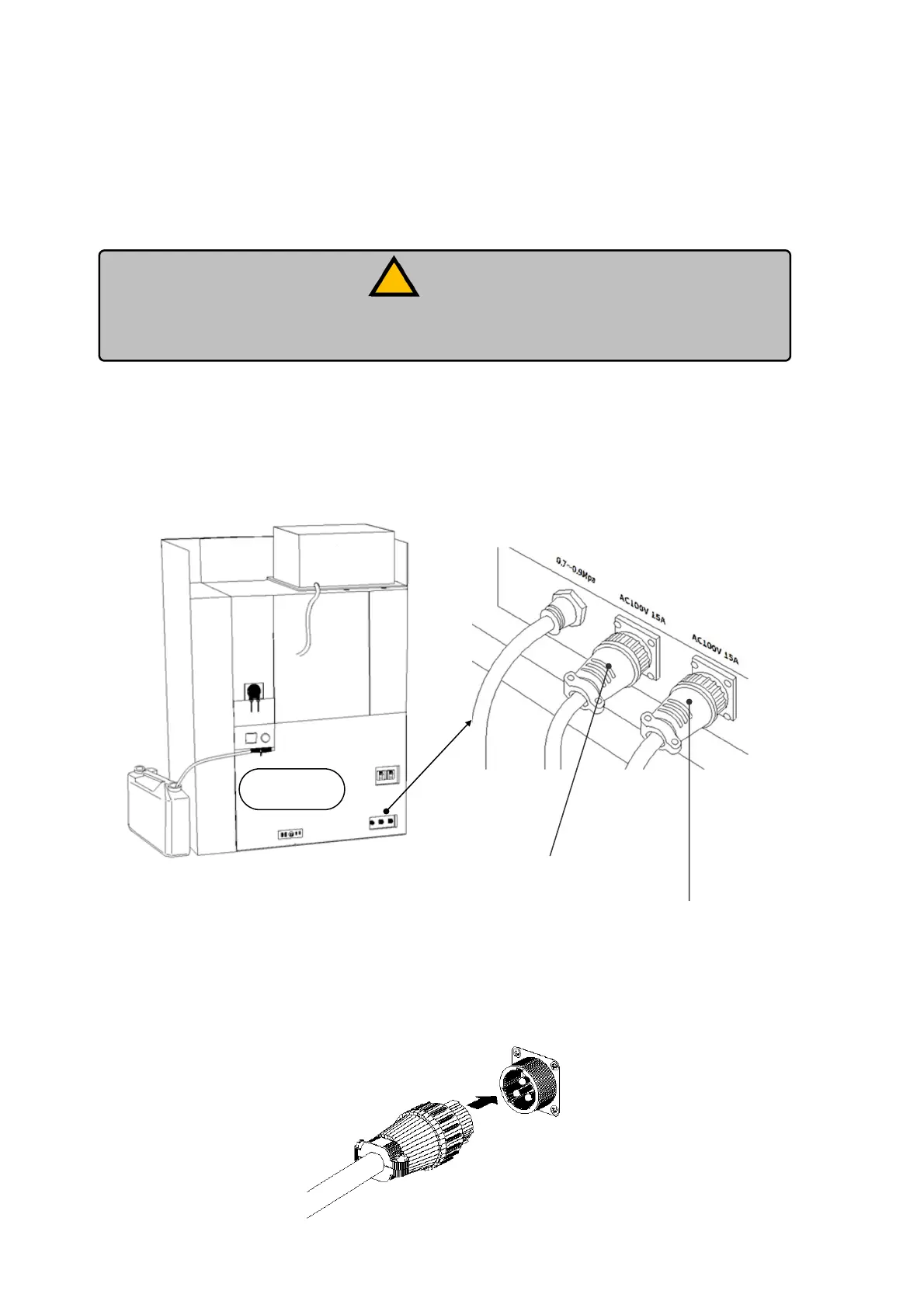

Rear side
Power cord connector for Main Unit
(CNAC1) with current rating of 15
A
Power cord connector for Cooling unit
(CNAC2) with current rating of 15 A
This System is likely to be used with other electrical apparatuses. Prevent power
capacity shortage. Provide a dedicated outlet for each apparatus.
