DNS AS-410M User Manual

Chapter 4 - Operational Procedures -
AS-410M Auto Slide Preparation System 157
READER (* System with Sample barcode reader and
Printer unit): Moves the Sample Hand to the
Sample barcode reader unit.
Touch JOG to display the UP/DN button on the screen.
Touch and hold to move the Sample Hand backward.
Touch and hold to move the Sample Hand forward.
The present position is displayed real-time.
②
UP/DOWN
UP: Moves the Sample Hand UP.
DOWN: Moves the Sample Hand DOWN.
③
OPEN/CLOSE
OPEN: Opens the Sample Hand.
CLOSE: Closes the Sample Hand.
< Sample Holder operations >
①
LEFT/RIGHT
FEED: Moves the Sample Holder to the feed positions.
SET: Moves the Sample Holder to the set positions.
JOG: Displays the L/R Jog Controls on the screen.
Touch and hold to move the Sample Holder leftward.
Touch and hold to move the Sample Holder rightward.
The present position is displayed real-time.
②
UP/DOWN
FEED: Moves the Sample Holder UP/DOWN.
JOG: Displays the UP/DOWN Jog controls on the screen.
Touch and hold to move the Sample Holder upward.
Touch and hold to move the Sample Holder downward.
The present position is displayed real-time.
③
CLAMP/UNCLAMP
ON: Moves the Sample Holder Clamp downward to secure (fix) the Sample Holder.
OFF: Moves the Sample Holder Clamp upward to release the Sample Holder.

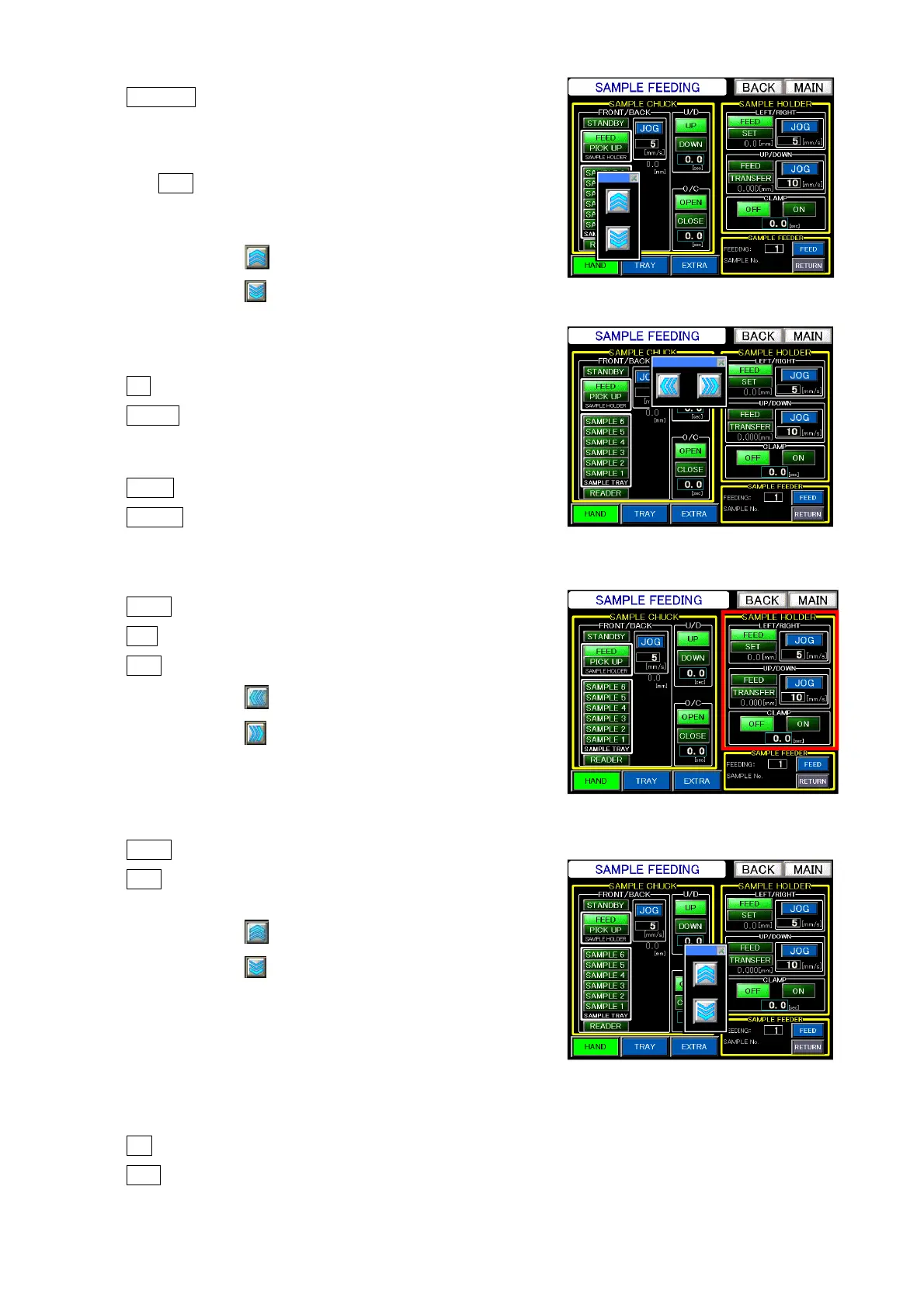

Sample
f
eeding
o
peration screen with
Chuck UP/DOWN Jog Controls
Sample
f
eeding
o
peration screen with
Sample holder LEFT/RIGHT Jog controls
Sample feeding opera
tion screen
(
Sample holder
)
Sample
f
eeding
o
peration screen with
holder UP/DOWN Jog Controls
