Chapter 4 -Operational Procedures-
166
AS-410M Auto Slide Preparation System
< Tape Feeding >
① Tape Feeding
FEED: Touch and hold to run the tape forward.
BACK: Touch and hold to run the tape backward.
② Take-up reel (DIRECTION) ON/OFF
FWD: Turns the take-up reel motor forward.
BWD: Turns the take-up reel motor backward (rewind).
③ Tension indicator
The current take-up reel motor torque appears in
16 levels. The torque increases as the level increases.
④ MEASUREMENT: Measures the remaining length and the
rewound length of the tape.
Tape Remaining: Indicates the remaining length of the tape in section unit.
Tape rewound length: Indicates the rewound length of the tape.
< Guide bar >
STANDBY: Moves the guide bar to the standby position.
A, B, and C (90°): Moves the guide bar to the corresponding
position (Position A, B, or C).
A and B (60°): Moves the guide bar to the corresponding
position (Position A or B).
STEP: Displays the UP/DN and L/R Jog controls on the screen.
Touch to shift the guide bar upward;
Touch to shift the guide bar downward;
Touch to shift the guide bar leftward; and
Touch to shift the guide bar rightward
by the amount of the respective indicated values.
JOG: Displays the UP/DN and L/R Jog controls on the screen.
Touch and hold to shift the guide bar upward;
Touch and hold to shift the guide bar downward;
Touch and hold to shift the guide bar leftward; and
Touch and hold to shift the guide bar rightward.
SAVE: Registers the current position to the selected position
(indicated on the Register button).

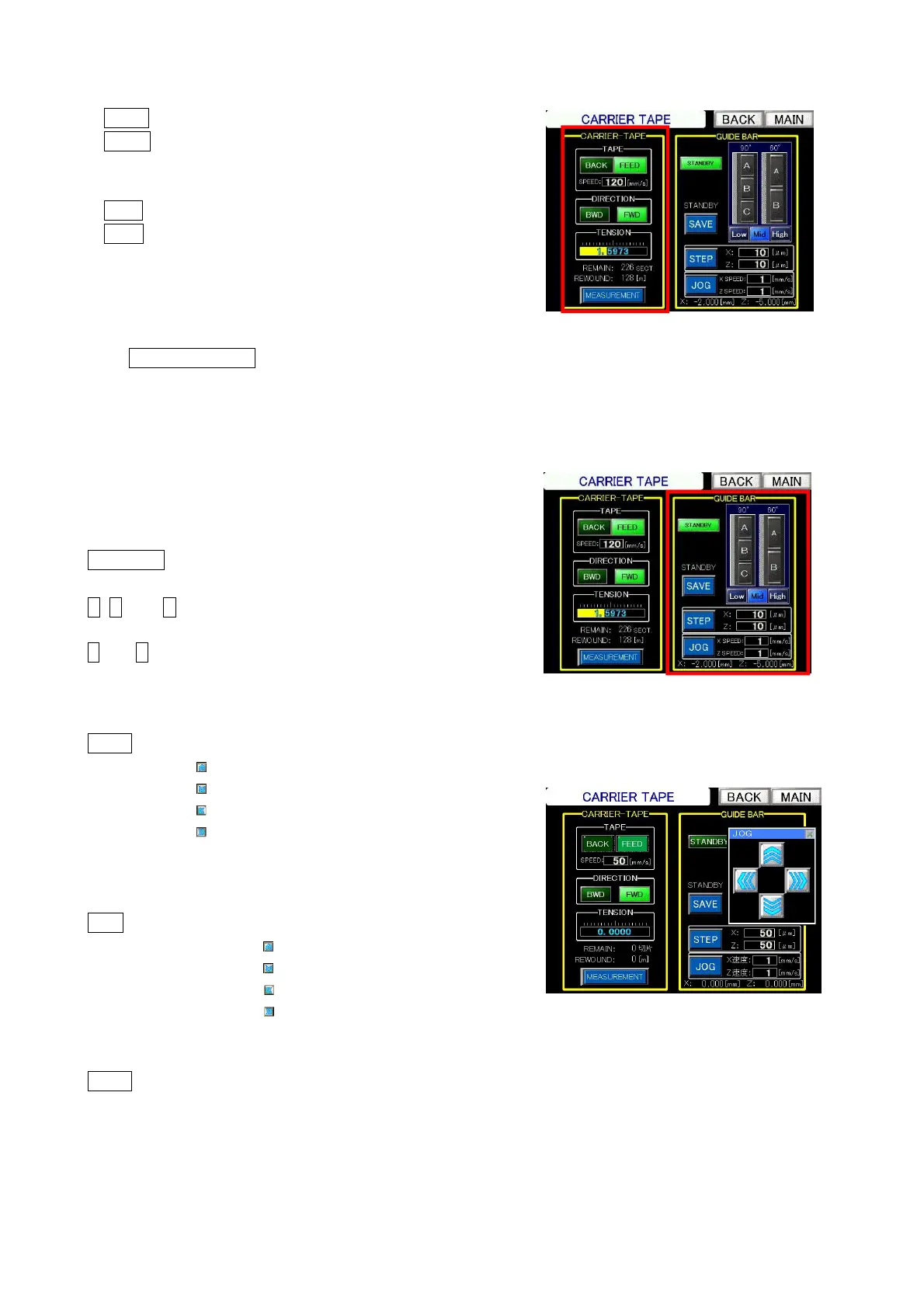

Carrier tape screen
(JOG controls)
Tape screen
(Tape Feeding)
Carrier tape screen
(Guide bar)
To Next Page
