AS-410M Auto Slide Preparation System
< Slide transfer arm >
① FWD/BWD
MOUNTING: Moves the Slide Transfer Arm to the stick-to-slide
position.
MOUNTING APPROACH: Moves the Slide Transfer Arm to
make way for stick-to-slide operation.
PUSHER APPROACH: Moves the Slide Transfer Arm to the feed
approach position.
SLIDE PUSHER: Moves the Slide Transfer Arm to the feed-slide
position.
EXTENSION APPROACH: Moves the Slide Transfer Arm to the
pre-stretching approach position.
PRINT: Moves the Slide Transfer Arm to the printing position.
PRINT APPROACH: Moves the Slide Transfer Arm to make way for printing operation.
② UP/DOWN
UP: Moves the Slide transfer arm to the UP position.
DOWN: Moves the Slide transfer arm to the DOWN position.
<Slide pusher>
PUSH: Moves the Slide feed pusher to the feed position (for
pushing slides out).
STANDBY: Moves the Slide feed pusher to the standby position
(returning to the home position operation)
< Extension arm >
R: Moves the stretching arm rightward.
(Moves a slide to the dry chamber)
L: Moves the stretching arm leftward.
(Replaces the slide back to the original position.)
< Slide cassettes >
Available only in Systems with the 400-slide feeding unit (SS).
Cassette 1: Move the slide cassette to the corresponding
position.

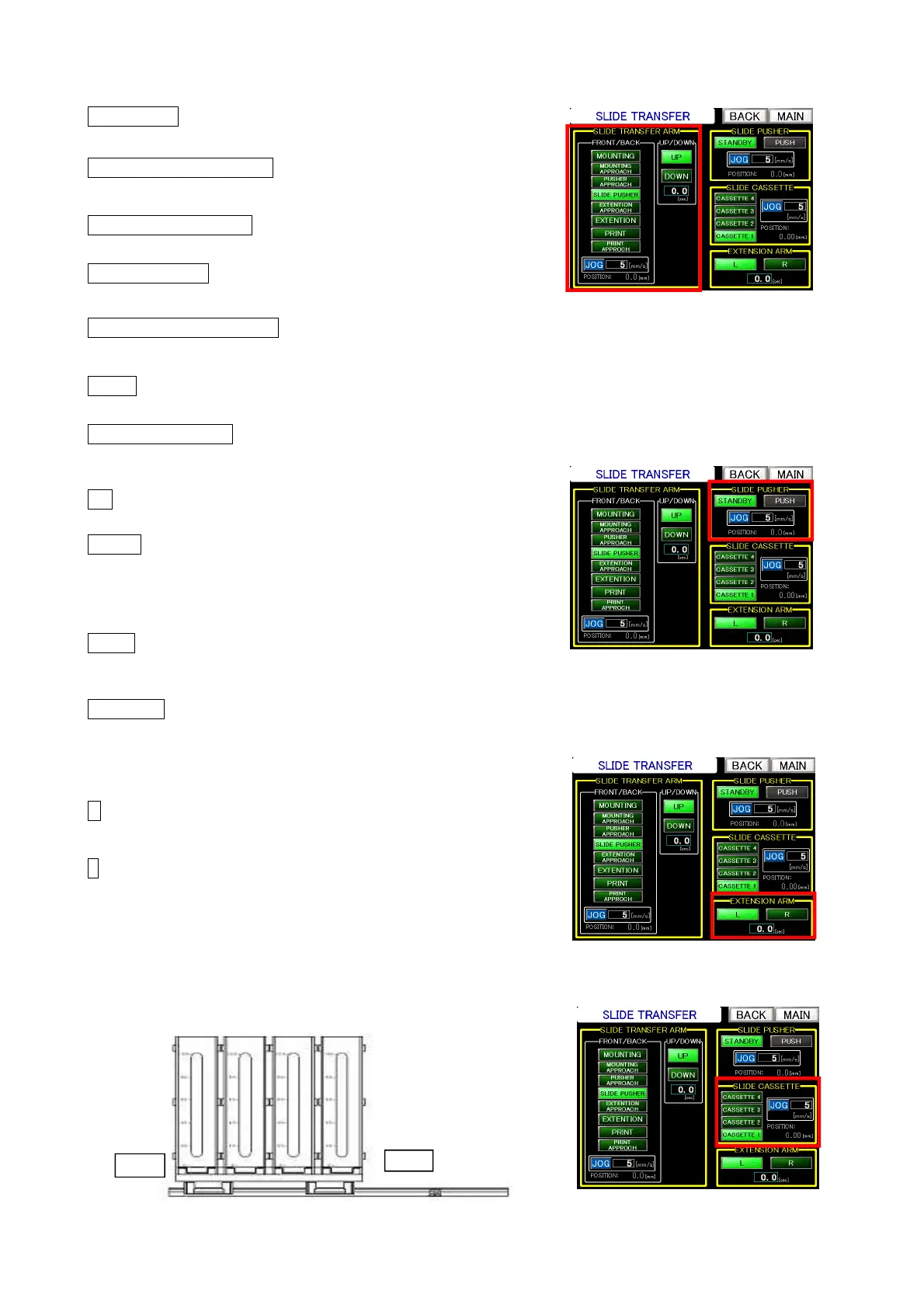

Slide transfer screen
(Slide transfer arm)
Slide transfer screen
(Stretching arm)
Slide transfer screen
(Slide cassette)
400-slide feeding unit
Slide transfer screen
(Slide pusher)
front
back
① ② ③ ④
