Chapter 1 - Overview -
30
AS-410M Auto Slide Preparation System
No.
Component No.
Component
10
Main power circuit breaker (Main Unit)
17
LAN port
11
Main power circuit breaker (Cooler)
18
Camera cable (USB)
* System with Auto Trimming
(Auto Trimming) function option
12
Power cord connector (Main Unit)
19
Camera cable (USB)
* System with Blade mark check option
13
Power cord connector (Cooler)
20
Cooling unit drain outlet (tubing)
14
Air tube connector (AIR IN)
21
Humidifying-water refill pump
15
RC232C serial port 2 (Blade mark check)
22
Humidifier drainage lever
16
RC232C serial port 1 (Auto Trimming)
23
Waste fluid tank

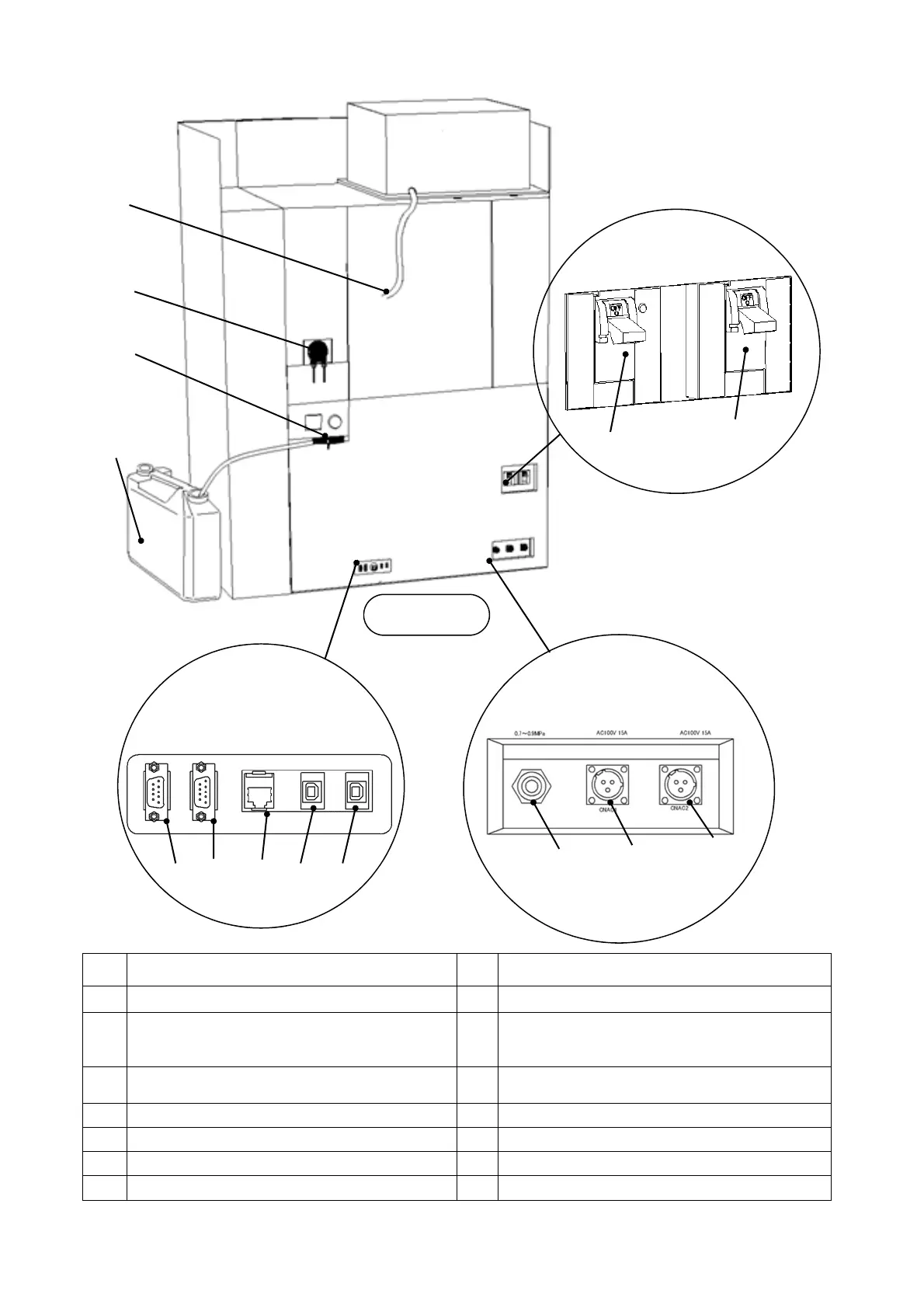

Rear side
１４
23
１２
１１
１３
１０
15
１7 １６
20
19 18
21
22
