8-4 Infinity Vista VF6
8 ECG AND HEART RATE
Positioning the Electrodes
Position the electrodes on the chest at locations that provide the clearest and most
informative electrocardiogram for each patient. The following table identifies each
lead wire and its associated color for the IEC 2 (AHA/US) and IEC 1 color schemes.
The following pictures show possible configurations of 3-, 5-, and 6-lead electrode
sets. Note that these configurations are examples only; final configuration must be
determined by a trained clinical personnel.

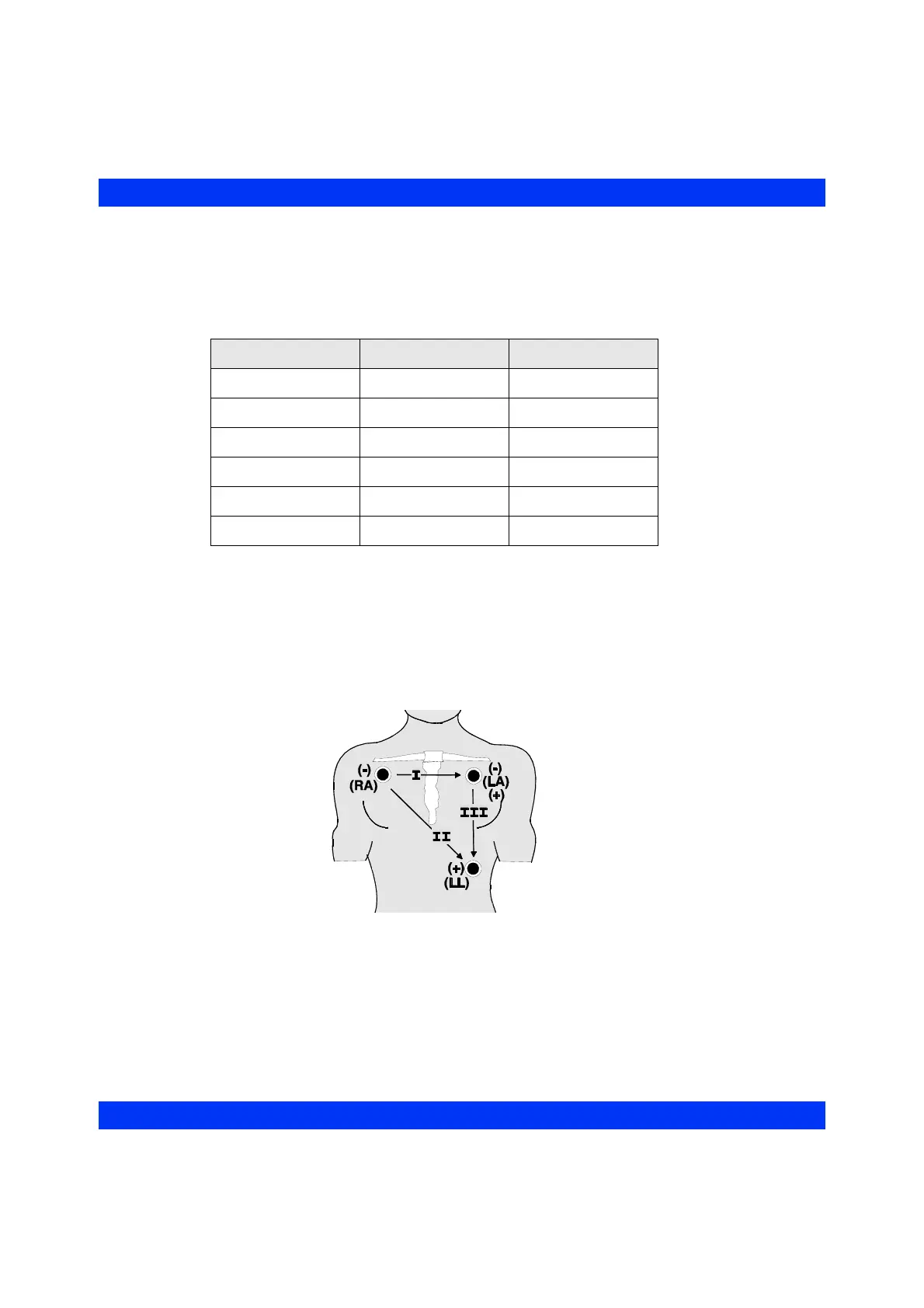

3-Lead Standard Configuration
Lead Wires IEC 2 (AHA/US) IEC 1
LA Black Yellow
LL Red Green
RA White Red
V Brown White
RL Green Black
V+ Gray and Brown Gray and White
