ECG MONITORING SETTINGS
VF6 Infinity Vista 8-11
Pulse Tone Source
You can select either ECG or SpO
2
as the pulse tone source. With ECG as the pulse
tone source, the tone’s pitch is constant (rather than modulated -- see the chapter Pulse
Oximetry) and a pulsating j symbol appears in the HR parameter box with each
detected heart beat.

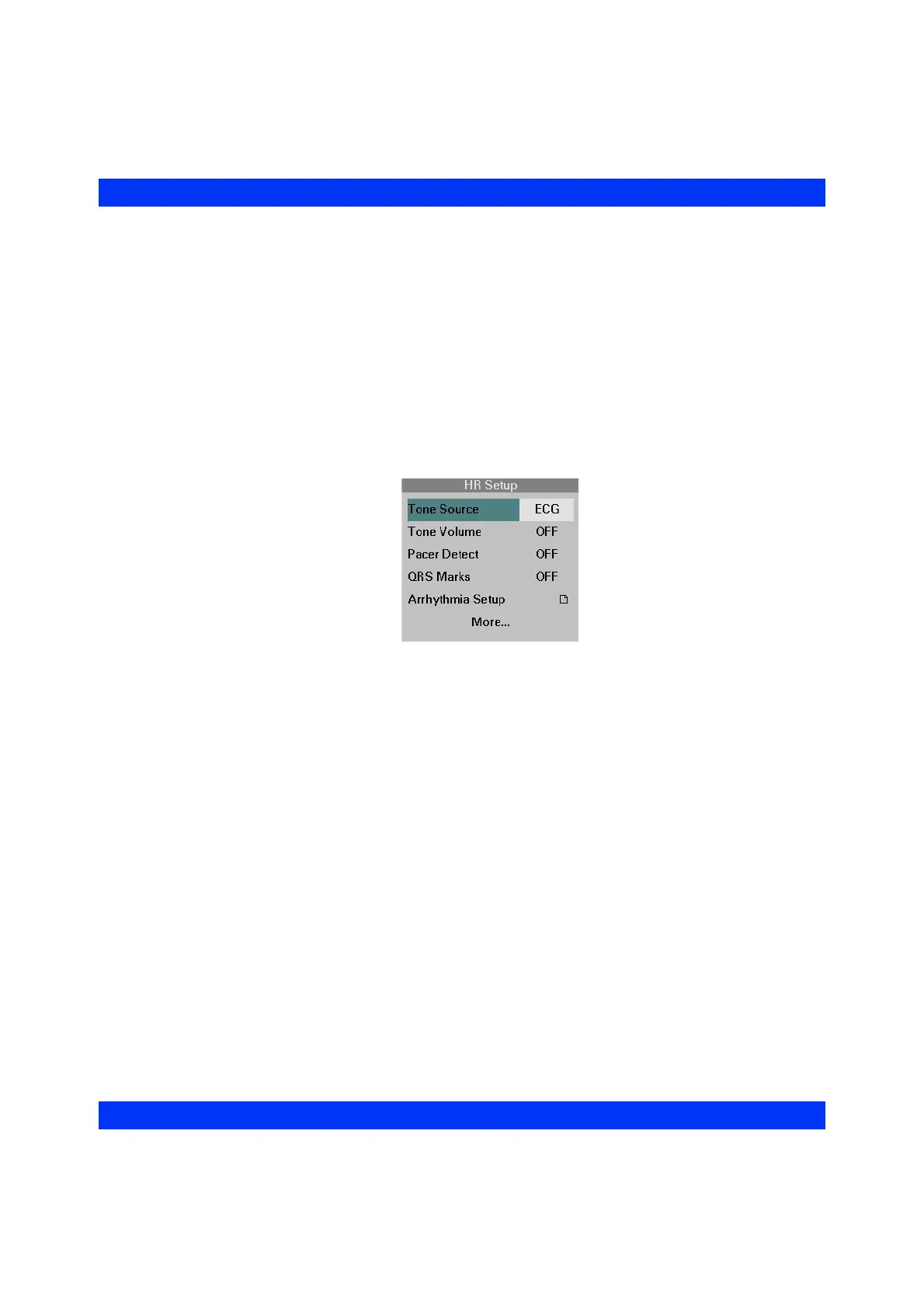

STEPS: Selecting the Pulse Tone Source
1. Click on the HR parameter box.
2. Click on
Tone Source.
3. Select
ECG and click the knob.
