SPO2 MONITORING DISPLAY
VF6 Infinity Vista 12-7
SpO
2
Display Amplitude
The Size option lets you modify the amplitude of the displayed SpO
2
waveform for
optimum viewing. The available sizes are
z 10% to 100%, in increments of 10% (default 50%).

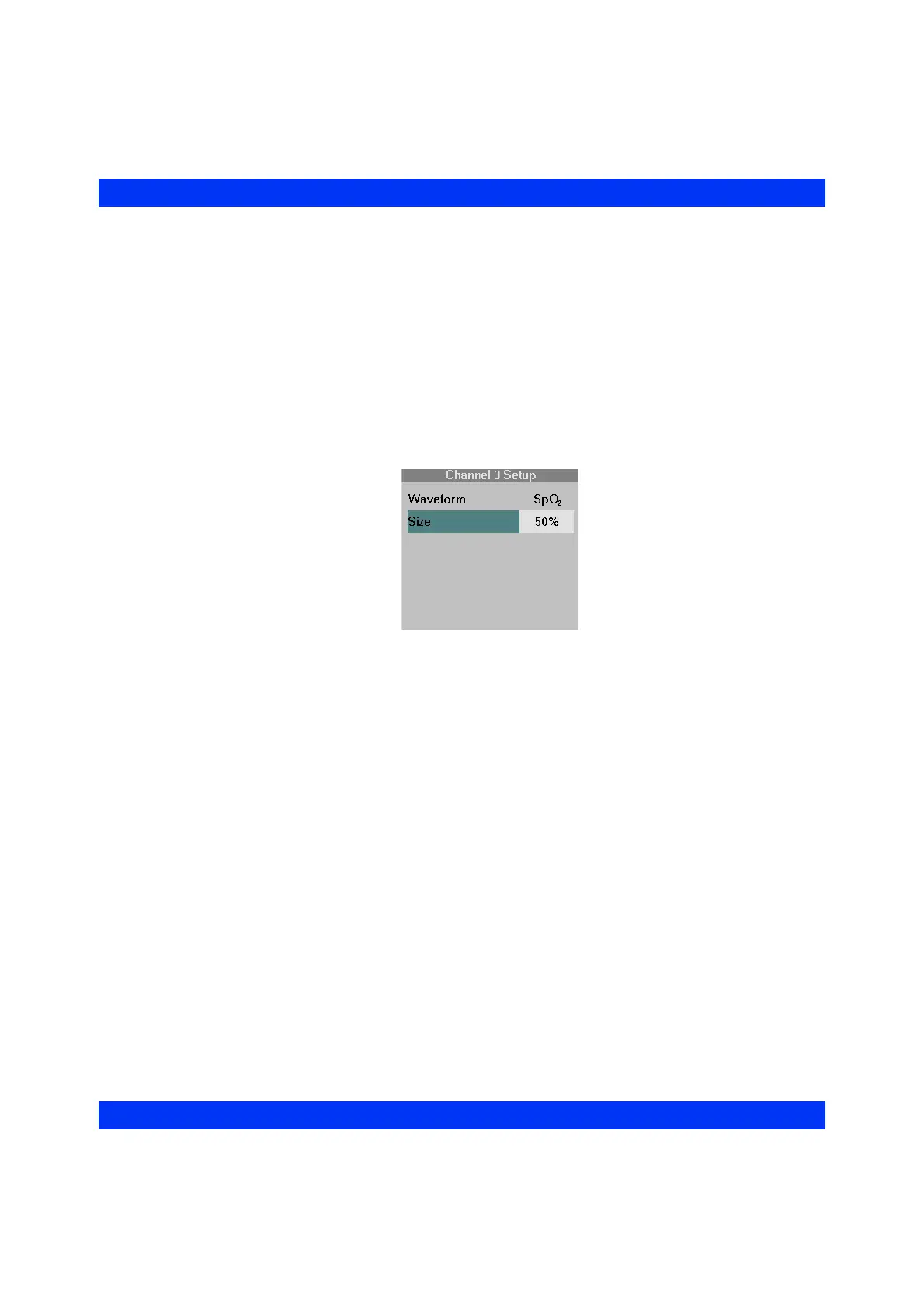

STEPS: Selecting the SpO
2
Display Amplitude
1. Click on the SpO
2
waveform channel.
2. Click on
Size.
3. Dial in the desired setting and click the knob.
