Dräger Infinity Vista - Recorder Setup and Waveform Recording

RECORDER P REPARATION
VF6 Infinity Vista 7-3
Recorder Preparation
Connect the R50 Series recorder to connector X7 on the back of the monitor.
CAUTION: Always place recorders and laser printers on a flat and stable surface to
prevent them from falling.
NOTE:
z The configuration/installation of a network laser printer is a Service function.
z Use of the R50 recorder keys Alternate Speed and mm/s is not supported by
the Vista monitor.

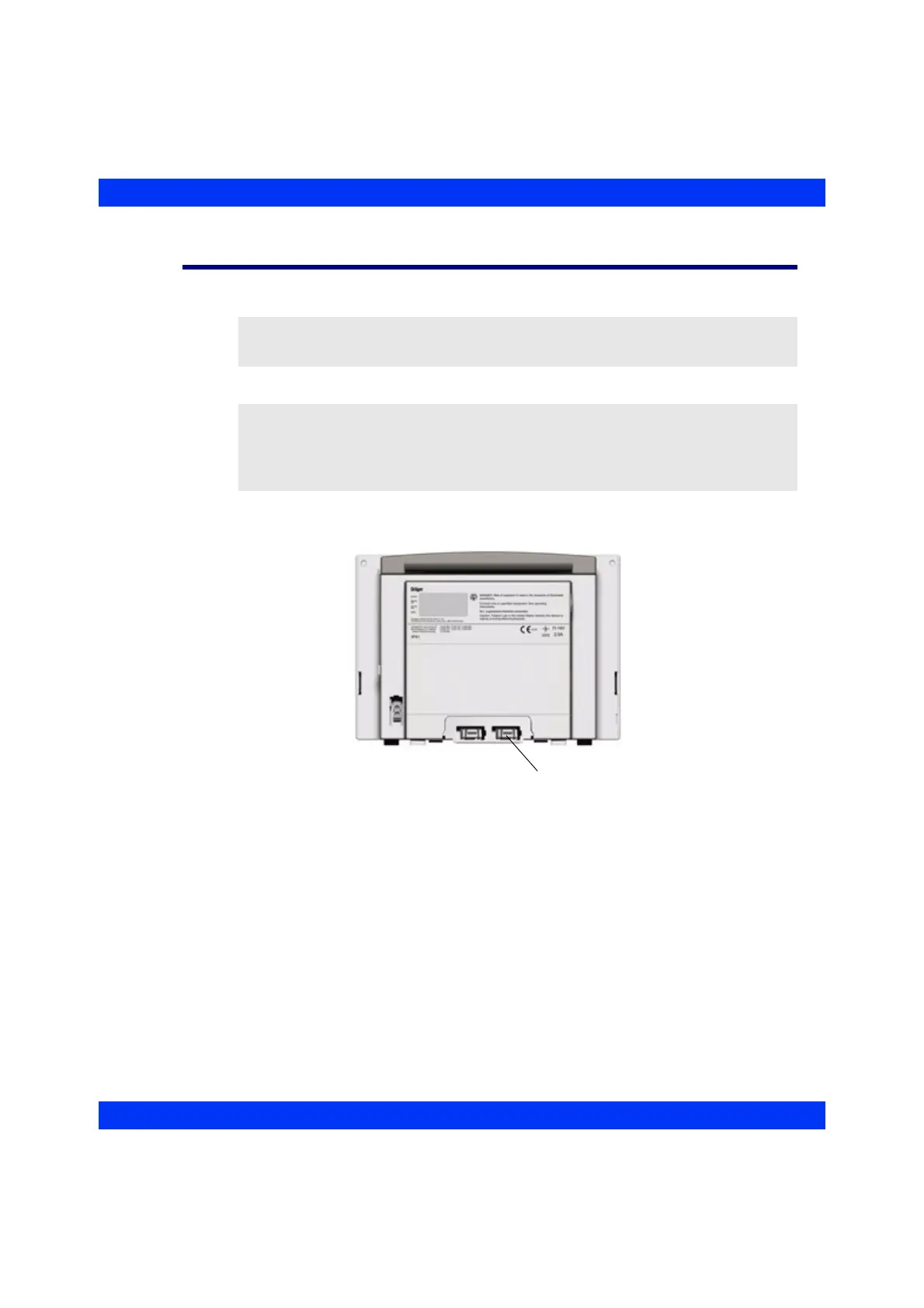

R50 Recorder Connection
