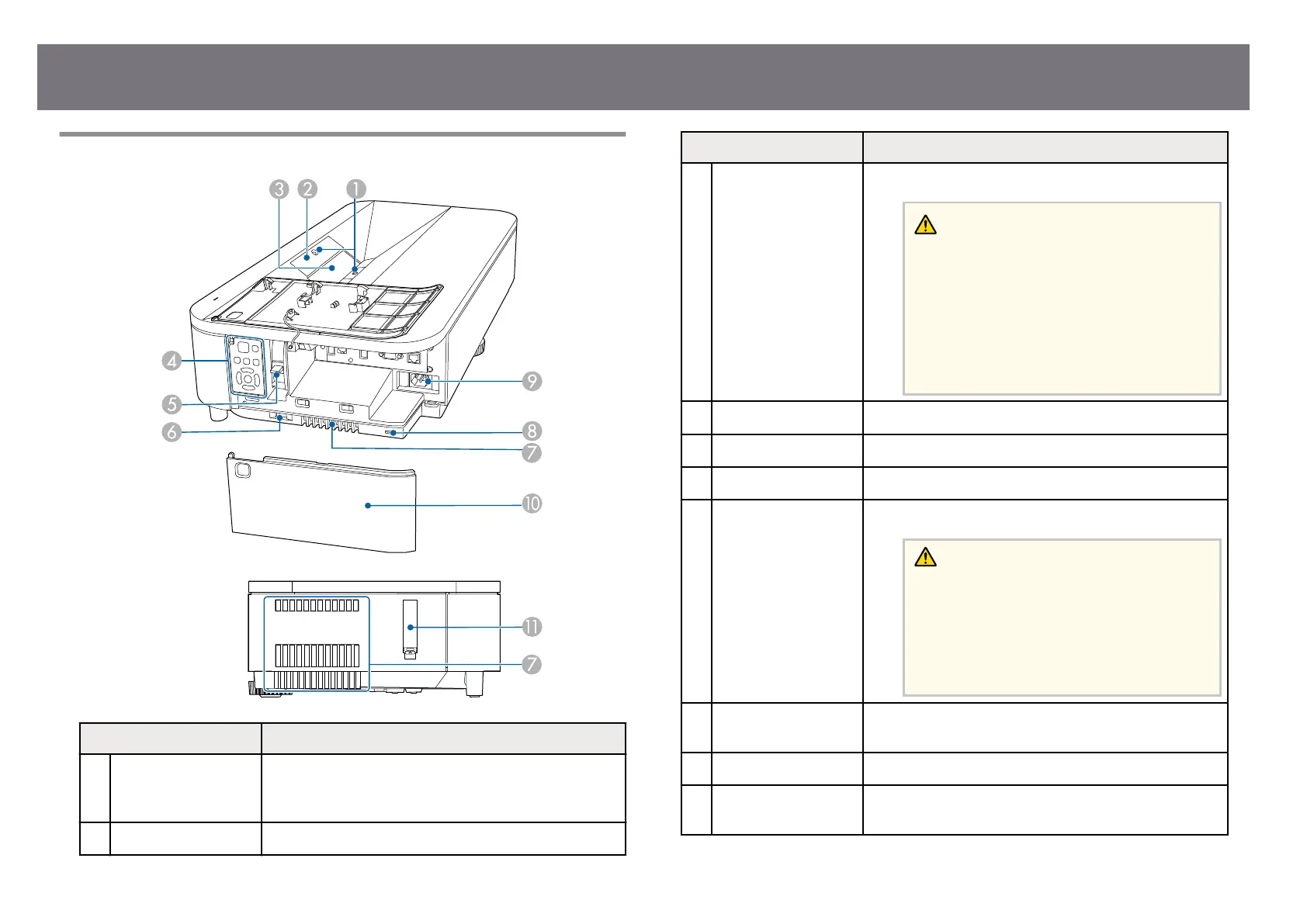

Projector Parts - Top/Side
Name Function
A
Obstacle sensors Detects obstacles that are interfering with the projection
area an
d reduces the brightness of the light source for
safety.
B
Remote receiver Receives signals from the remote control.
Name Function
C
Projection window Images are projected from the lens inside the projector.
Warning
•
Do no
t look into the projection window
while projecting.
•
Do not place any objects or put your hand
near the projection window. It could cause
burns, îš„re, or the object to warp because this
area reaches a high temperature due to the
concentrated projection light.
D
Control panel Operates the projector.
E
Focus lever Adjusts the image focus.
F
Side cover latch Slide to remove the side cover.
G
Air exhaust vent Exhaust vent for air used to cool the projector internally.
Caution
While p
rojecting, do not put your face or hands
near the air exhaust vent, and do not place
objects that may become warped or damaged
by heat near the vent. Hot air from the air
exhaust vent could cause burns, warping, or
accidents to occur.
H
Security slot e security slot is compatible with the Microsaver
Se
curity System manufactured by Kensington.
I
Power inlet Connects the power cord to the projector.
J
Side cover Open to access the interface ports, focus lever, and
cont
rol panel.
Projector Parts and Functions
