418 Eos Family Operations Manual

Edit Mode (below)

Zoom (on thefacing page)

Alignment (on thefacing page)

Ordering (on page421)

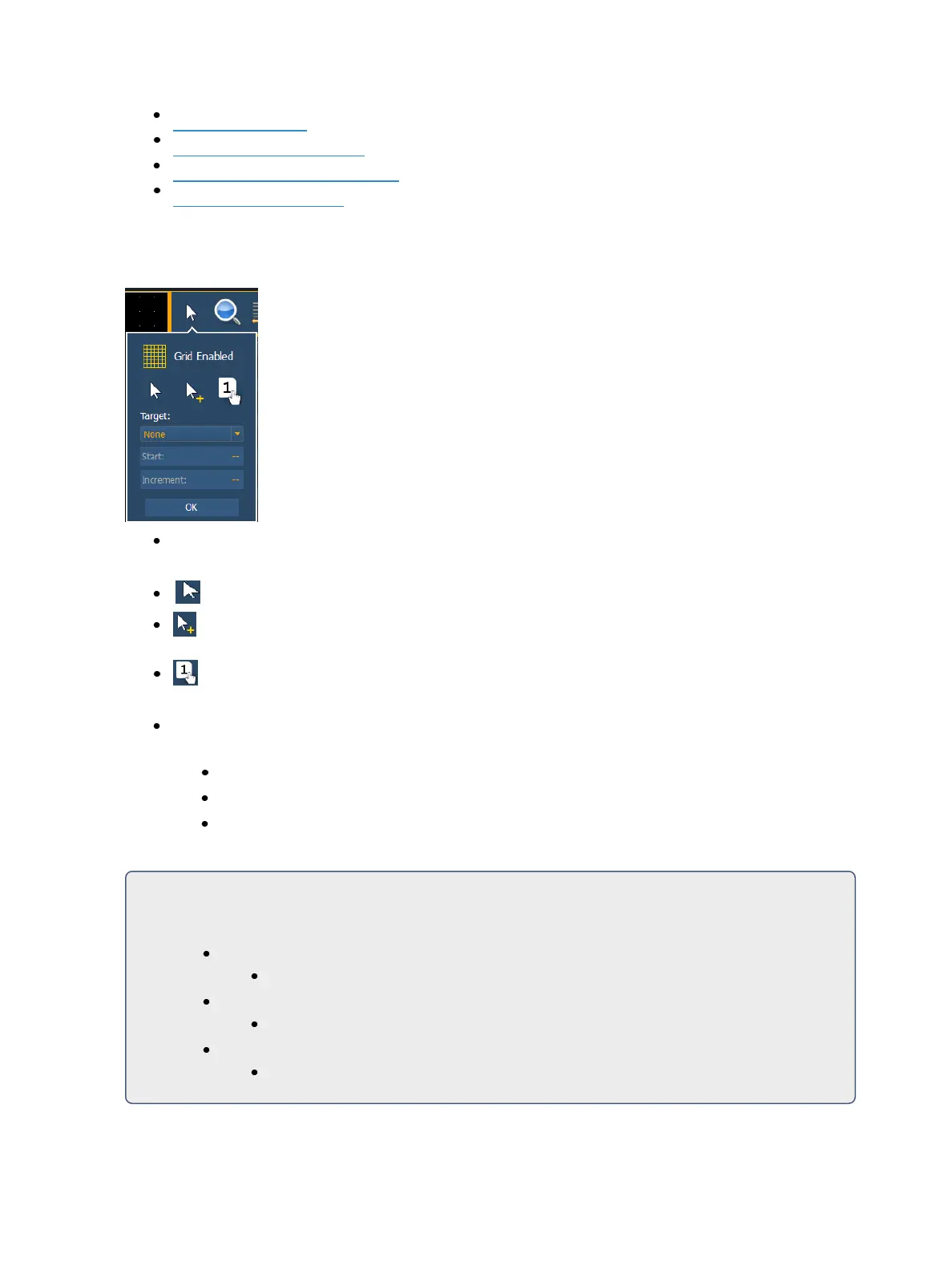

Edit Mode

Clicking on the arrow will open the edit mode options, which include:

Grid Enabled - toggles between a grid being displayed and no grid. With the grid enabled, the

magic sheet will also have a snap to grid behavior when placing objects.

Normal - allows for dragging and dropping of objects from the object list.

Quick Layout - allows you to place more instances of a selected object.When finished, click

the {Done} button or change the layout mode to normal.

Quick Number - used to quickly assign target numbers to objects. While in quick number

mode, clicking on an object will assign the selected target and increment the numbers as spe-

cified in the target section of edit mode.

Target - used to specify object, starting target number, and incrementation for use in quick

number mode.

Object - assigns the object from the list.

Start - assigns the starting target number.

Increment - assigns what incrementation the target numbers will use after the start

number.

For Example:

When incrementing multicell fixtures on a magic sheet, the following methods can be used:

Start: 1.1 Increment: 1

Gives you these channel numbers: 1.1, 2.1, 3.1...

Start: 1.1 Increment: 0.1

Gives you these channel numbers: 1.1, 1.2, 1.3...

Start:1.1 Increment: 1.1

Gives you these channel numbers: 1.1, 2.2, 3.3...
