Eos Configuration Utility 473
Calibrate ETC Touchscreens
Note: Before you calibrate your external touchscreens, you may need to first use the
External Monitor Arrangement display. See Monitor Arrangement (below)
Allows you to calibrate an ETC touchscreen. With the touchscreen connected, press the {Calibrate
ETC ExternalTouchscreen}.
The first display will have you touch various parts of the display to make sure the cursor follows your
finger and the second will have you touch some targets.

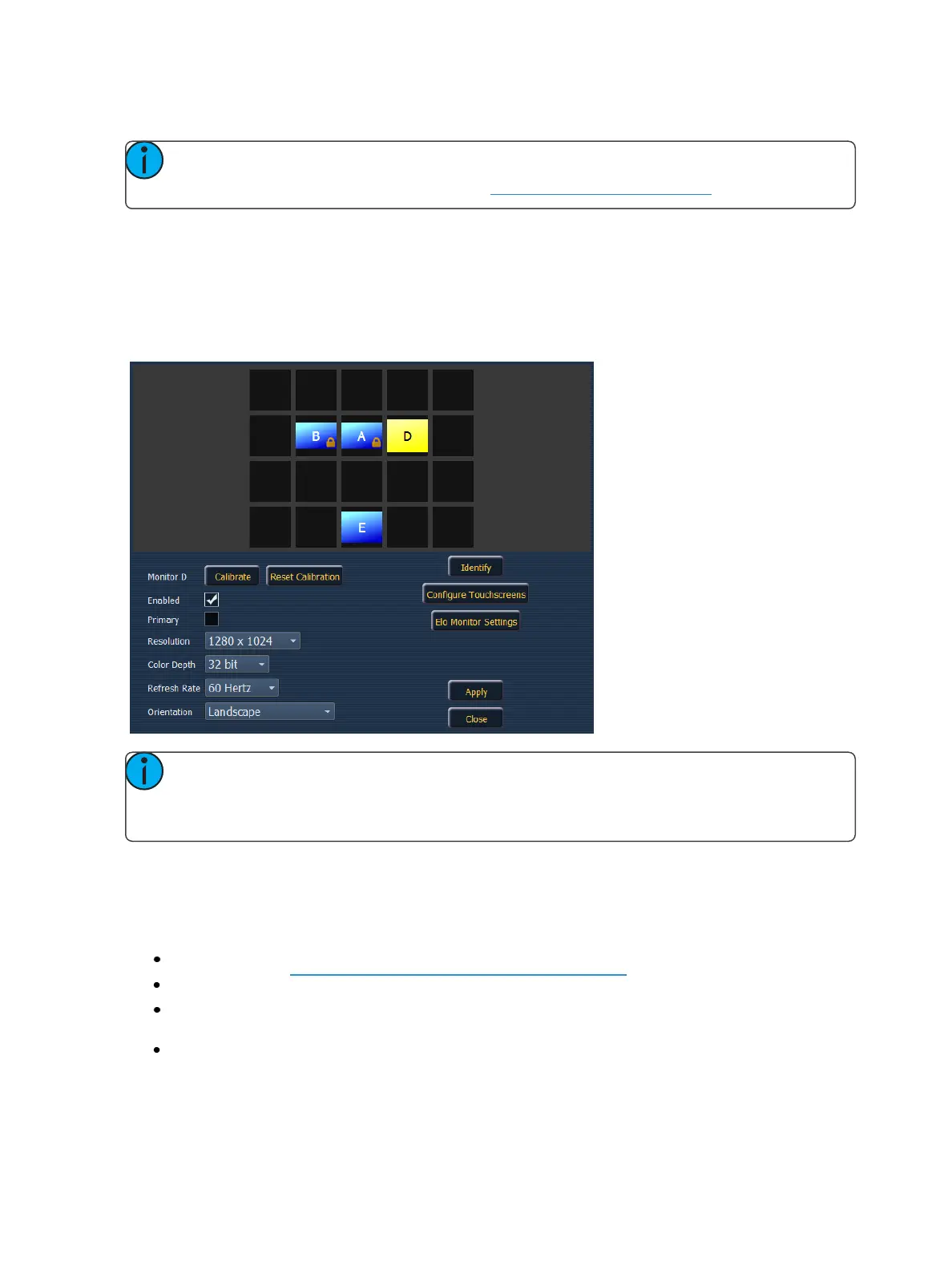

Monitor Arrangement
Note: The selected monitor will display in yellow. External monitors can be dragged to any
of the surrounding black boxes to mimic actual monitor layout. Internal monitors are locked
in relationship to each other and cannot be changed.
The Monitor Arrangement Tool will dictate how and where the pointer moves from one screen/-
monitor to another. Generally speaking, you will want the logical placement on this screen to match
your physical placement.
Buttons available in the External Monitor Arrangement display are:
{Calibrate} - see Calibrate Touchscreens (on the previous page).
{Reset Calibration} - restores default calibration data for selected display.
{Identify} - displays the video port numbers that your monitors are connected to on the phys-
ical monitors to confirm where you have placed them.
{Enabled} - When checked, the monitor is available for use. The desk will display the {Enabled}
box checked for any monitors it recognizes.
