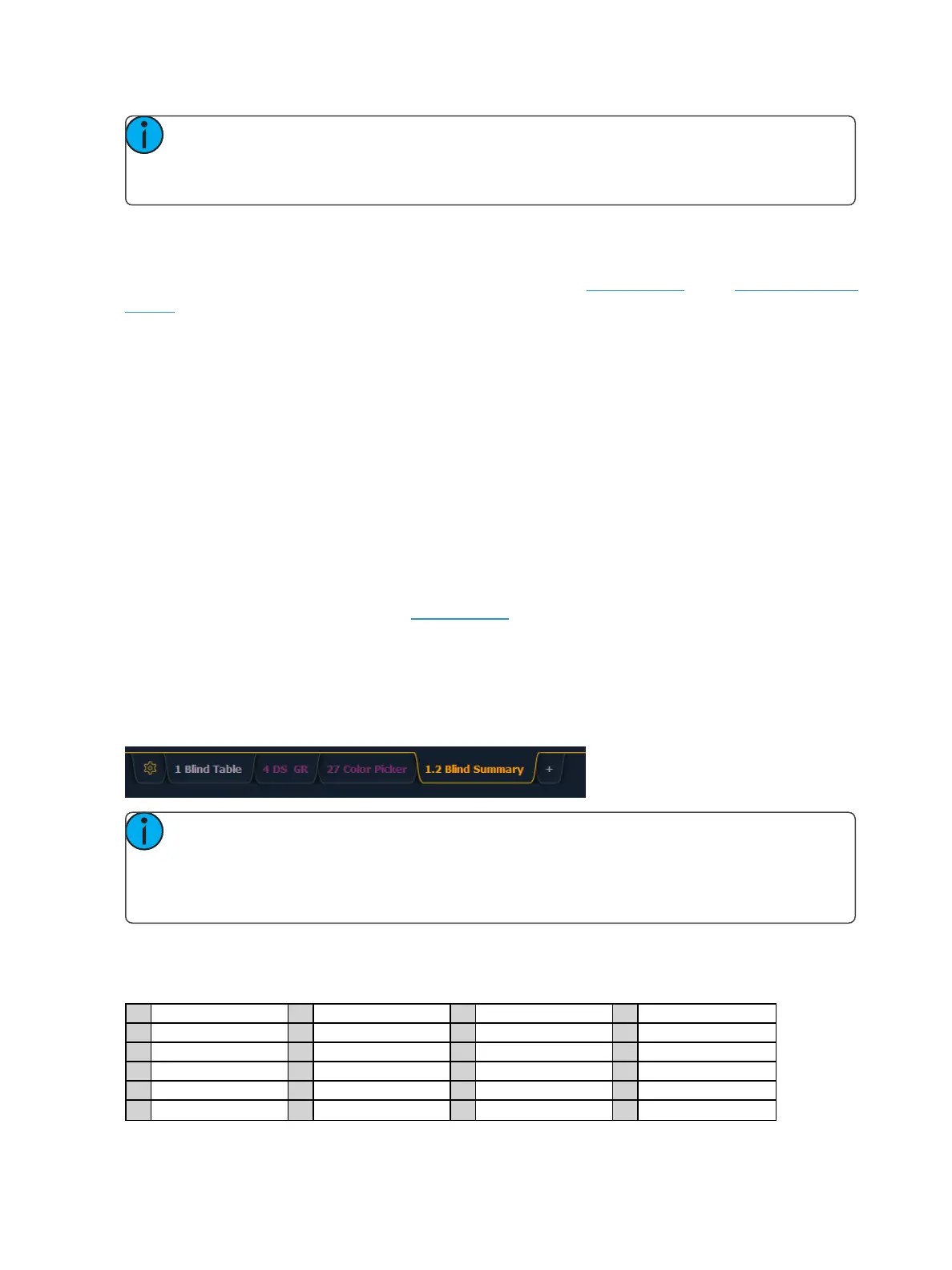

46 Eos Family Operations Manual
Note: From an alphanumeric keyboard, hold down either of the bracket buttons ([ or ]) and
type in the number of the workspace you wish to view. For examples, hold down [ and press
2 to view workspace 2.
Frames
Each workspace can have up to four frames in its layout. The number of frames in a workspace lay-
out is determined by choosing the layout options offered in the HomeScreen or the Display Controls
Screen.
Tabs
Any frame can have multiple tabs open. Tabs are broken down into two categories: Control and Dis-
play. Control tabs are the virtual control options, such as the color picker and the virtual keyboard.
Display tabs are the various displays available on the console, such as the playback status display and
the park display.
You can open or close tabs using the Display Icons, Control Icons, or typing the [Tab] & the tab num-
ber. Pressing [Shift] & [Tab] once will clear all tabs on the selected monitor but tabs in locked frames
will remain. Pressing [Shift] & [Tab] twice will clear all tabs on all monitors but tabs in locked frames
will remain. Pressing [Shift] & [Tab] a third time will clear all tabs on all monitors including those in
locked frames.
White text in the tab indicates a Display Tab, and magenta text indicates a Control Tab.
All Display and Control Tabs have fixed Tab Numbers under which they open (for example, “Live”
opens under Tab 1, “Patch” under Tab 12, and “Color Picker” under Tab 27).
These numbers are identified on the Home Screen in each icon. For multiple instances of the same dis-
play, the tab number will be followed with a decimal number. Additional tabs will start their num-
bering with n.2. When you press [Tab], active focus will move numerically through all open tabs on
active workspaces.
Note: Single clicking on a Controls Tab will bring it to the front of the frame but will not
move focus to that tab unless the tab’s frame already has focus. Double clicking on a Con-
trols Tab will bring it to the front and grab focus. Single clicking on a Display Tab will bring it
to the front and grab focus.
Tab Numbers
The following table lists the tab number for each of the Control and Display tabs:
1 Live/ Blind 11 Show Control 21 Curves 31 Lamp Controls
2 Playback Status 12 Patch 22 Intensity Palettes 32 Channels In Use
3 Magic Sheet 13 Effects 23 FocusPalettes 33 Color Path
4 Direct Selects 14 Magic Sheet List 24 Color Palettes 34 Not Currently Used
5 MLControls 15 Submaster List 25 Beam Palettes 35 Fader List
6 Effect Status 16 Cue List 26 Presets 36 Fader Configuration
