ETC Element - Labeling; Using the Scroller;Wheel Picker and Editor

98 Eos Family v2.9.0 Operations Manual

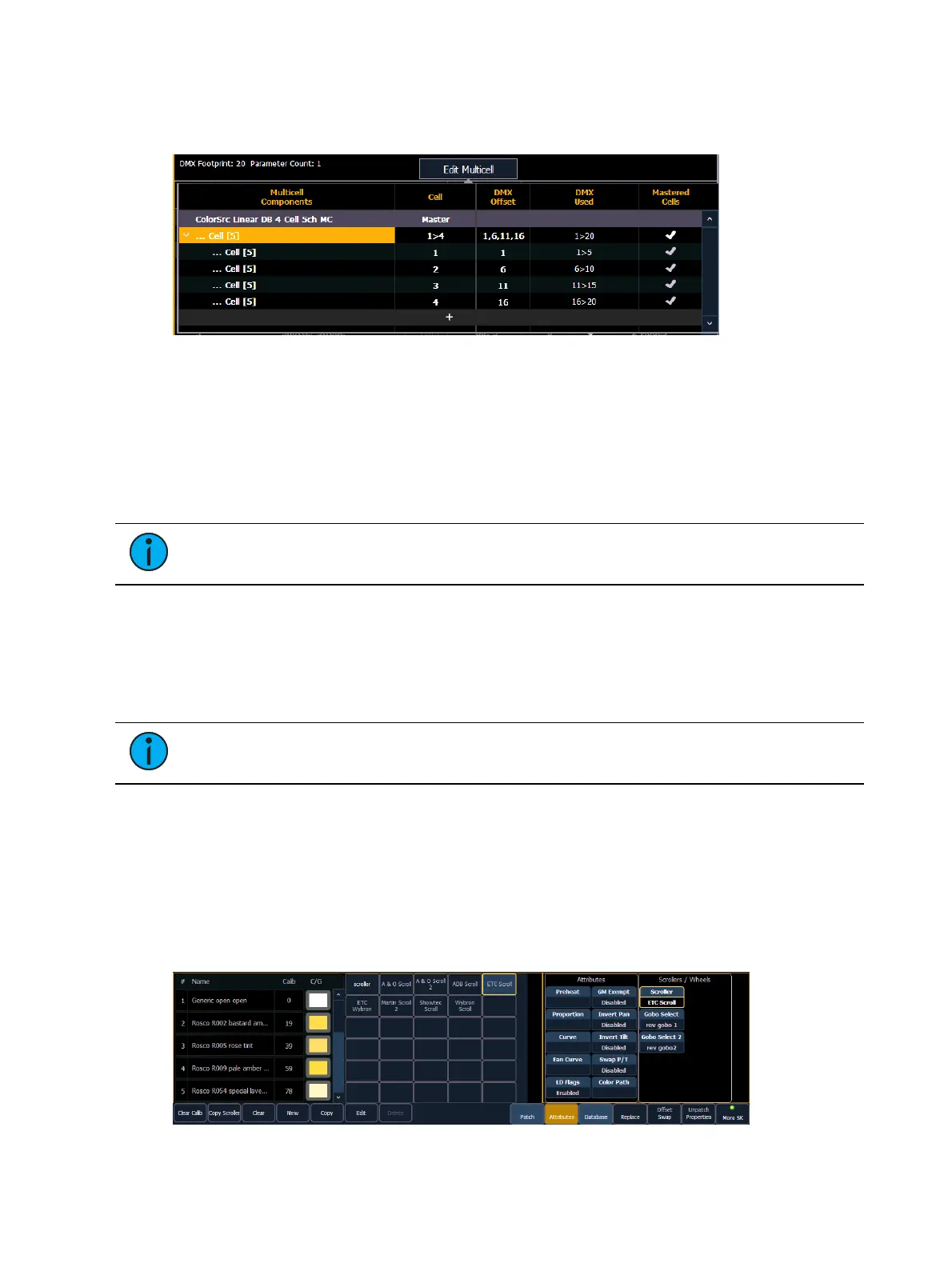

To change specific cell data such as DMXoffset, you will need to use {Edit Multicell}. With a
multicell fixture or a master cell selected in the fixture editor, press {Edit Multicell}. In the Edit
Multicell window, you can edit cell numbers, DMX offset, and mastered cells for each cell.
Once you are finished editing, press {Save Fixture} to save your changes or {Cancel Edit}to
remove the changes and exit the edit mode.
Labeling
To label a channel or address, press the [Label] key with the channel or address selected on the
command line. You can use the virtual alphanumeric keyboard or an external keyboard to enter
the desired label text.
Note: If you would like your label to word wrap, use || to create a line break between
words.
Using the Scroller/Wheel Picker and Editor
The scroller and wheel picker allows you to choose a specific scroll, color wheel, gobo wheel, or
effect wheel from standard manufacturers and associate them with fixtures. You may also
create customized scrolls/wheels using the editor to match custom devices installed in your
fixture.
Note: Scrollers, color wheels, gobo wheels, and effect wheels can be created without
first selecting or patching a fixture.
Using the Picker
Default color and pattern media for the selected fixture, as determined in the fixture library, is
displayed in the {Attributes} page. Only the media attributes that are available for the selected
fixture will display.
In the image below, the selected channel is a Source Four Revolution® with a color scroller and
two gobo wheels. If the selected channel included other wheels, each device would be
represented in the display with a button.
