110 Eos Family v2.9.0 Operations Manual

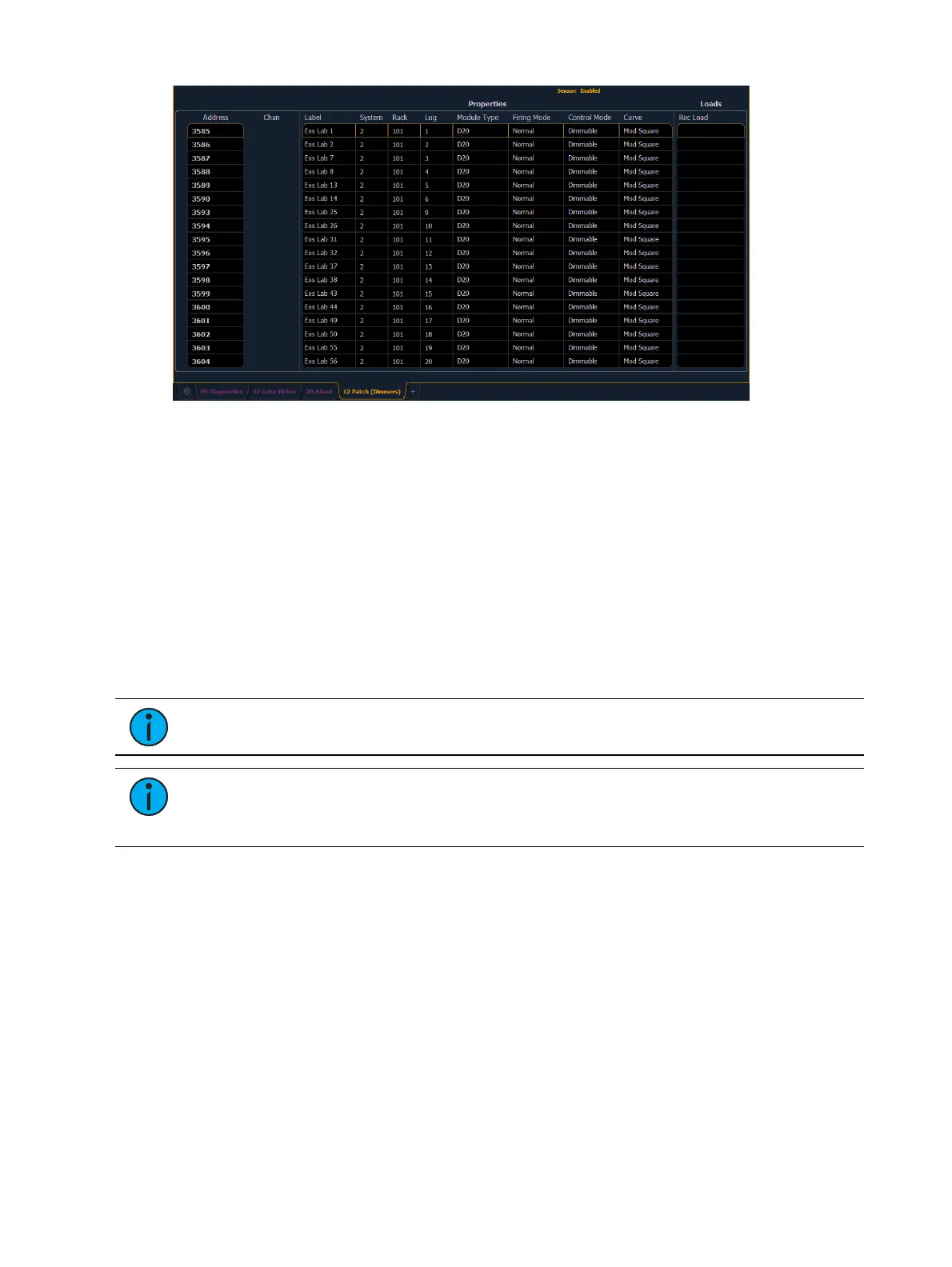

Element will display the following information that it receives from the dimmers:
Address
Channel
Label
System
Rack
Lug
Module Type
Firing Mode
Control Mode
Curve
Recorded Loads
Note: The System ID number from CEM3 is not currently supported.
Note: Rack numbers and dimmer numbers need to be unique for Element to properly
recognize them. For CEM+, dimmers also need to be patched to different sACN
addresses.
With a dimmer or dimmers selected, you can edit various dimmer settings in the property view,
which will display in the CIA. Items with a caret (>) are editable. When multiple dimmers are
selected together for editing, an “*” will show for data that is different between the selected
dimmers.
