4. Remove the Idler Shaft from the slots on
the conveyor housing and slide the Idler
Shaft and Pulley out from under the belts.
(Illustration 45)
5. Slide the Idler Shaft out of the Idler Pulley.
(Illustration 46)
6. Remove the conveyor belts.
7. Remove the drive bushing on the conveyor
drive pulley. (Illustration 47)
8. Put all parts in the parts cart for clean up.
031914 8-15

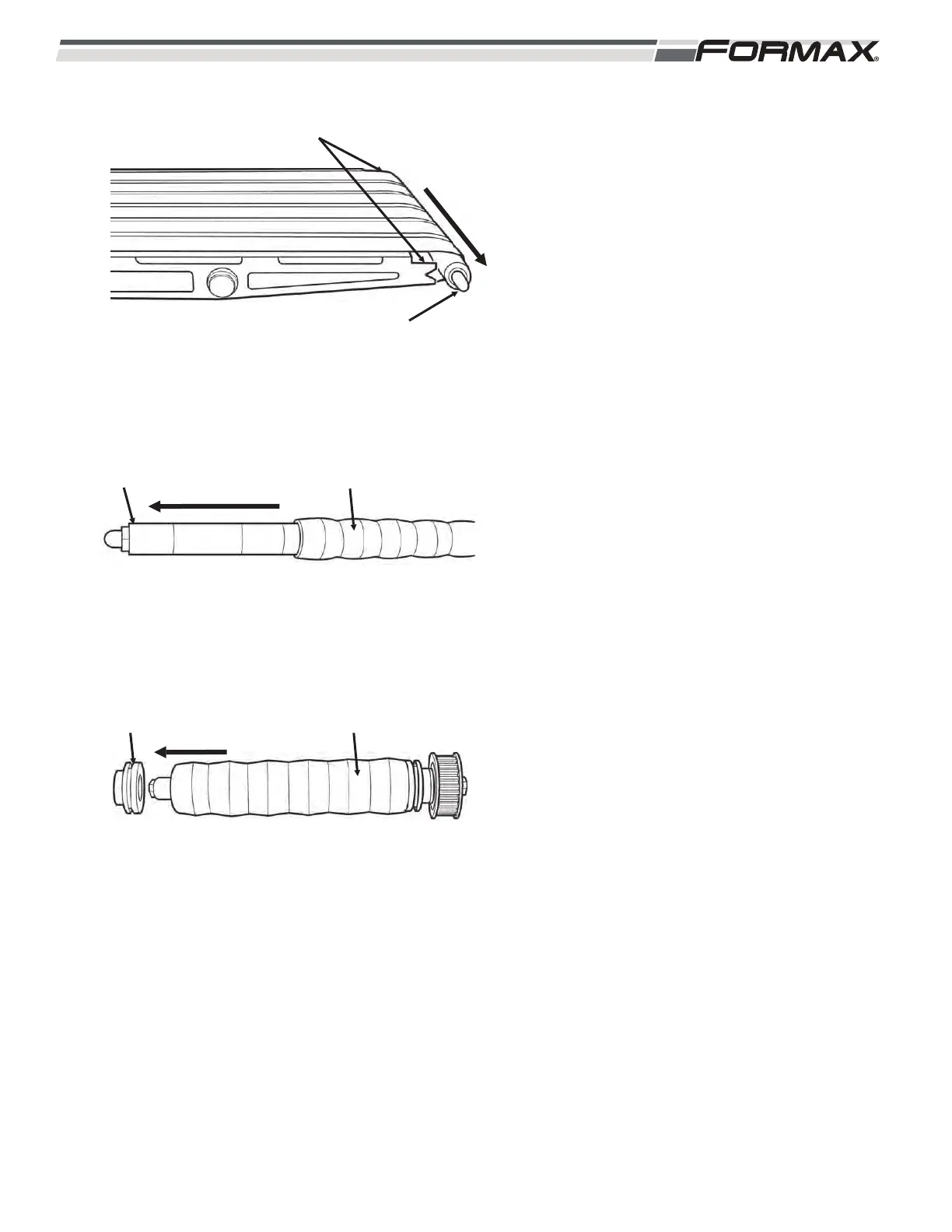

ILLUSTRATION 46
IDLER PULLEYIDLER SHAFT
ILLUSTRATION 47
DRIVE PULLEYDRIVE BUSHING
ILLUSTRATION 45
IDLER SHAFT
SLOTS
