STEP 12 DISASSEMBLE THE
GRIPPER DRIVE ASSEMBLY

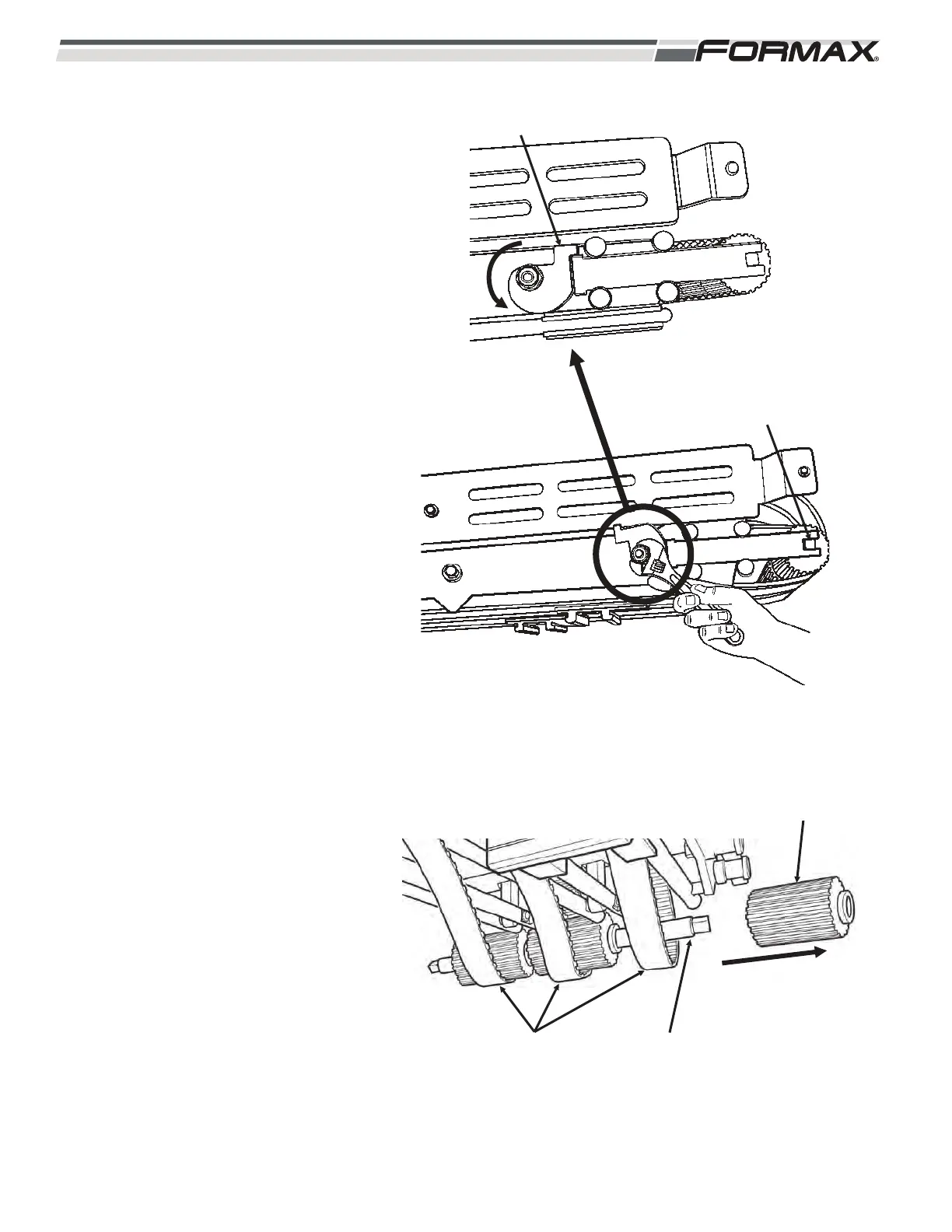

1. Use an adjustable wrench and turn
the tensioner arm counterclockwise
to tension the belts. (Illustrations 30
and 31)
2. Slide the Idler Shaft out of the
mounting slots on the side brackets.
(Illustration 31)
3. Slide the Idler Shaft out of the drive
belts. (Illustration 32)
4. Slide the Idler Pulleys off of the Idler
Shaft.
8-10 031914
MOUNTING SLOTS
ILLUSTRATION 31
ILLUSTRATION 30
LOCKING ARM
ILLUSTRATION 32
IDLERPULLEY
DRIVE BELTS
IDLER SHAFT
