LOAF TRAY LIFT CYLINDER: The “Loaf Tray
Lift” cylinder raises and lowers the Loaf Tray.
(Illustration 8) After the Loaf Lift Tray raises, the
Loaf Tray raises to the “up” position for gripping.
The tray will remain in the “up” position until the
Loaf Lift Tray lowers.
LOAD LOAF SADDLE SWITCH: The “Load Loaf
Saddle Switch” (SQ35) is mounted on the rear of
the machine. (Illustration 9) Placing your finger in
the switch signals the Computer to raise the Loaf
Lift Tray and grip the product..
2-4 031914

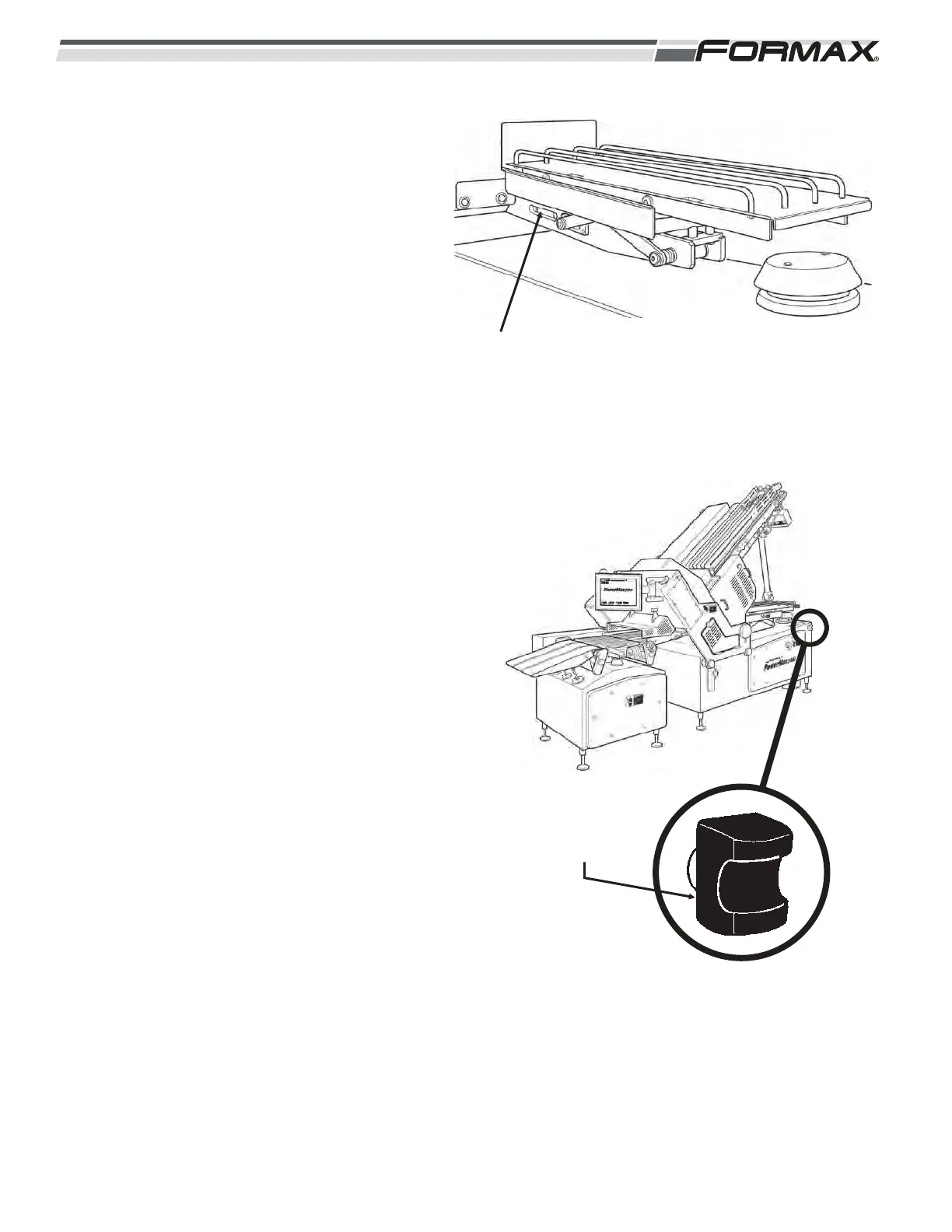

ILLUSTRATION 8
LOAF TRAY LIFT CYLINDER
LOAD LOAF
SADDLE
SWITCH
ILLUSTRATION 9
