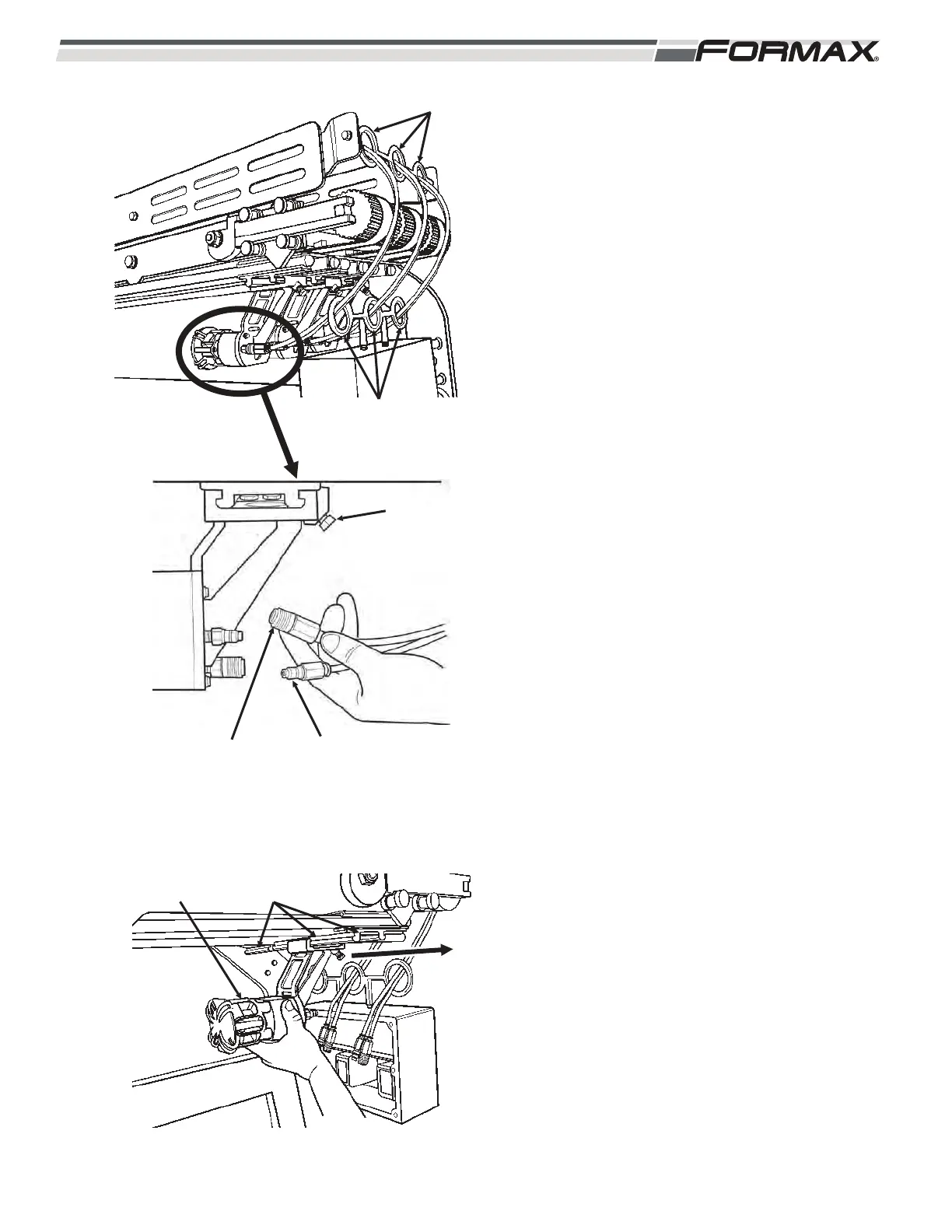

STEP 11 REMOVE THE GRIPPERS
1. Disconnect the airlines from the
Grippers. Feed the Gripper airlines
down through the guide rings and out
of the way. (Illustrations 27 and 28)
2. Loosen the retaining bolts with a
13-mm “T-handle” wrench and slide the
Grippers off the mounting blocks.
(Illustrations 28 and 29)
3. Hang the Grippers in the correct
location on the Cleanup Cart.
031914 8-9
GUIDE RINGS
GUIDE RINGS
ILLUSTRATION 27
ILLUSTRATION 28
FEMALE
CONNECTOR
MALE
CONNECTOR
RETAINING
BOLT
ILLUSTRATION 29
SLIDE
GRIPPER
MOUNTING
BLOCKS
