M4-4 031914
POWERMAX3000
TM
ELECTRICAL/ELECTRONIC
SYSTEM OVERVIEW
COMPUTER
The Computer determines the sequence
requirements for the Slicer based on the
“Machine Speed,” “Machine Adjustment”
settings and the “Product Code
Parameters” programmed in the Product
Code. (Illustration 5) The Slicer Computer
sends this information over the Profibus
to the U1 Motion Control Module. The U1
Motion Control Computer determines the
position, direction and speed
requirements of all of the Servo Motors
and sends the control signals to the U2
and U9 Motion Control Modules. The 3
Motion Control Modules control all of the
Servo Motors operated by the Servo
Drives. The Slicer Computer sends
control signals over the Profibus to the
Remote Nodes, to control the Linear and
Rotary Actuators. The Computer also
sends control signals over the Profibus
Network to the Remote Nodes to operate
all of the pneumatic and electrical
components on the Slicer. The Remote
Nodes and Motion Control Modules send
“status” information and Input Signals to
the Computer over the Profibus Network.

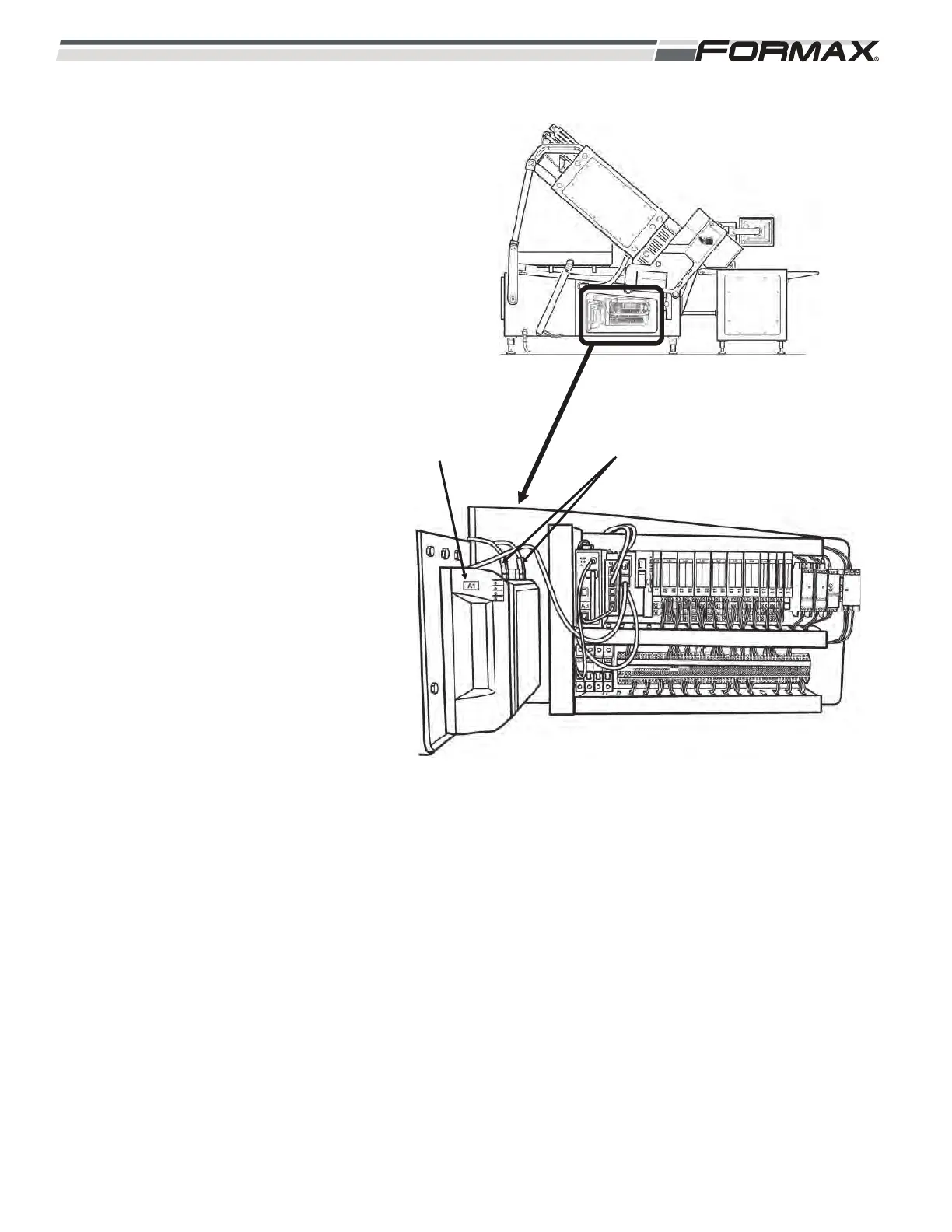

ILLUSTRATION 5
COMPUTER
ASSEMBLY
PROFIBUS NETWORK
CABLES
