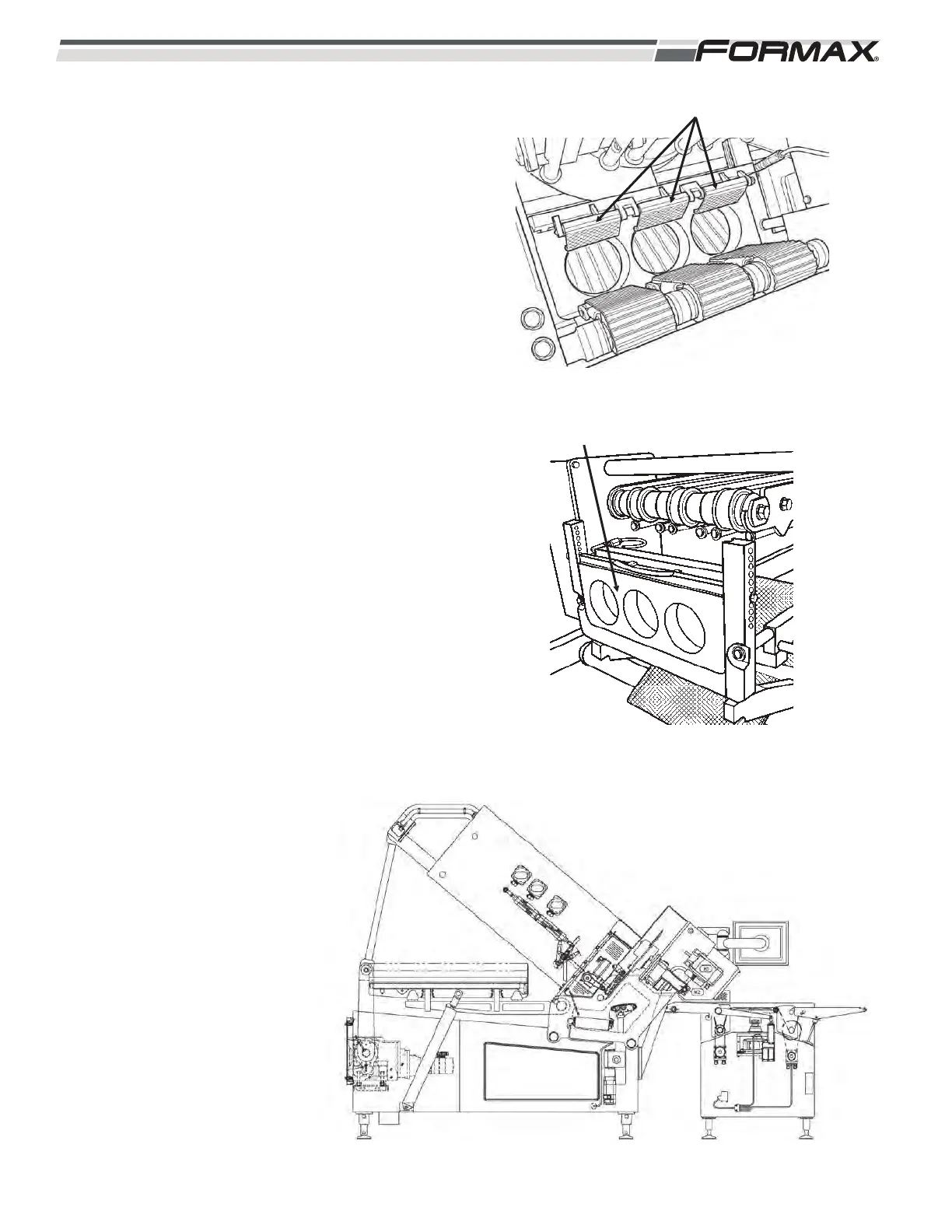

UPPER INFEED HOLD DOWN ASSEMBLY: The
Upper Infeed Hold Down Assembly holds down the
product while it is fed through the Shear Bar and into
the Knife. (Illustration 18) Air Pressure is applied to
the Hold Down Arms to hold the product firmly as it
transfers into the Shear Bar.
The Air Pressure is applied to the Hold Down Arms by
small air cylinders. The Air Pressure is supplied and
controlled by the BP2 Pressure Regulator and is
adjusted on the Touchscreen.
SHEAR BAR: The Shear Bar holds the product
stationary while the Knife slices the product.
(Illustration 19) The clearance between the Knife and
the Shear Bar is adjustable and is “present” in
software to a .020 inch running clearance.
2-8 031914
ILLUSTRATION 20
UPPER INFEED HOLD DOWN ASSEMBLY
ILLUSTRATION 18
SHEAR BAR
ILLUSTRATION 19
