ADJUSTMENTS SCREEN
The “Adjustments” screen displays the machine
adjustments necessary to fine-tune the Slicer
operation during production. (Illustration 41) The
“Adjustments” screen is accessed by touching the
“Adjustments” button on the “Run” screen.
Most of the adjustments can also be
pre-programmed in the Product Codes to save time
when the same product is run again. Some of the
adjustments can only be adjusted in the Product
Code Parameters. Refer to the “Adjusting and
Creating Product Codes” section for more
information on changing these Product Code
Parameter settings.
COMMON: ADVANCED PARAMETERS
ADVANCED ADJUSTMENTS: Enabling the
“Advanced” adjustment displays the seldom-used
adjustments that are not normally required in normal
production operation. (Illustration 42) These
adjustments are used to fine-tune the Slicer during
production.
BLADE
ORIFICE CLEARANCE: The “Orifice Clearance”
adjustment sets the “distance” between the Knife
Blade and the Orifice during slicing. (Illustration 43)
A running clearance of .5 mm (.020 inches) is
pre-programmed into the software. This adjustment
allows you to increase this distance when required.
031914 6-17

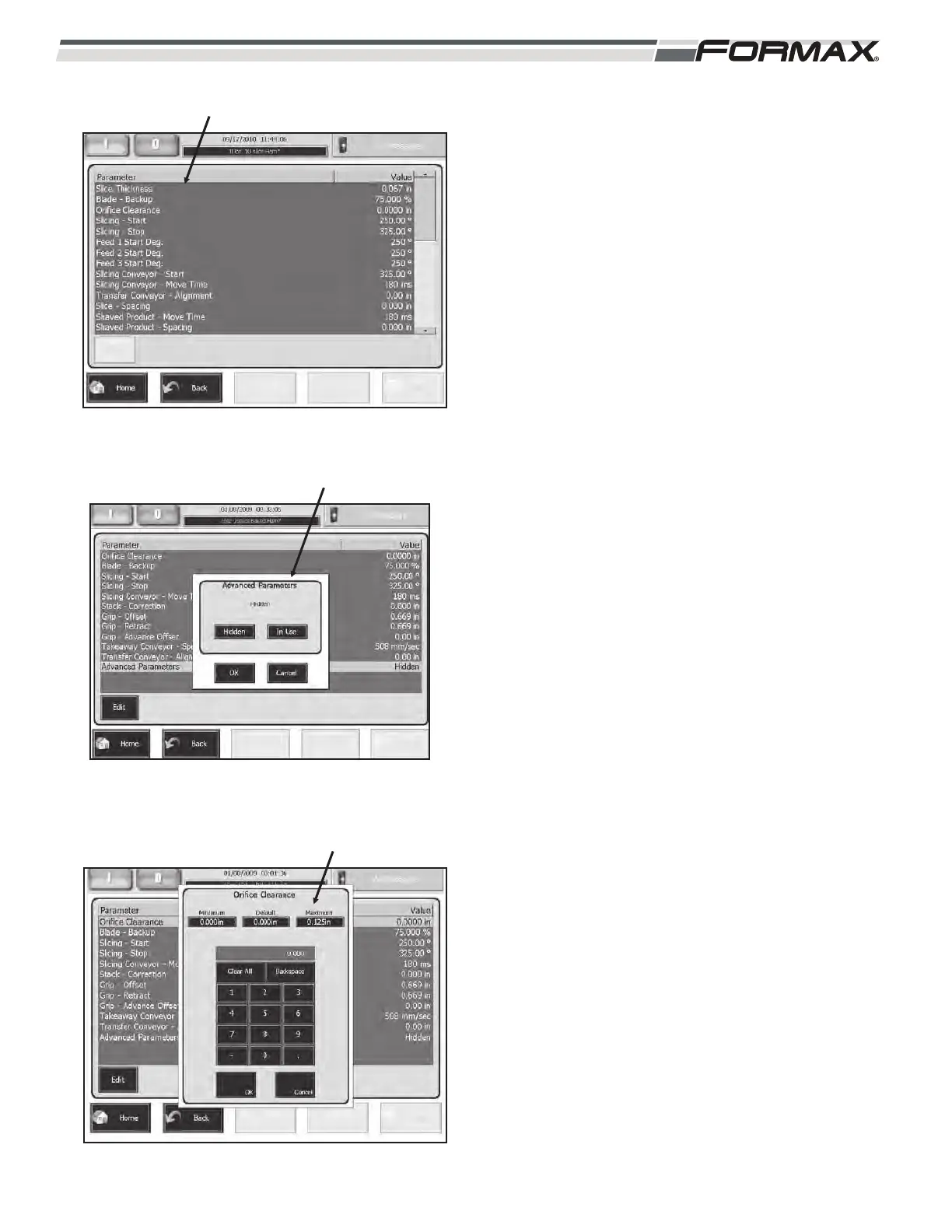

ILLUSTRATION 41
“ADJUSTMENTS” SCREEN
ILLUSTRATION 43
“ORIFICE CLEARANCE” ADJUSTMENT
“ADVANCED” ADJUSTMENTS
ILLUSTRATION 42
