8. Slide the Slicing Conveyor on to
the mounting rail. Slide it over
until the drive shaft engages in
the gearbox and the alignment
pins on the mounting rail.

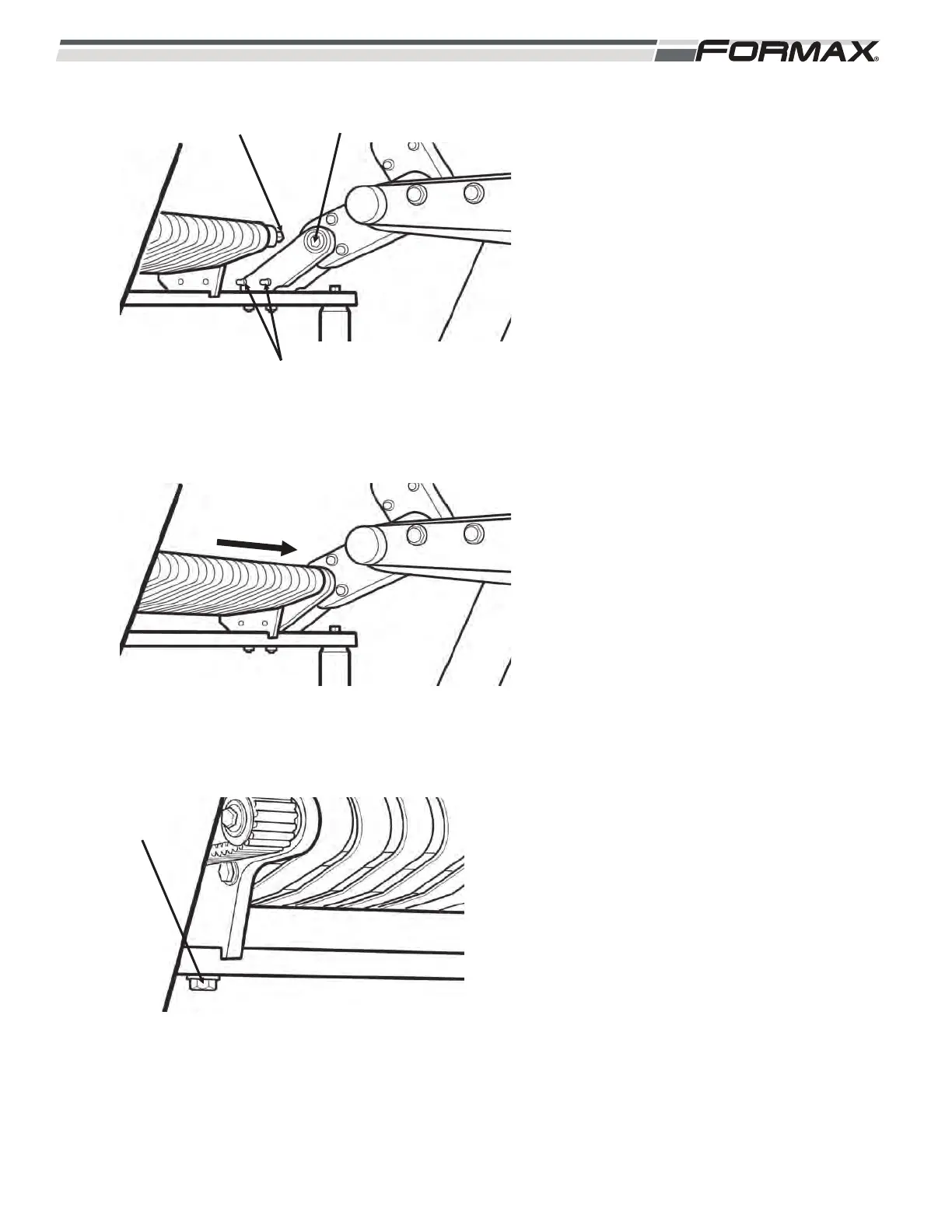

(Illustration 46 and 47)
9. Thread the retaining bolt into the
Slicing Conveyor. (Illustration 48)
10. Tighten the retaining bolt with a
13 mm wrench.
031914 5-15
ILLUSTRATION 48
RETAINING
BOLT
ILLUSTRATION 47
ILLUSTRATION 46
ALIGNMENT PINS
DRIVE SHAFT GEARBOX
