STEP 10 INSTALL THE SLICING
CONVEYOR
1. Install the tray on the support posts.
(Illustration 44)
2. Install the conveyor belts.
3. Insert the Roller Shaft into the Idler
Roller. (Illustration 45)
4. Slide the Idler Roller and shaft
under the belts.
5. Align the belts with the high spots
on the Drive Pulley and Idler Roller.
6. Slide the shaft down and engage
one end in the slot of the side
bracket.
7. Use a pry bar under the other end of
the shaft to stretch the conveyor
belts and engage that end of the
shaft to tension the belts.
5-14 031914

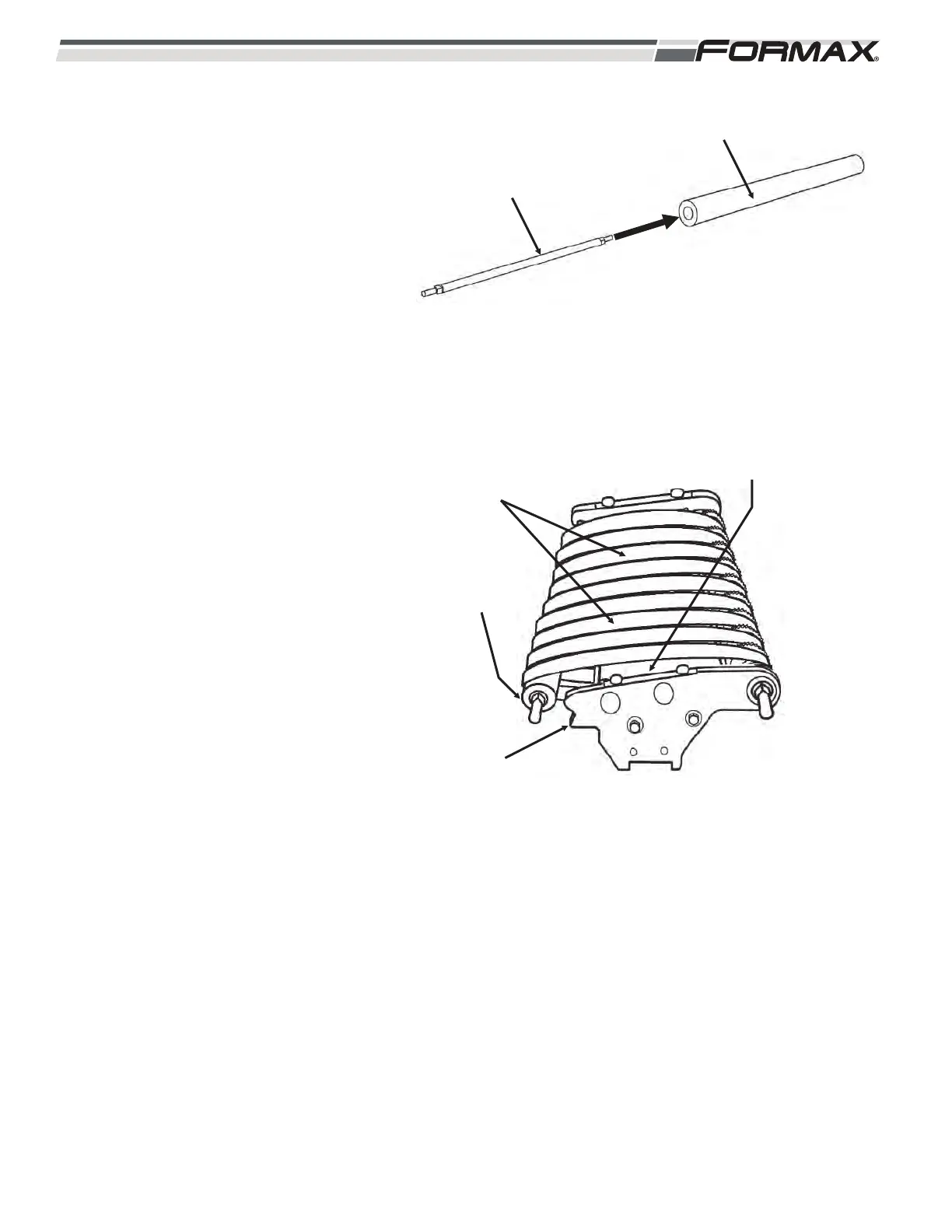

ILLUSTRATION 45
BELTS
IDLER
ROLLER
INSTALL TRAY
SIDE
PLATE
ILLUSTRATION 44
IDLER ROLLER
IDLER SHAFT
