STEP 9 REMOVE THE SHEAR BAR
1. Disconnect the Product Holddown airline.
(Illustration 20)
2. Remove the 2 retaining bolts that secure
the Shear Bar in place. (Illustration 20)
3. Slide the upper retaining bar and
Holddown Assembly “up” out of the
mounting bracket.
4. Slide the Shear bar “up” out of the
mounting bracket. (Illustration 21)
STEP 10 REMOVE THE INFEED
CONVEYORS
1. Pivot the Drive Shaft Retainer Arm “up”
and remove the Drive shaft. (Illustrations
22 and 23)
031914 8-7

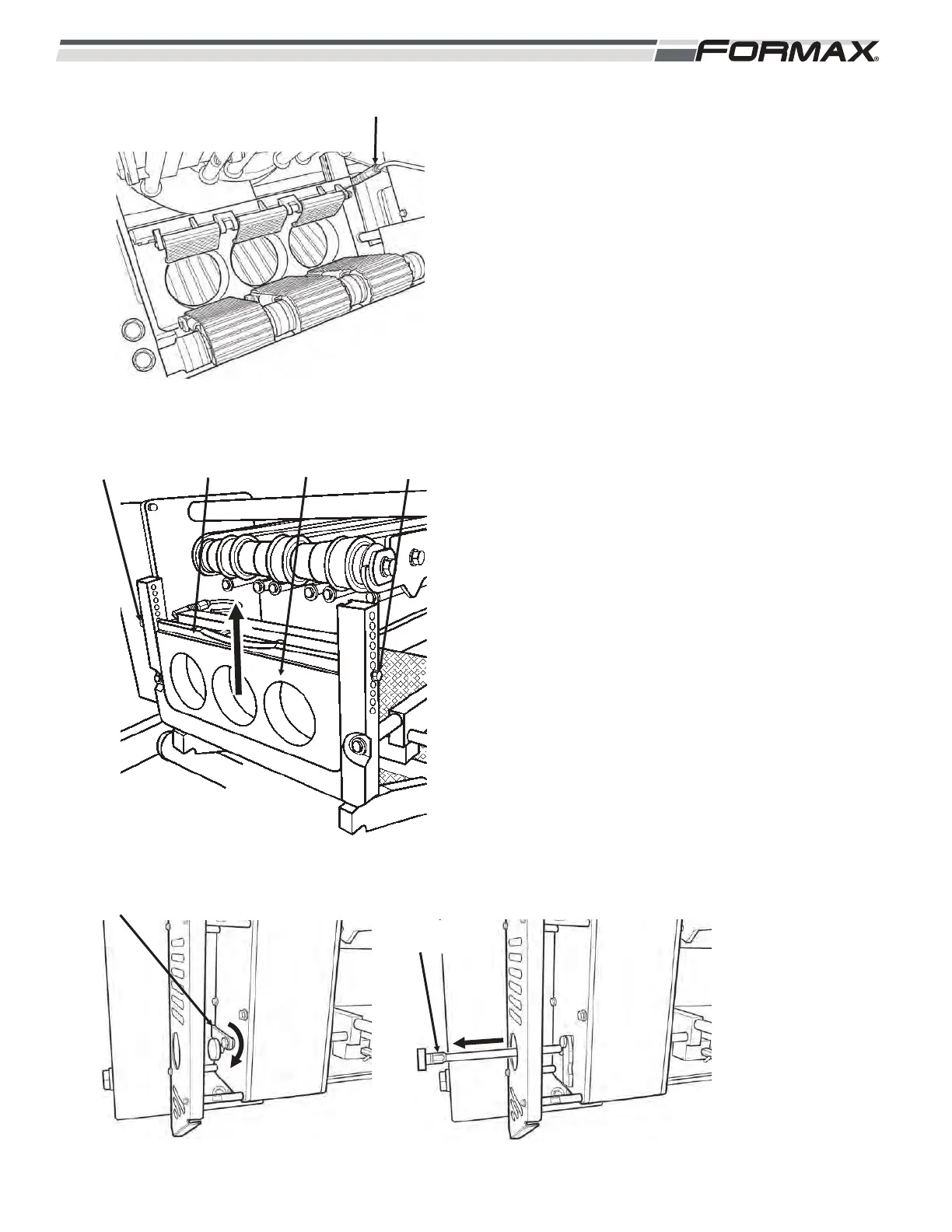

ILLUSTRATION 21
RETAINING
BOLT
RETAINING
BAR
SHEAR
BAR
RETAINING
BOLT
ILLUSTRATION 22
RETAINING ARM
ILLUSTRATION 23
INNER DRIVE
SHAFT
ILLUSTRATION 20
QUICK CONNECT AIRLINE
