5. Slide the Idler Shaft and pulley out
of the slots on the mounting
bracket. (Illustration 17)
6. Slide the Idler Shaft out of the Idler
Pulley. (Illustration 18)
7. Remove the support pan.
(Illustration 19)
8. Put all parts in the parts cart for
clean up.
8-6 031914

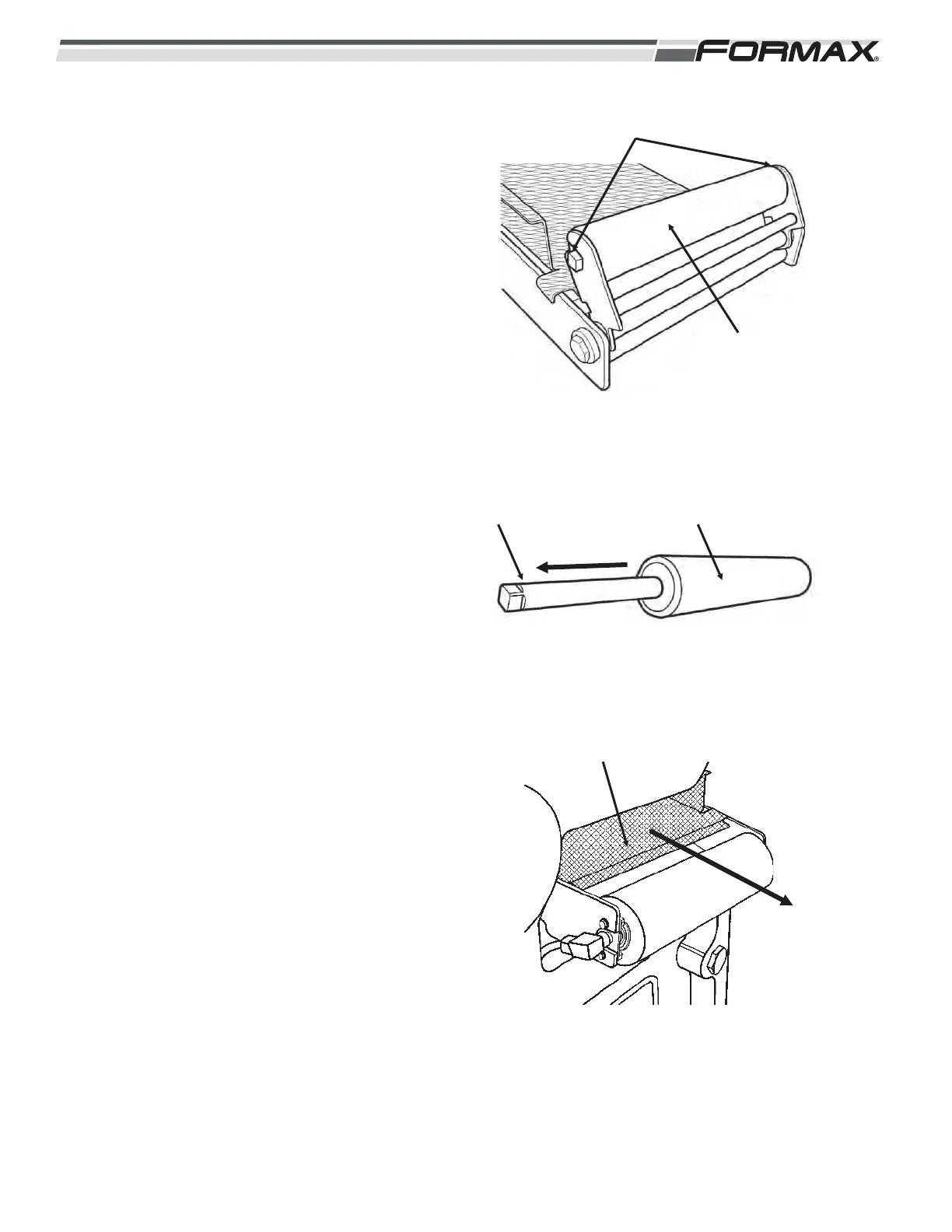

ILLUSTRATION 19
REMOVE PAN
ILLUSTRATION 18
SHAFT IDLER ROLLER
ILLUSTRATION 17
IDLER ROLLER
MOUNTING BRACKETS
