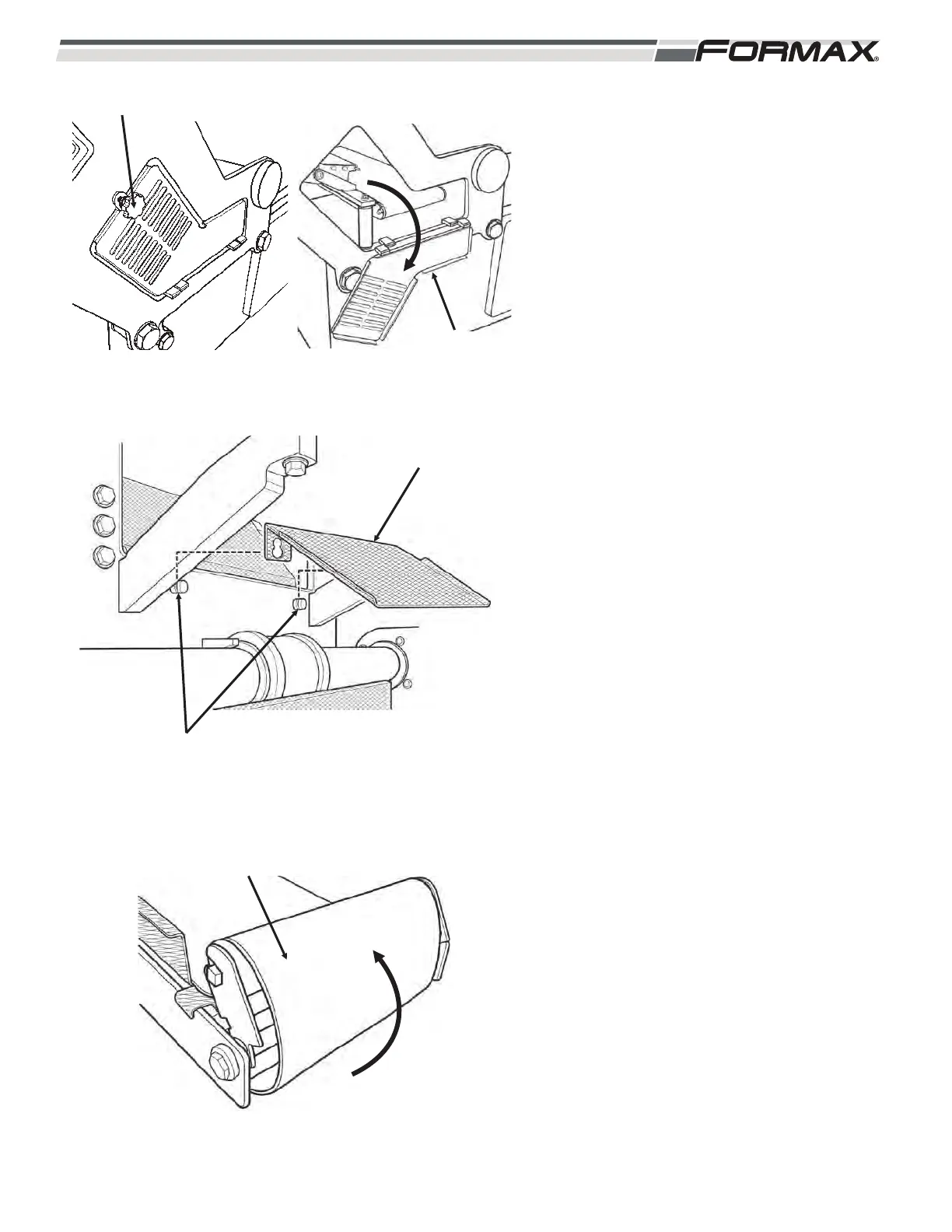

STEP 8 DISASSEMBLE THE DEBRIS
CONVEYOR
1. Loosen knob and open the right side
door. (Illustration 14)
2. Lift and remove the Debris Deflector
from the mounting posts above the
Debris Conveyor. (Illustration 15)
3. Pivot the Idler Pulley “up” to remove
tension from the belt. (Illustration 16)
4. Remove the Debris Conveyor Belt.
(Illustration 16)
031914 8-5
ILLUSTRATION 16
REMOVE BELT
ILLUSTRATION 14
LOOSEN KNOB
OPEN DOOR
ILLUSTRATION 15
DEBRIS
DEFLECTOR
MOUNTING POSTS
