AR19 Terminal Connections:
Terminal 13 - 24 VDC Power Voltage to the “A”
Motor coil windings in the M19
Dynamic Scale Conveyor Stepper
Motor.
Terminal 23 - Common wire to the “A” Motor
coil windings in the M19 Dynamic
Scale Conveyor Stepper Motor.
Terminal 14 - 24 VDC Power Voltage to the “B”
Motor coil windings in the M19
Dynamic Scale Conveyor Stepper
Motor.
Terminal 24 - Common wire to the “B” Motor coil
windings in the M19 Dynamic
Scale Conveyor Stepper Motor.
Terminal 25 - 24 VDC Supply Voltage used to
run the Stepper Motor from the
AR16 Power Supply Module on
wire 303.
Terminal 26 - Common wire for Supply Voltage
used to run the Stepper Motor
from the AR16 Power Supply
Module on wire 302.

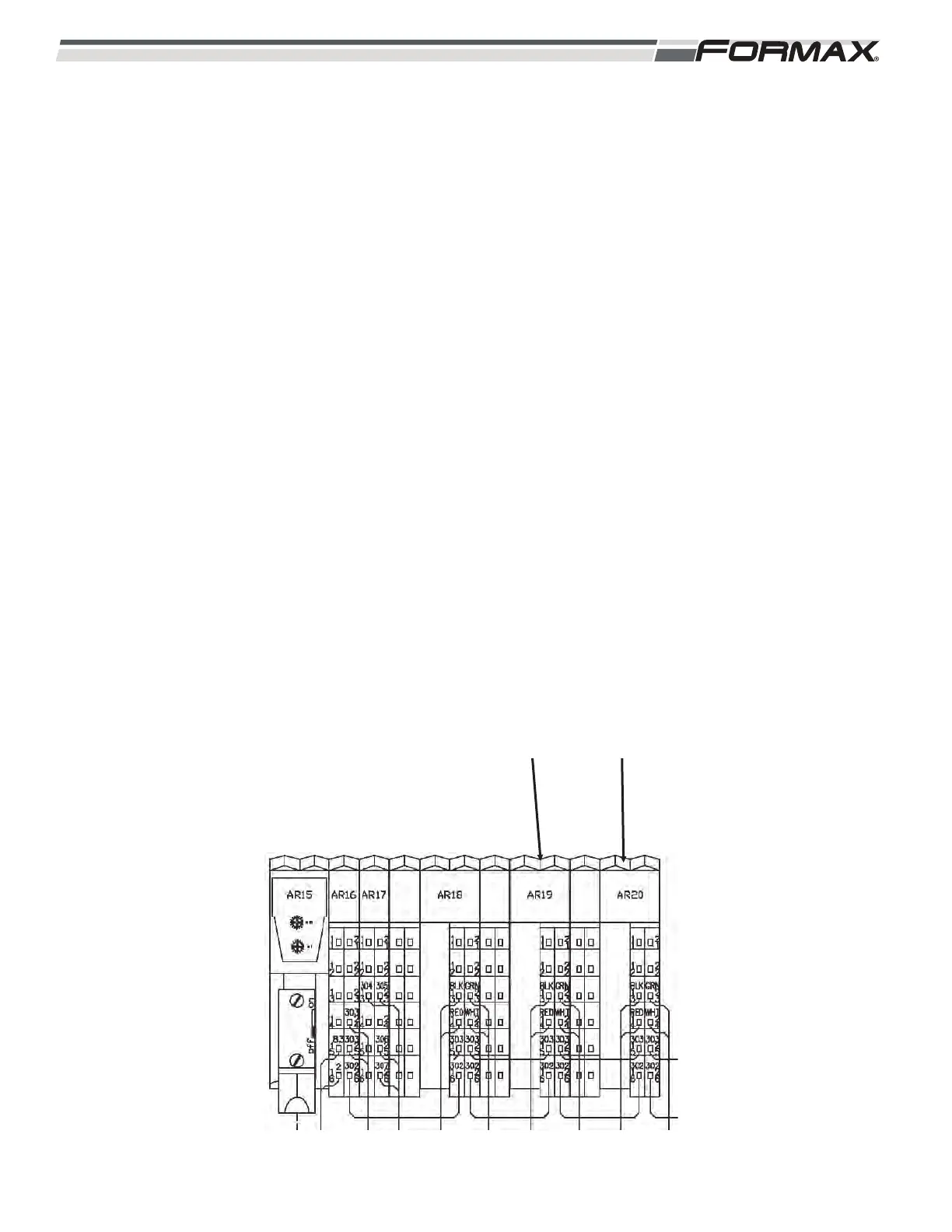

ILLUSTRATION 140
AR19 AR20
