Machine Components
39
Product Overview
2
îš„B-Finisher (optional)
Note • B-Finisher optional. When an explanation refers commonly to B-Finisher and C-Finisher, it is
described as "Finisher".
• The power cord connected to B-Finisher is a connecting cord dedicated to the machine. Do
not connect this cord to any other devices than the machine.

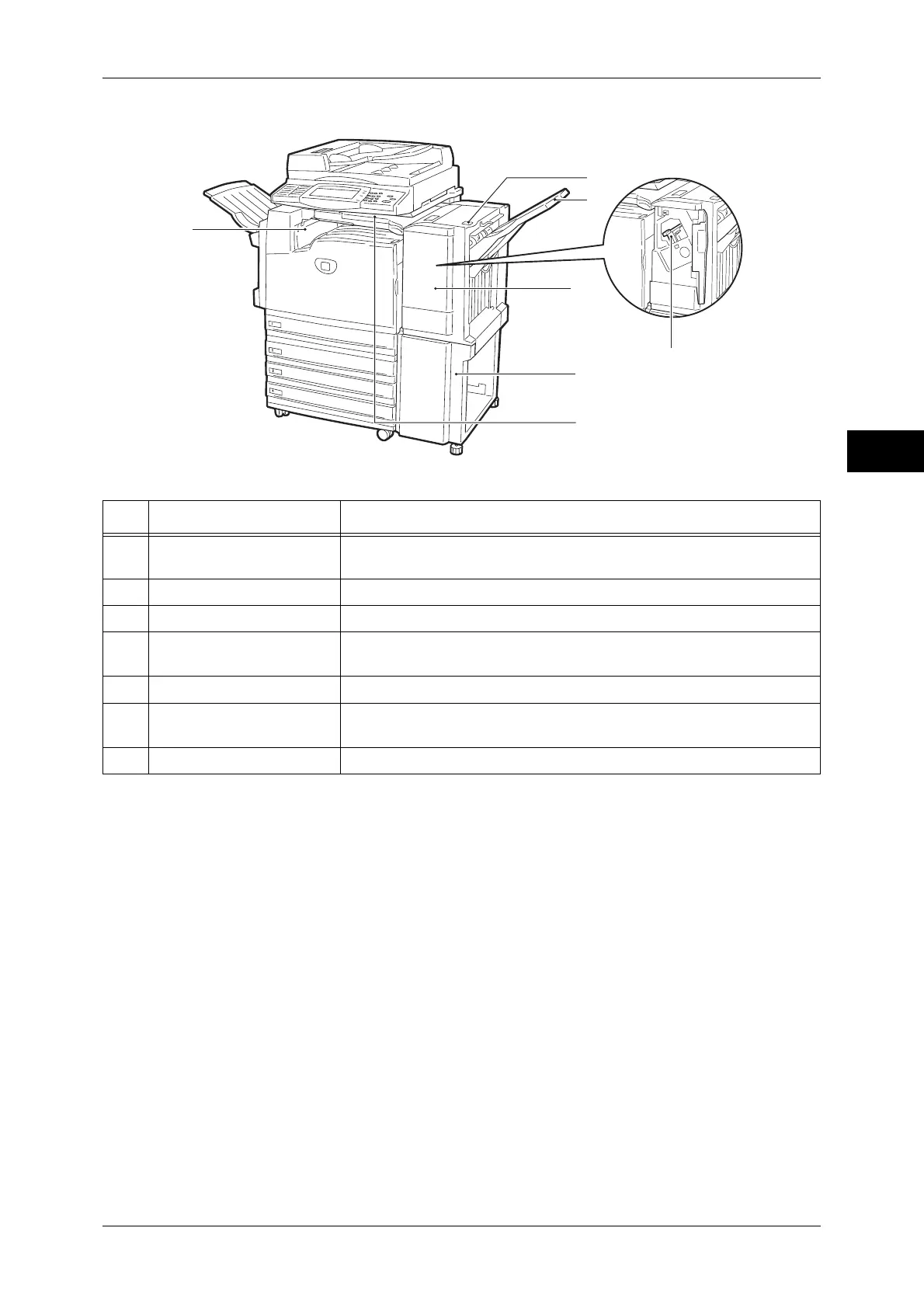

No. Component Function
1 Finisher top cover button Press this button to open the upper cover of the finisher when clearing
paper jams.
2 Finisher tray Stapled documents are delivered.
3 Front cover Open this cover to clear staple jams, or replace staples.
4 Staple cartridge Contains staples. Pull out the cartridge to clear staple jams, or replace
staples.
5 Stand Connects the machine and the finisher.
6 Finisher transport cover Open this cover to clear paper jams. Make sure to move the finisher to
the right before opening the cover.
7 Center tray exit Open this cover to clear paper jams.
6
7
2
5
4
3
1
