VTL Wizard Configuration Wizards
150 U41840-J-Z125-7-76
Step 4: Discover Remote Hosts
1. Click Discover Remote Hosts to list all hosts that are known to the ETERNUS CS800
in the table (see Figure 95).
A host is made known to the ETERNUS CS800 if you enter the host ID on this page, or
if the host logs on to one or more Fibre Channel target ports.
If you do not see the world wide port name (WWPN) of the host, make sure the host is
connected to a Fibre Channel port on the ETERNUS CS800 and click Discover
Remote Hosts again.
The Backpanel Locations section displays a graphical representation of the Fibre
Channel and Ethernet ports as they appear on the rear of the system.
I
An Active status indicates the host is currently logged on to one or more Fibre
Channel target ports.
2. Enter information about the host:
● Remote Host Port Name - WWPN - Enter the World Wide Port Name (WWPN) of
the host.
● Alias - Enter a descriptive alias for the host.Optionally enter a descriptive alias for
the host.
3. Click Apply.
4. (Optional) To discover additional hosts, repeat Steps 1–3.
5. Click Next to continue.

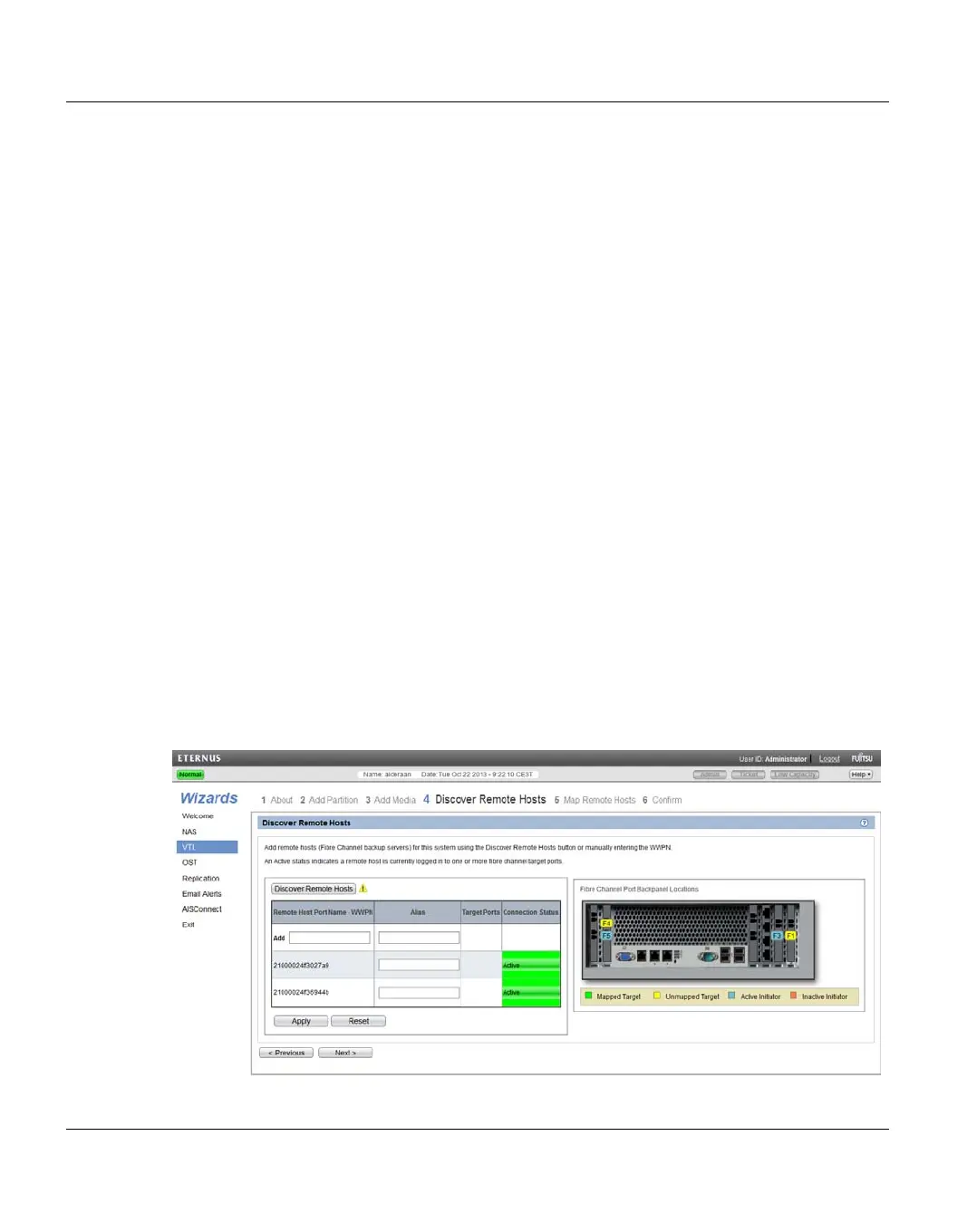

Figure 95: VTL Wizard: Discover Hosts
