For a guideline for mixed batch scanning, refer to Combinations of Standard Paper Sizes in a Mixed Batch
(page 129) in Paper Size (page 128).
HINT

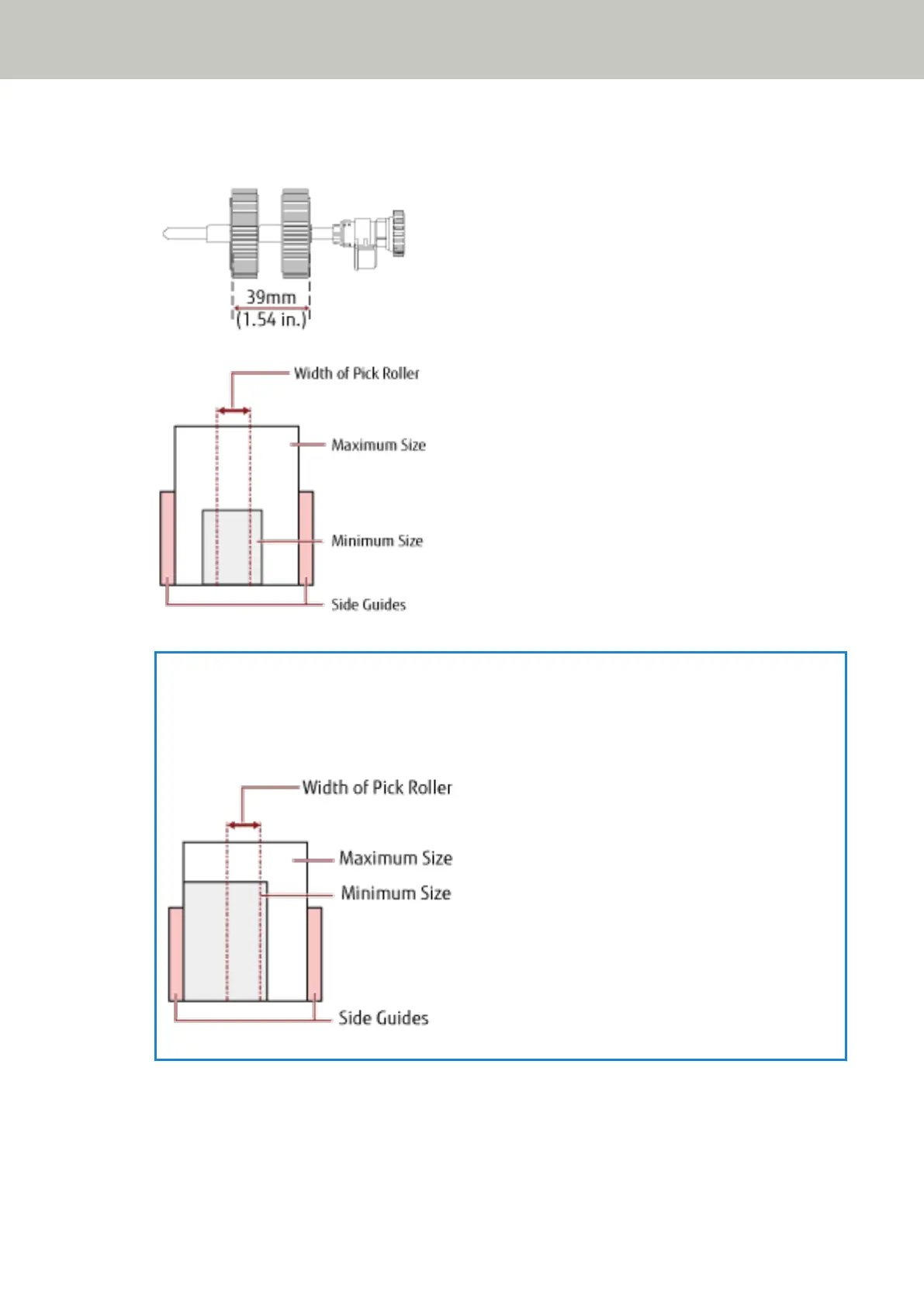

When the smallest document covers the width of the pick roller even when it is loaded towards one side
as shown in the image below, load documents aligned on one side. So that it prevents documents from
skewing when being fed.
Paper Size
When a mixed batch with different sizes is scanned, not feeding the documents straight may cause
troubles such as paper jams or part of the image to appear missing.
It is recommended that you check the scanned images if the documents were fed skewed.
How to Load Documents
128
