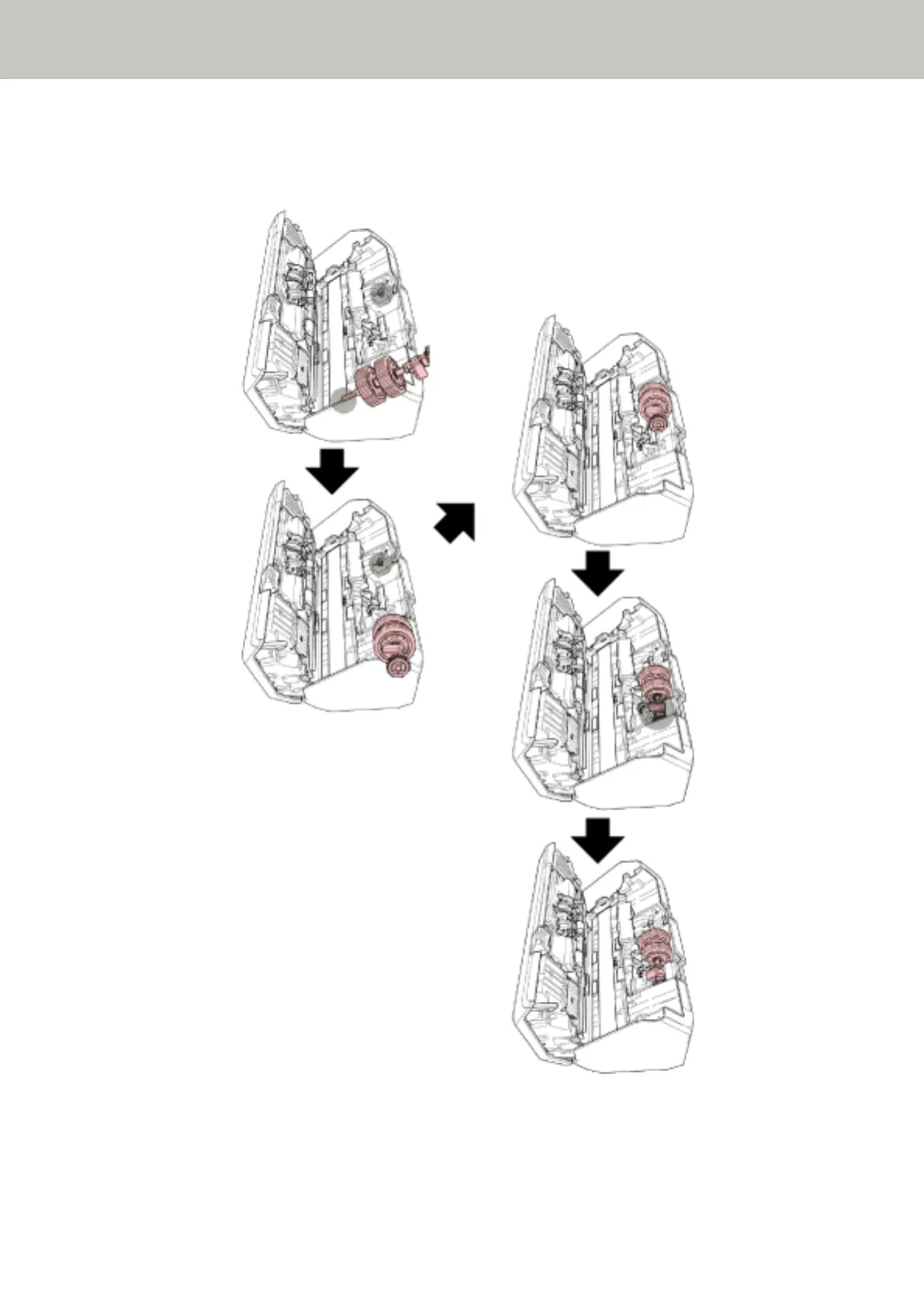

a Hold the bushing on the shaft and insert the other shaft end into the slot. Lower the shaft end
with the bushing to fit the entire shaft in and rotate the bushing from right to left until the
shaft locks in place.
b Close the sheet guide. Make sure that both ends of the sheet guide are locked firmly.
Replacing the Consumables
243
