Removing the defective top system board
–
Remove the heat sink with the CPU from the defective top system board,
see "Removing the heat sink" on page
282.

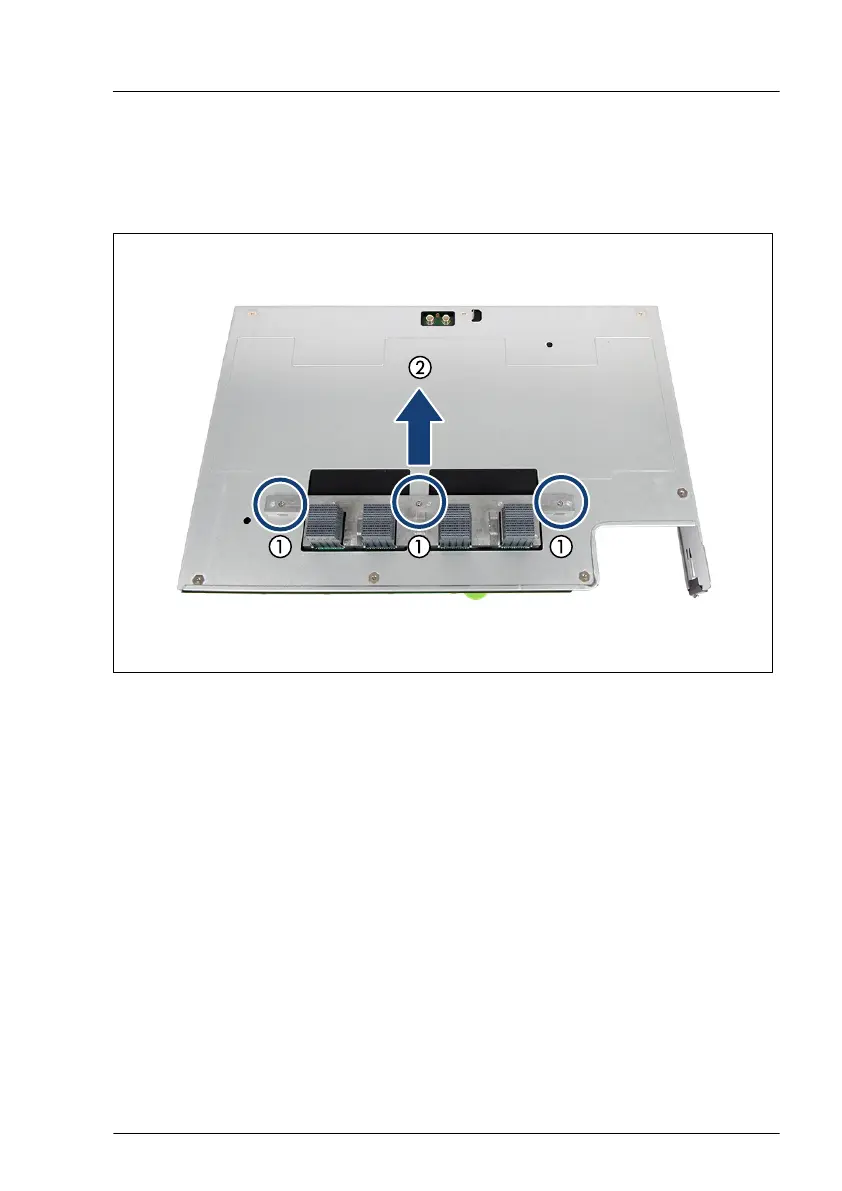

Figure 198: Removing the top system board locking device
▶
T
urn the top system board upside down and remove the three screws (1).
▶
Push the locking device in the direction of the arrow (2).
System board and components
