Fujitsu PRIMERGY RX4770 M5 User Manual

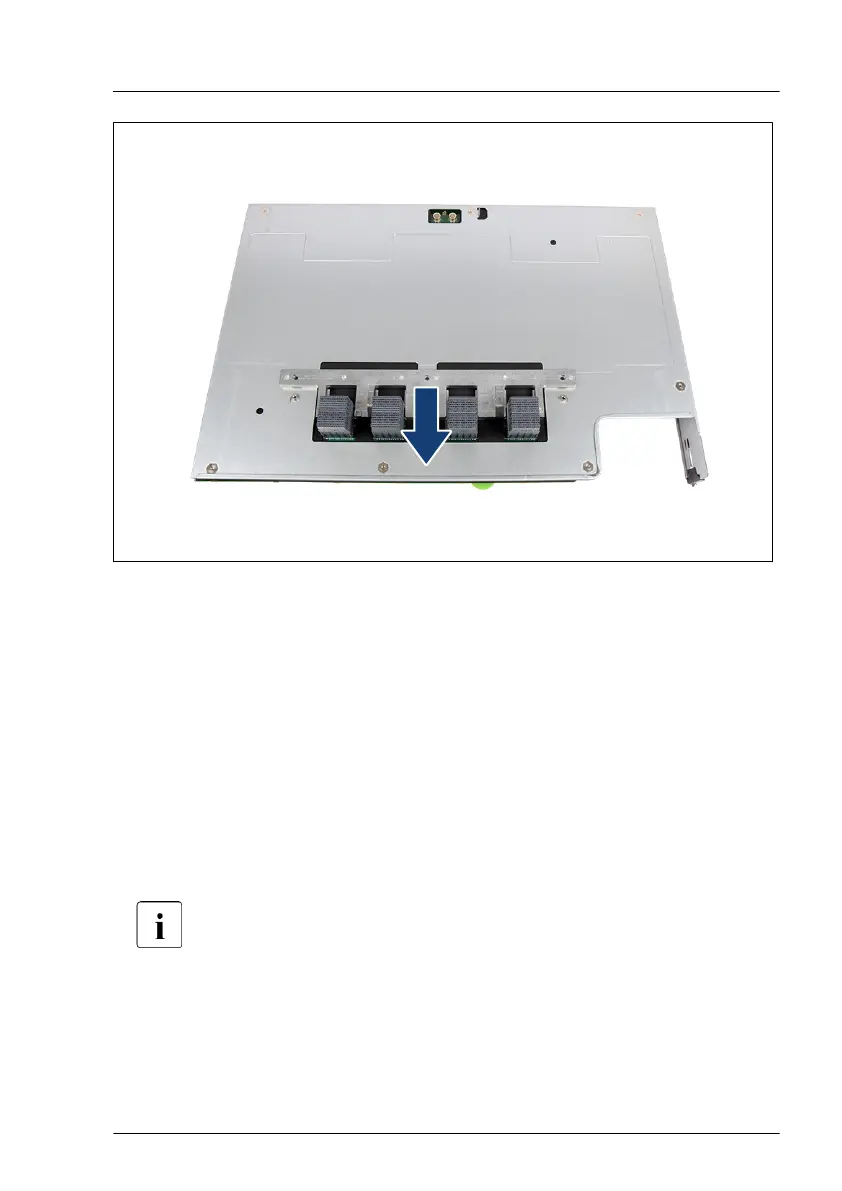

Figure 200: Installing the top system board locking device
▶
T
urn the top system board upside down and push the locking device
between the four connectors (see arrow).
▶
Fasten the three screws and turn the top system board back to the top.
▶
Install the heat sink with the CPU on the new top system board, see
"Installing the CPU and heat sink" on page 287.
Concluding steps
▶
"Installing the top system board holder" on page 79.
▶
Install all memory modules, see "Installing memory modules" on page 257.
Ensure that you install each memory module again in the slot it was
located before the replacement.
▶
Install all riser modules, see "Installing the riser module 3/4 and 6/7" on
page 62.
▶
"Installing the fan cage" on page
71.
System board and components
RX4770 M5 Upgrade and Maintenance Manual 357
