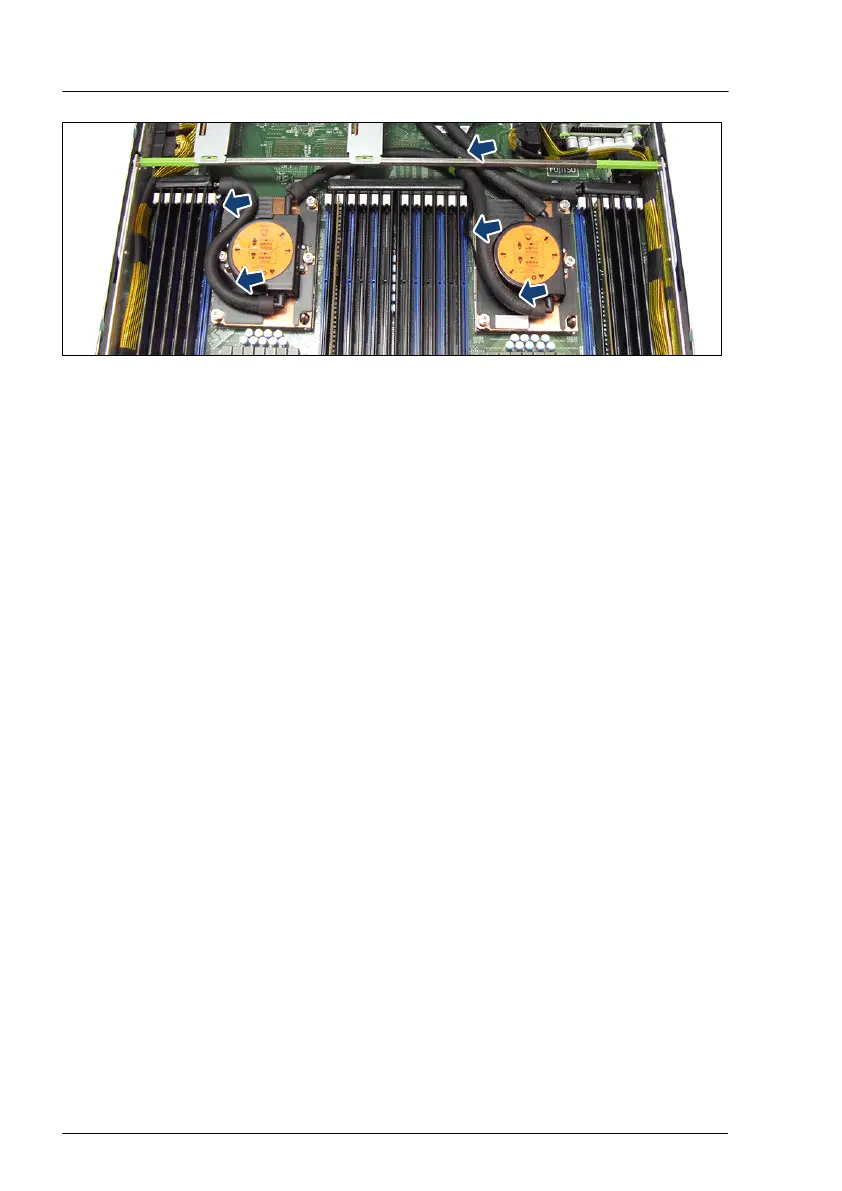

Figure 227: Connecting the control cables and routing under the tubes (top system board)
▶
Run the control cables under the tubes (see arrows).
▶
Connect the two control cables of the pumps for CPU 3 and CPU 4 to the
connectors (3, 4) on the top system board (see circles).
▶
Run the tubes as shown.
▶
If applicable, install the memory spacers, see "Installing a memory spacer"
on page 398.
Liquid cooling (LC)
390 Upgrade and Maintenance Manual RX4770 M5
