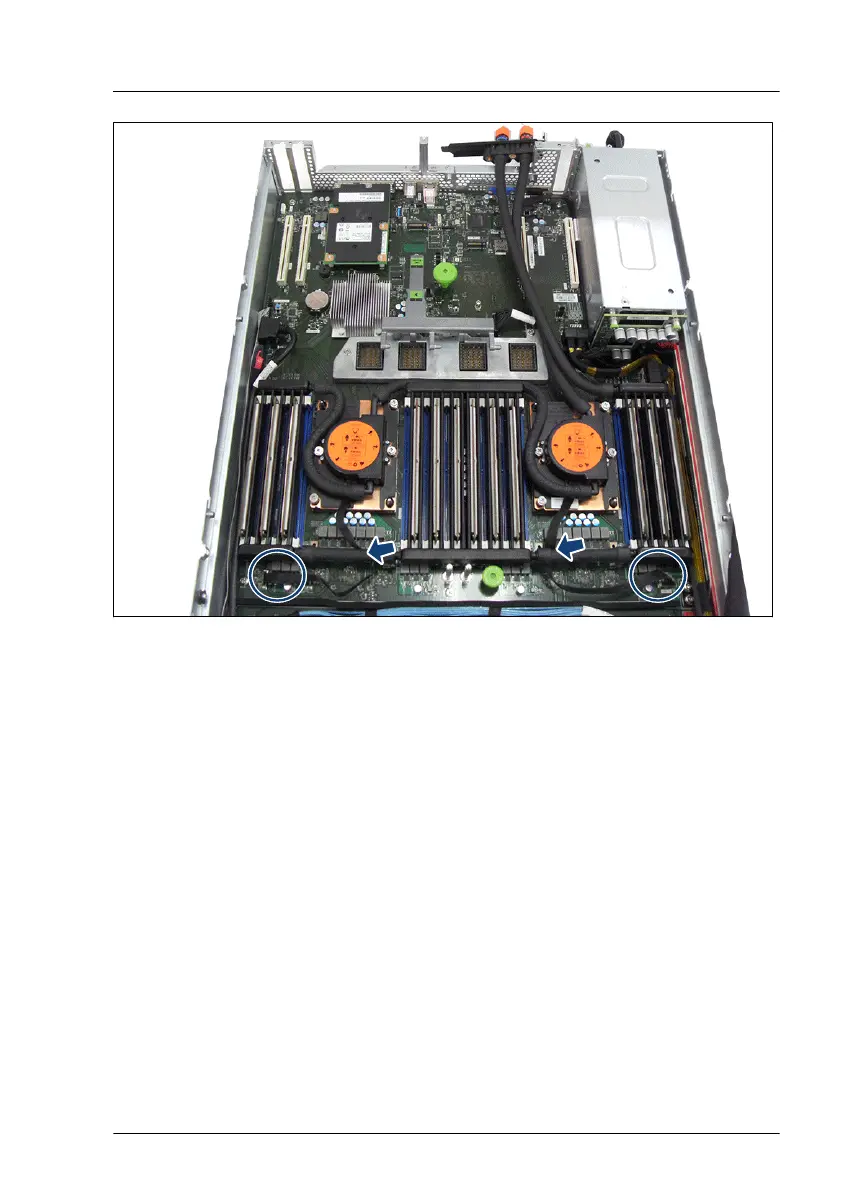

Figure 228: Connecting the control cables and routing under the tubes (bottom system board)
▶
Run the control cables under the tubes (see arrows).
▶
Connect the two control cables of the pumps for CPU 1 and CPU 2 to the
connectors (1, 2) on the bottom system board (see circles).
▶
Run the tubes as shown.
▶
If applicable, install the memory spacers, see "Installing a memory spacer"
on page
398.
Liquid cooling (LC)
RX4770 M5 Upgrade and Maintenance Manual 391
