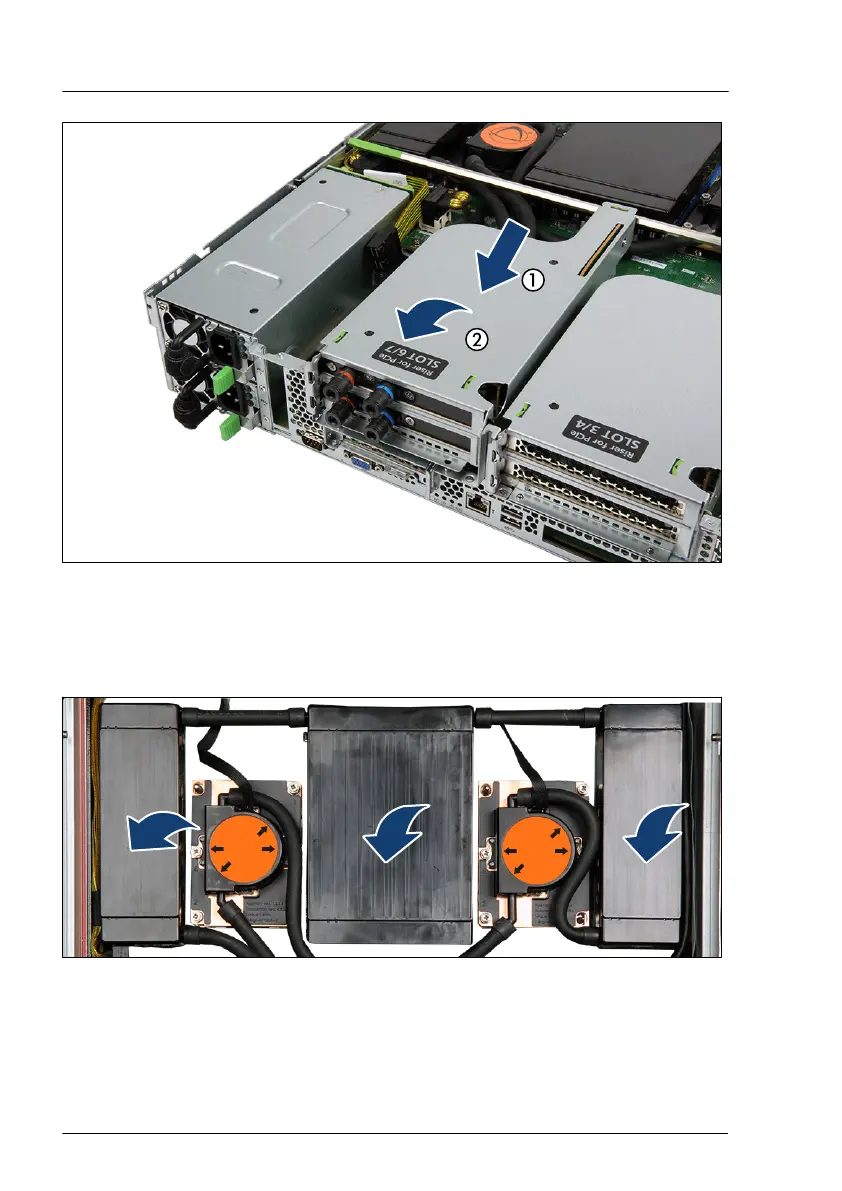

Figure 229: Installing the slot bracket with the tubes
▶
Push the slot bracket with the tubes in the direction of the arrow (1).
▶
Install the riser module (2) to PCIe slot 6/7.
2
3
1
4
2
3
1
4
Figure 230: Installing the memory covers
▶
Position the memory covers over the memory modules, and press them
carefully down.
Liquid cooling (LC)
392 Upgrade and Maintenance Manual RX4770 M5
