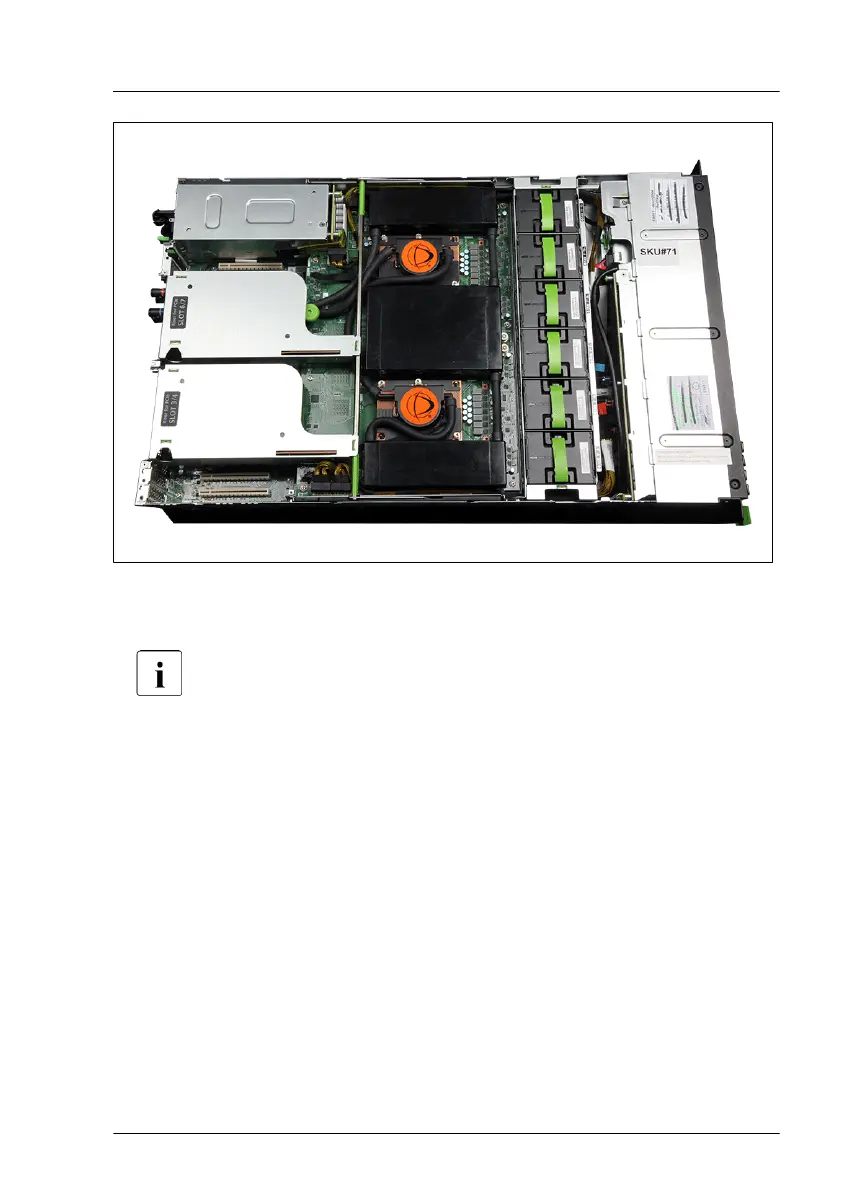

Figure 231: LC kit completely installed
▶
If applicable, remove the two orange protective caps from the tubes.
Keep the protective caps for future use.
▶
If you have replaced the LC device, install the two orange protective caps
onto the quick connectors of the defective LC device, see Figure 207,
position 9.
Concluding steps
For CPU1 and CPU2 (bottom system board)
▶
"Installing the top system board holder" on page
79.
▶
"Installing the riser module 3/4 and 6/7" on page 62.
▶
"Installing the fan cage" on page 71.
▶
"Reassembling" on page 53.
▶
"Installing the server in the rack" on page 55.
Liquid cooling (LC)
RX4770 M5 Upgrade and Maintenance Manual 393
