IRECTION 5344303-100, REVISION 3 VIVID P3 SERVICE MANUAL
Chapter 4 Functional Checks 4-9
4-3-5-3 Monitor Display

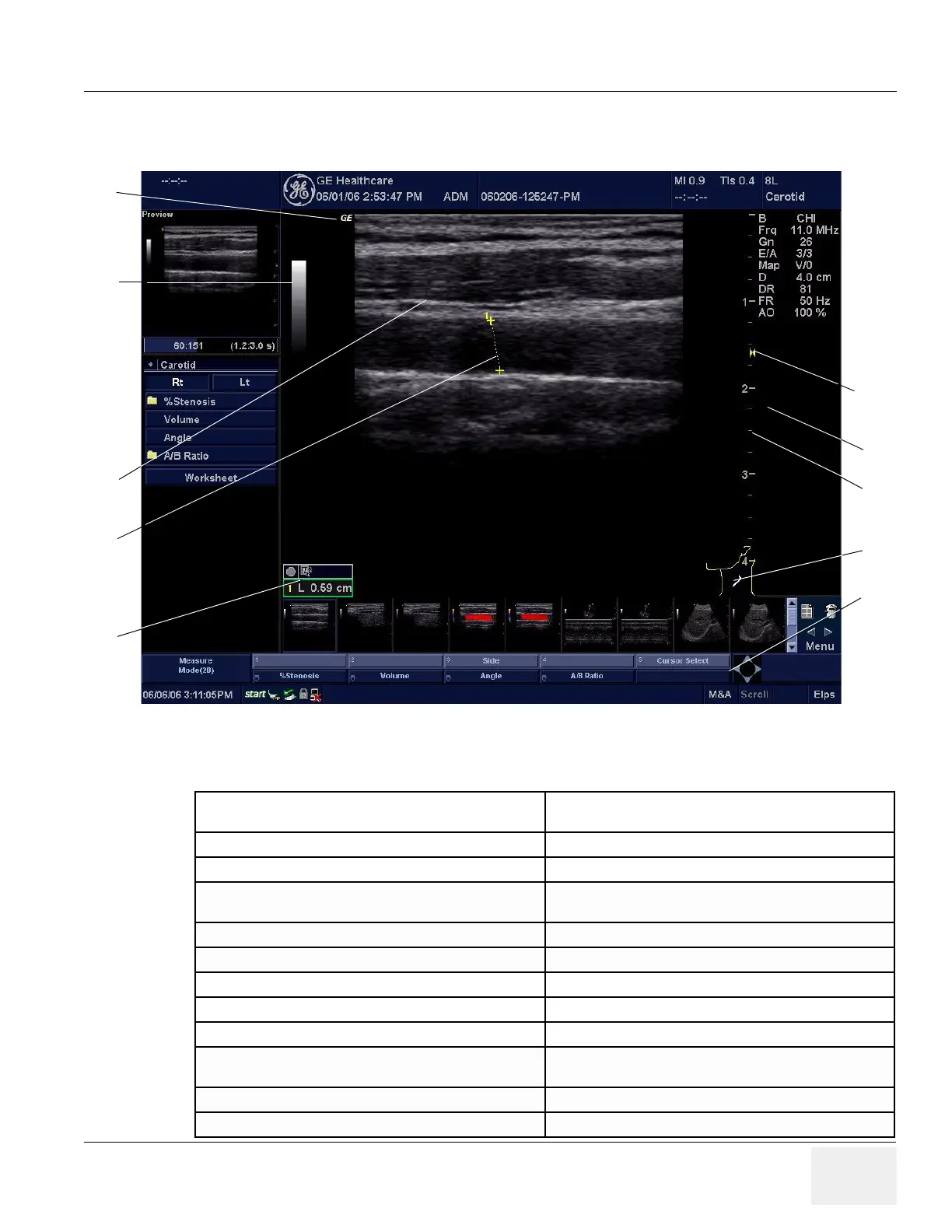

Figure 4-7 Monitor Display Tour
Table 4-2 Monitor Display Features
1. Institution/Hospital Name, Date, Time, Operator
Identification, system status (real-time of frozen).
13. Imaging Parameters by Mode (current mode highlighted).
2. Patient Name, Patient Identification. 14. Focal Zone.
3. Acoustic Output Readout, 15. TGC (not shown on the image).
4. GE Symbol: Probe Orientation Marker. Coincides with a
probe orientation marking on the probe.
16. Body Pattern.
5. Image Preview. 17. Depth Scale.
6. Gray/Color Bar. 18. SoftMenu
7. Cine Gauge. 19. Caps Lock: On/Off.
8. Measurement Summary Window. 20. Start menu icon.
9. Image. 21. Network icon
10. Measurement. 22. Trackball Functionality Status: Scroll, M&A (Measurement
and Analysis), Position, Size, Scan Area Width and Tilt.
11. Results Window. 23. Active key for Depth/Zoom/Ellipse
12. Probe Identifier. Exam Study.
4
5
6
7
8
9
10
11
19
20
21
18
12
16
17
15
14
13
22
12 3
23
