8-70 Section 8-7 - RX Board (FRU P/N: 5315027)
5) Remove the two flexi cable from TX board as shown below in Figure 8-61 on page 8-70

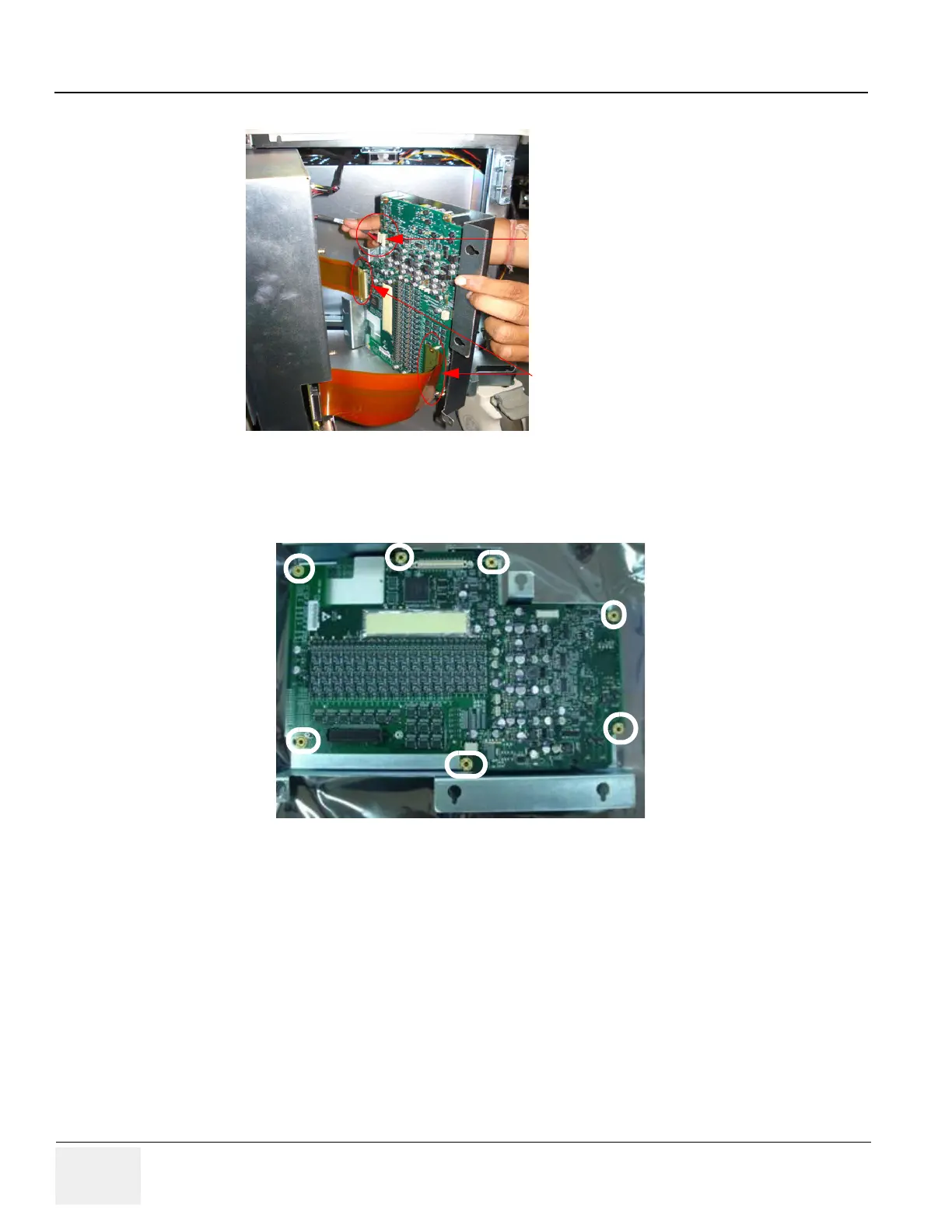

Figure 8-61 Removing TX conn board cable & Flexi cable
6) Remove the Screws fixed in Tx Pwa & seperate the RX PWA from TX PWA as shown in Figure 8-62
on page 8-70
Figure 8-62 Tx-RX combined
8-7-0-6 Mounting procedure
1.) Install the new parts in the reverse order of removal.
