GE HEALTHCARE PROPRIETARY TO GE
D
IRECTION 5344303-100, REVISION 3 VIVID P3 SERVICE MANUAL
8-46 Section 8-4 - Mechanicals
8-4-9 Left EMI Cover (Part of EMI Cover Assy FRU P/N: 5315111)
This is a description on how to remove and replace the Left EMI Cover. (P/N : 5308964)
8-4-9-1 Tools
• Common Phillips screwdrivers
8-4-9-2 FRU BOM. This FRU Kit P/N:5308964 consists of following parts.
8-4-9-3 Needed Manpower
• 1 person, 15 minutes
8-4-9-4 Preparations
• Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system.
8-4-9-5 Removal Procedure
1) Remove Left cover. Refer section 8-4-1 on page 26 for details on how to remove Left cover.
3) Eight screws to be unfastened of LH-side EMI cover of Vivid P3 system.
Refer Figure 8-38 on page 8-46
2) Remove LH-side EMI cover. Refer Figure 8-38 on page 8-46 for details on how to remove Left cover.

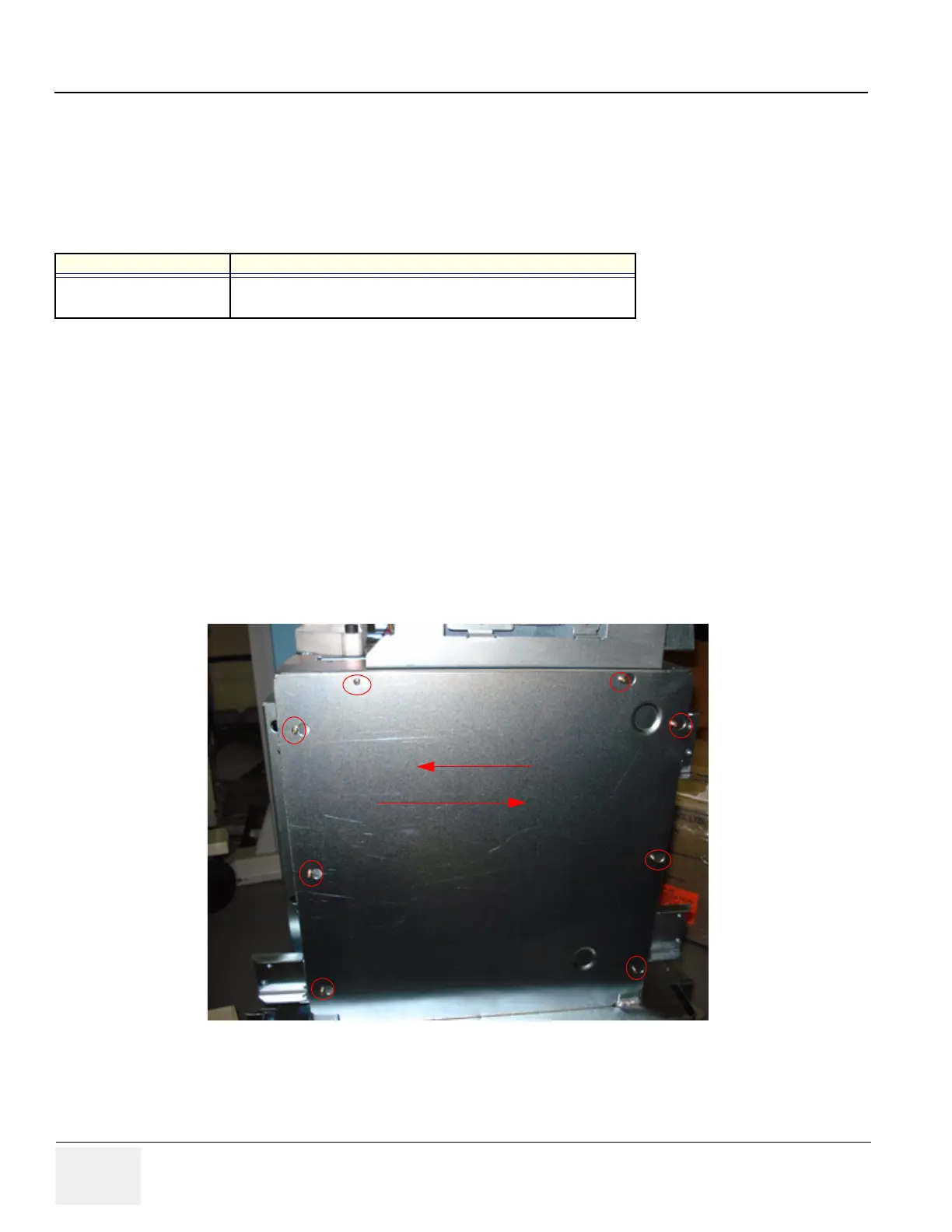

Figure 8-38 LH-side EMI cover
PART NO DESCRIPTION
5308964 LH EMI cover
2334842 Fastener- M3 X 6 ECO-FIX
1
2
3
4
Slide this way to remove the cover
Slide this way to reinstall the cover
5
6
7
8
To Next Page
