IRECTION 5344303-100, REVISION 3 VIVID P3 SERVICE MANUAL
Chapter 8 Replacement Procedures 8-75
Section 8-8 Power Block
8-8-1 Transformer Assembly (FRU No. 5196448) Cable Guard Clamp (FRU
No:5219747)
This is a description on how to remove and replace the Transformer Assy.
8-8-1-1 Tools
• Common Phillips screwdrivers
8-8-1-2 Needed Manpower
• 1 persons, 15 minutes
8-8-1-3 Preparations
• Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system.
NOTE: For 110V System Configuration use 110V wired Plug (with 3 Amps Fuse).
NOTE: For 230V System Configuration use 230V Wired plug (With 2 Amps Fuse).
NOTE: To replace Cable Guard Clamp Donot remove the transformer,remove power cord and press
the cable clamp from both the sides the clamp will come out side.
NOTE: Before Replacing the transformer remove the Labels stuck on the old transformer and stuck on
new transformer.
8-8-1-4 Removal Procedure
1) Remove rear cover. Refer section 8-4-3 on page 30
2) Unscrew two screws (a,b) as marked in Figure 8-66 on page 8-75
3) Remove GND cable (which ever is connected near to “a” ) Refer Figure 8-66 on page 8-75

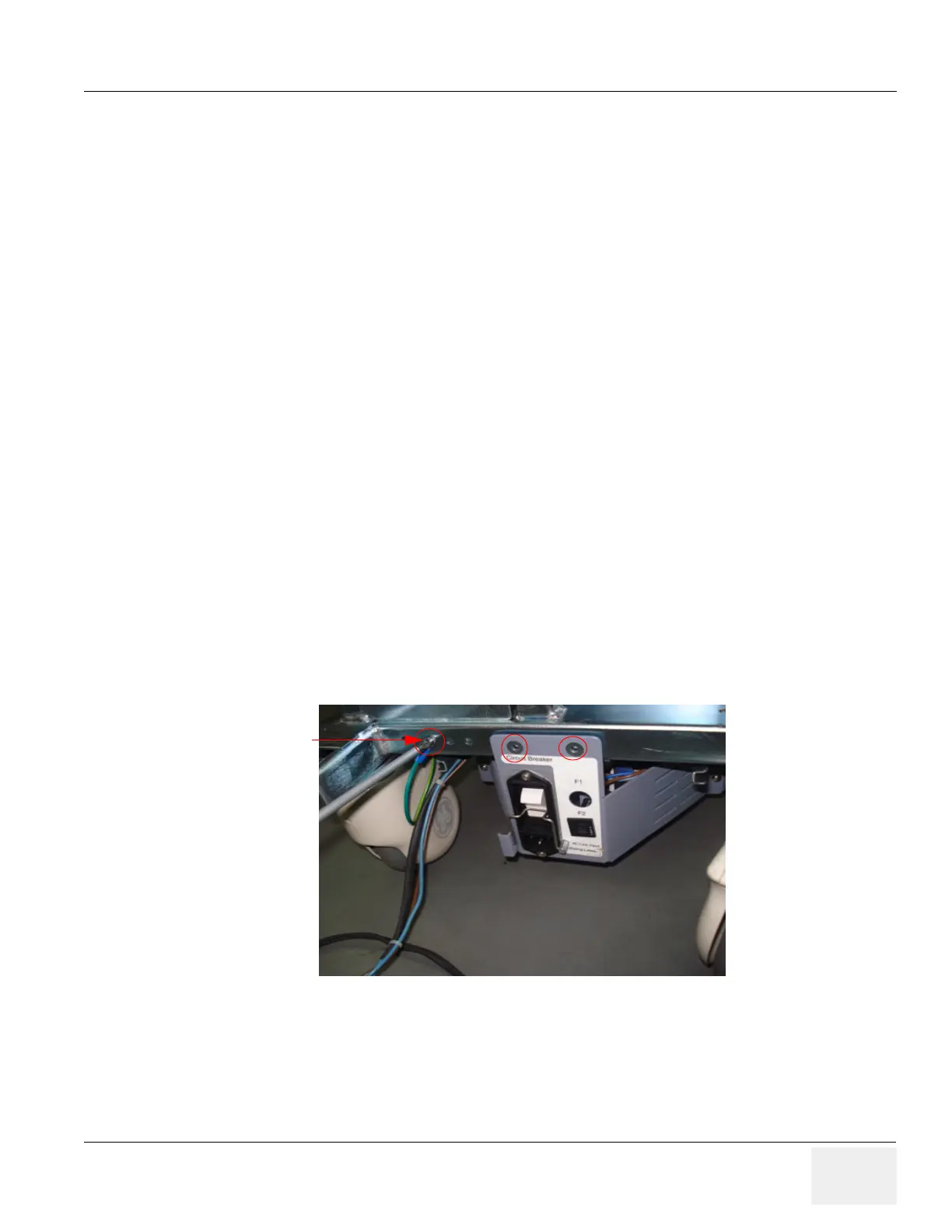

Figure 8-66 Removing Transformer Assembly
a
b
GND
cable
To Next Page
