GE HEALTHCARE PROPRIETARY TO GE
D
IRECTION 5344303-100, REVISION 3 VIVID P3 SERVICE MANUAL
8-24 Section 8-3 - Keyboard Rear Cover Assy (FRU P/N: 5315122 )
8-3-3 Keyboard Knob Set (FRU P/N: 5315502 ) & Encoder set (FRU P/N: 5262796)
This is a description on how to remove and replace the Keyboard knob set Assembly.
8-3-3-1 Tools
• Common Torx screwdriver
8-3-3-2 FRU BOM For Keyboard Knob set. This FRU Kit P/N:5315502 consists of following parts.
8-3-3-3 FRU BOM For Encoder set. This FRU Kit P/N:5262796 consists of following parts.
NOTE: B Mode Gain Knob Encoder is not a FRU.
8-3-3-4 Needed Manpower
• 1 person, 15 minutes
8-3-3-5 Preparations
• Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system.
8-3-3-6 Removal procedure
1) Pull the knobs out with hands by slightly pushing it up from the bottom edge. Refer Figure 8-20 on
page 8-24

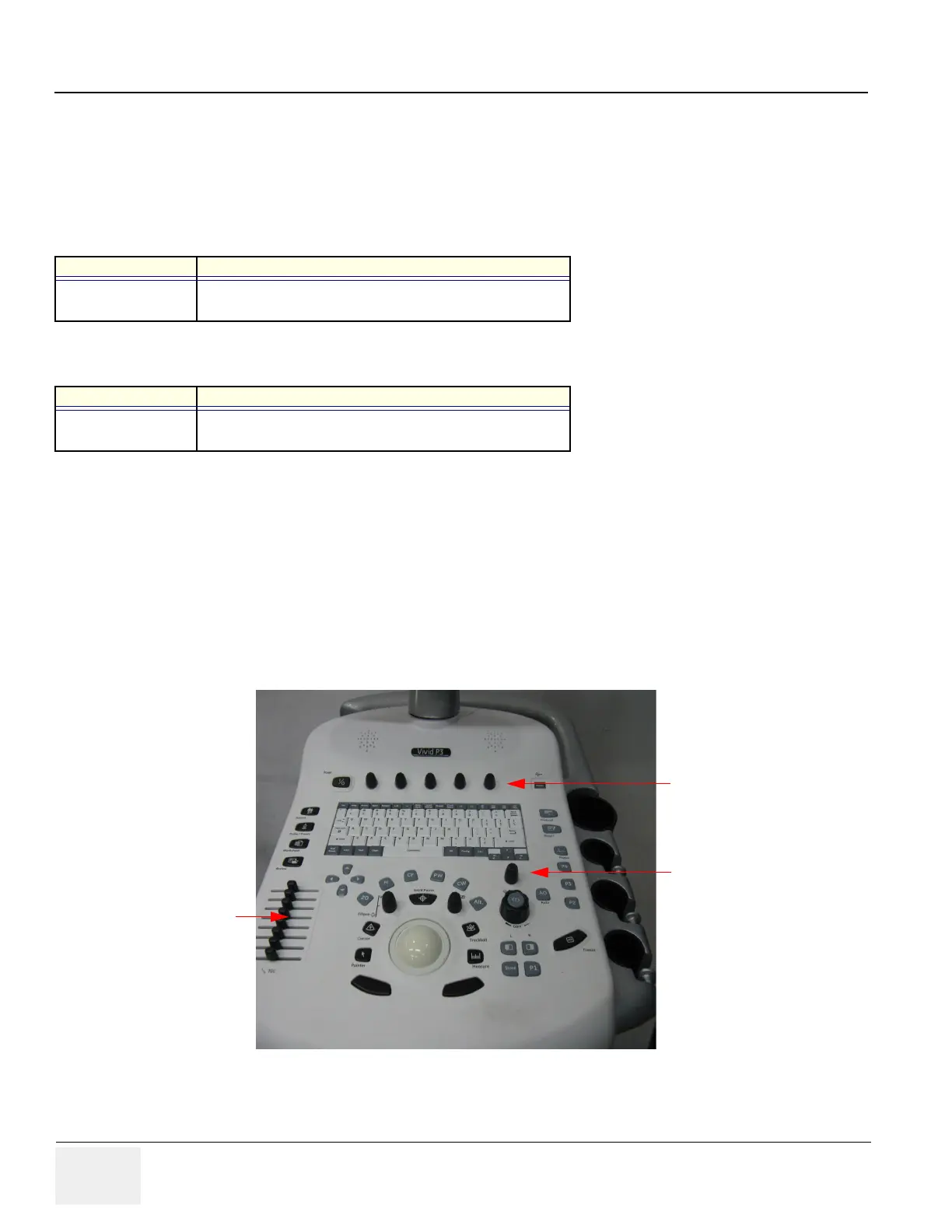

Figure 8-20 Keyboard knob set
PART NO DESCRIPTION
5270371 TGC_Knob_Lakshya
5168612 Depth_Knob
PART NO DESCRIPTION
5266273 Encoder PCB Asm
5268278 Encoder PCB 15 pin interface cable
TGC Knob
Encoder Knob
Depth Knob
To Next Page
