GE HEALTHCARE PROPRIETARY TO GE
D
IRECTION 5344303-100, REVISION 3 VIVID P3 SERVICE MANUAL
Chapter 8 Replacement Procedures 8-31

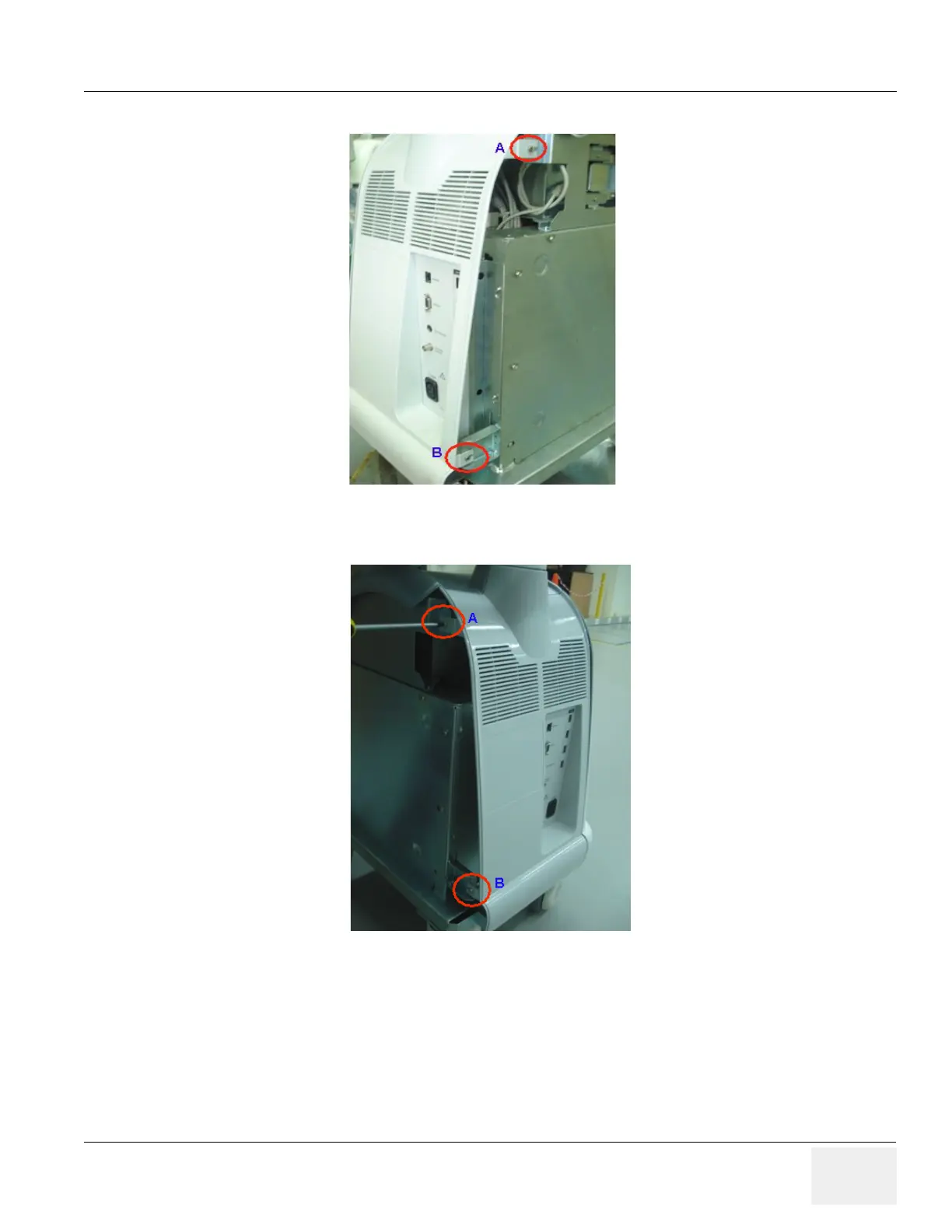

5) Loosen the two screws (A,B) LH-side from the system. Refer Figure 8-25 on page 8-31
Figure 8-25 Removing screws of rear cover
6) Loosen Rear cover RH-side from the system. Refer Figure 8-26 on page 8-31
Figure 8-26 Removing screws of rear cover
8-4-3-6 Mounting procedure
1.) Install the new parts in the reverse order of removal
