8-68 Section 8-6 - Rear Panel Assy (110V/ 220V FRU P/N: 5313708)

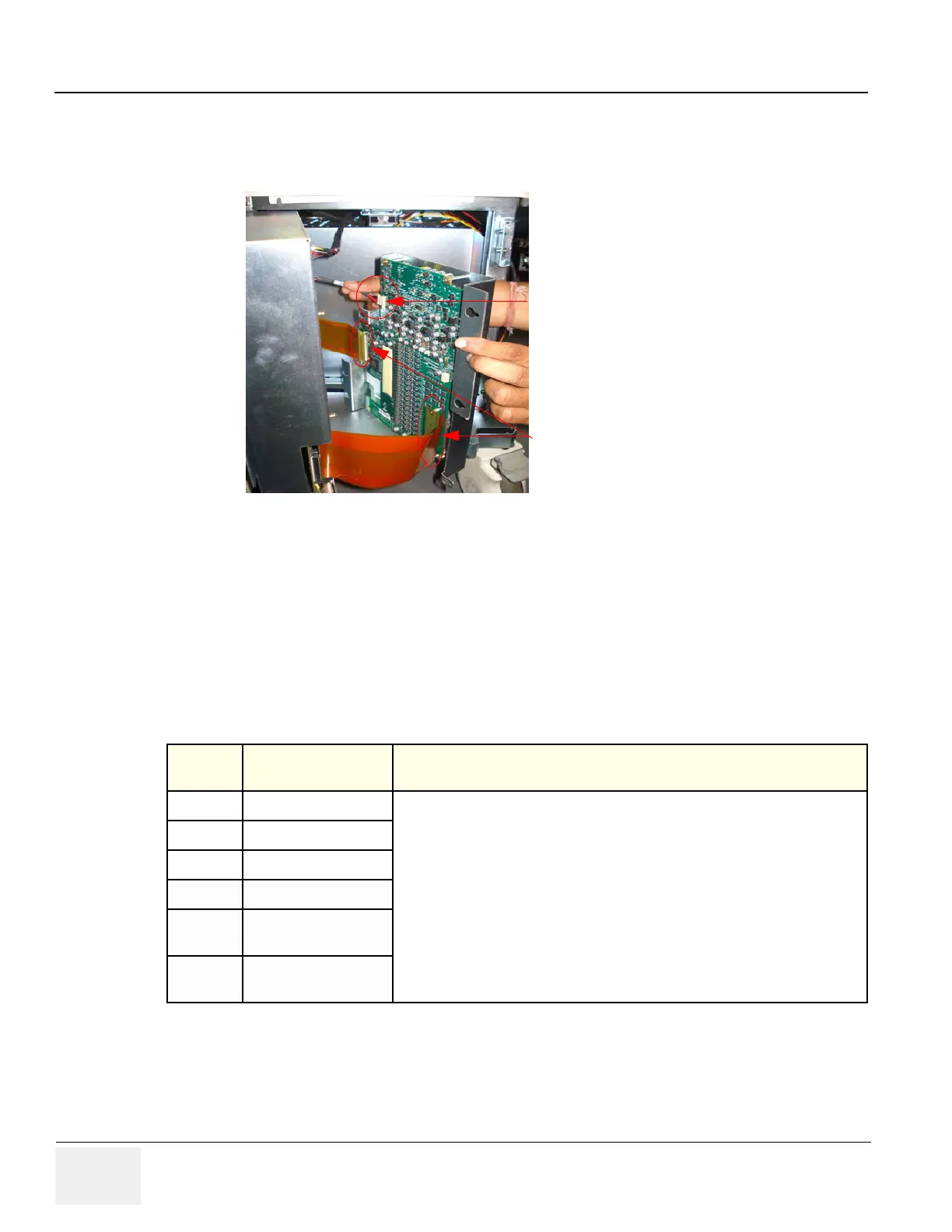

3) Pull the Tx board from the system as shown below
4) Remove the Tx conn board cable as shown in the figure below
5) Remove the two flexi cable from TX board as shown below
6) To Remove the Flexi cable remove one side from connector board and other side on TX PWA.
7) To remove the TX, remove the 7 fasteners holding TX to RX as shown in Figure 8-62 on page 8-70
8-6-3-6 Mounting procedure
1.) Install the new parts in the reverse order of removal.
8-6-3-7 Functional Checkout Procedure
See
Section
Functional Test Debrief Script
4-3-1 Power On/Boot Up
Service Manual Direction 5344303-100, Section 8-6-3. Equipment passes all required
tests and is ready for use.
4-3-2 Power Off/ Shutdown
4-3-6 B Mode Checks
4-3-7 M Mode Controls
4-3-8
Color Flow Mode
Checks
4-3-9
Doppler Mode
Checks
Tx conn board cable
Flexi cable
